Brand: YATO

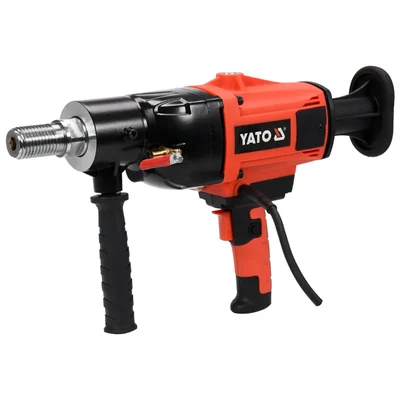

Yato 180mm 2200 Watt Variable Speed, 1-1/4" UNC Thread Diamond Core Drill Machine, 0-1200 RPM (YT-81980)
SKU: TI-Y1-54949
Delivery By: Jan 16 - Jan 18
MRP : ₹22000 ₹18790
15% OFF!
Delivery By: Jan 16 - Jan 18 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹18790 (Including GST)
MRP : ₹22000
15% OFF!
Get Extra ₹282 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Yato 180mm 2200 Watt Variable Speed, 1-1/4" UNC Thread Diamond Core Drill Machine, 0-1200 RPM
Country of origin: China
Specifications
- Brand: YATO
- Weight (Approx.) : 12 kg
- Drilling Capacity : 180 mm
- Model : YT-81980
- Power Input : 2200 Watt
- Voltage/Frequency : 230 V AC / 50 Hz
- No-load Speed : 0-1200 RPM
- Max. Drilling Diameter : 30-180mm (In Concrete)
- Chuck/Holder Size : 1-1/4" UNC
- Water Outlet Diameter : 1/4" 96.3mm)
- Drill Bit Length : 150-450mm
- Water Cooling : Yes
- Max Inlet Water Pressure : 0.5 MPa
Description
The Yato YT-81980 is a professional diamond core drilling machine with a 2200 W motor, designed for wet drilling in materials like concrete and natural stone. It has a maximum drilling diameter of 180 mm and comes with a stand.
Features
:- Powerful Motor : Equipped with a 2200 W input power motor, suitable for heavy-duty tasks.
- Variable Speed : Operates at a single no-load speed of 0–1200 RPM.
- Wide Drilling Range : Allows drilling holes with diameters ranging from 30 mm to 180 mm (or 12 mm minimum in some sources).
- Safety Clutch : Features a mechanical centrifugal clutch that ensures smooth operation and protects the operator by preventing jerks or kickbacks when hitting rebar in concrete.
- Water Cooling System : Includes a 1/4" (6.3 mm) fitting for connecting a water hose, enabling wet drilling for efficient, safe work and extended diamond bit life.
- Versatile Use : Can be operated as a handheld drill (with an additional handle and rear bracket) or fixed to a stand with a gear mechanism, which allows for effortless drilling in hard materials.
- Standard Chuck/Holder : Uses a standard 1 1/4" UNC spindle thread, compatible with most commercially available core drill bits.
- Robust Construction : Made with corrosion-resistant materials and has a sturdy build, weighing 12 kg.
Accessories
:- Drilling Rig (Main Machine)
- Stand (Tripod)
- Additional Handle With Clamp
- Rear Bracket
Applications
:The Yato YT-81980 is designed for professional use in construction and renovation projects. It is ideal for applications such as :
- Cutting electrical boxes in reinforced concrete.
- Drilling through ceilings for pipes and cables.
- Installing cable routes or ventilation ducts.
- Drilling in various dense building materials, including stone, concrete, brickwork, porcelain, tiles, and granite
