Brand: Yiking

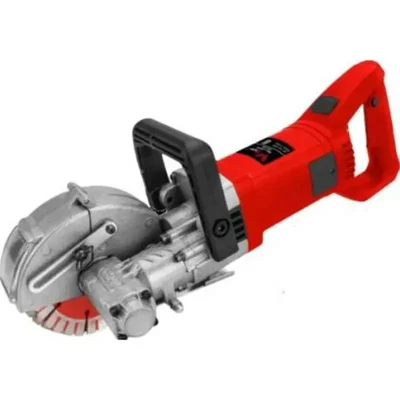

Yiking 4000W 6500 RPM 5-Inch Wall Chaser Marble Cutter (125A)
SKU: TI-Y4-54744
Delivery By: Jan 18 - Jan 20
MRP : ₹10000 ₹8252
17% OFF!
Delivery By: Jan 18 - Jan 20 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹8252 (Including GST)
MRP : ₹10000
17% OFF!
Get Extra ₹124 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
4000W electric wall chaser (5-inch 5-blade, 6500 RPM, 41x42mm cut) with infrared guidance, dust cover, adjustable handles for professional stone chasing
Country of origin: China
Specifications
- Brand: Yiking
- Weight (Approx.) : 14.3 kg
- No-Load Speed : 6500 rpm
- Power Input: 4000W
- Voltage: 220V single phase
- Blade Diameter: 5 inch (127mm)
- Number of Blades: 5 pieces
- Max Cutting Depth: 41mm
- Max Cutting Width: 42mm
- Dimensions: 33cm L x 57cm W x 42cm H
- Motor Type: Pure copper armature winding
- Cutting Material: Stone, marble, concrete, brick
- Guidance System: Infrared laser positioning
- Handle System: Dual angle-adjustable ergonomic grips
- Dust Control: Movable protective cover
Description
The Yiking 4000W 5-Inch Heavy Duty Electric Wall Chaser Marble Cutter delivers professional stone cutting performance with 6500 RPM no-load speed and dual 41mm depth/42mm width capacity. Featuring infrared precision guidance, adjustable dust-proof cover, pure copper motor, and angle-adjustable ergonomic handles, this 14.3kg machine provides one-time molding for clean wall chases. Equipped with 5 blades for extended operation, it handles stone, marble, and concrete with industrial efficiency.
Features
:- 4000W Pure Copper Motor: High-torque power delivery maintains 6500 RPM under load for continuous heavy-duty stone cutting
- Infrared Precision Guidance: Laser positioning system ensures accurate straight cuts and perfect chase alignment
- 5-Inch 5-Blade System: Multi-blade configuration achieves 42mm maximum width in single pass for electrical/plumbing chases
- Adjustable Dust Protection Cover: Movable shield blocks 95% airborne particles; positions for zero dead-angle slotting
- Dual Ergonomic Handles: Both handles independently angle-adjustable (0-45°) for optimal control and reduced vibration
- 41mm Maximum Depth Capacity: Single-pass penetration through brick, concrete, and stone walls up to 4cm deep
- One-Time Molding Technology: Simultaneous multi-blade cutting produces clean rectangular channels without recutting
- Easy Installation Design: Tool-free blade spacing adjustment and quick-release blade guards for field maintenance
Accessories
:- 5 x 5-inch cutting blades (installed)
- 1 x Infrared laser module (pre-aligned)
- 1 x Adjustable dust extraction cover
- 2 x Ergonomic angle-adjustable handles
- 1 x Spanner set for blade changes
- 1 x Carbon brush pair (spare)
Applications
:- Electrical conduit wall chasing
- Plumbing pipe channel cutting
- HVAC duct installation grooves
- Cable trunking rectangular slots
- Wall-mounted AC drain line channels
- Security camera wiring chases
- LED lighting recessed tracks
- Fire alarm cable routing
- Waterproofing membrane grooves
- Industrial pipe insulation slots
Usage
:- Preparation: Secure work area, wear PPE (goggles, gloves, dust mask), mark chase line with chalk and verify with infrared laser alignment
- Installation: Mount 5 blades on arbor with included spanner set; adjust spacing for 14-42mm width using quick-release guards
- Handle Setup: Adjust both ergonomic handles to optimal angle (0-45°) based on wall position and operator height
- Positioning: Position dust cover to maximum coverage; activate infrared guide and align cutting line precisely
- Power On: Connect to 220V outlet, squeeze trigger to start 6500 RPM motor; allow blades to reach full speed
- Cutting: Apply steady forward pressure following laser line; maintain constant depth using depth stop (up to 41mm)
- Dust Control: Position vacuum attachment to movable cover; monitor for blockages during extended operation
- Completion: Power off, allow blades to stop completely; clean dust cover and inspect blades for wear
- Maintenance: Check carbon brushes after 50 hours; store with blade guards in protective case
