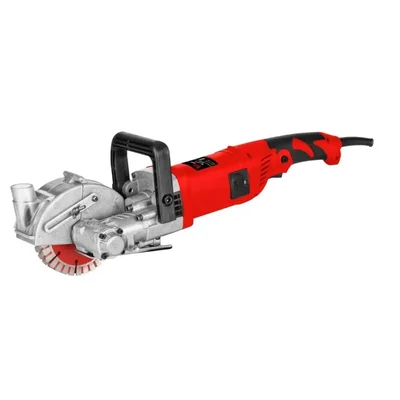

Yiking 5800W 36x36mm 6500 RPM Wall Chaser Cutter YWC (125B)

• Model Number: YWC 125A
• Power Consumption: 5800W
• Max Cutting Depth: 36mm
• Max Cutting Width: 36mm
• Disc Diameter: 5 Inch (127mm)
• Speed Range: 0-6500 RPM (variable)
• Disc Configuration: 2 pieces (dual parallel)
• Type: Electric Wall Chaser Cutter
• Usage/Application: Construction/industrial
• Power Source: 220V single phase
• Construction: Heavy-duty reinforced housing
• Cooling: Advanced air ventilation system

Features

• 5800W High-Torque Motor: Continuous power delivery for demanding concrete and masonry applications
• 36mm Depth x 36mm Width Capacity: Perfect dimensions for standard electrical conduit and small pipe chasing
• Variable Speed 0-6500 RPM: Adjustable dial optimizes cutting speed for concrete, brick, stone, and tile
• Dual 5-Inch Disc System: 2-piece parallel blade configuration produces clean rectangular channels in single pass
• Precision Depth Adjustment: Micro-adjustable depth stop with clear 1mm markings for repeatable accuracy
• Industrial Vibration Control: Ergonomic handles with rubber overmolding reduce fatigue during extended operation
• Enhanced Dust Extraction: Dual port system compatible with construction vacuums for cleaner work areas
• Overload Thermal Protection: Automatic safety shutoff prevents motor damage during heavy continuous use

Accessories

• 2 x 5-inch cutting discs (installed)
• 1 x Double-hex spanner set
• 1 x Dust extraction adapter
• 1 x Parallel guide rail
• 1 x Depth adjustment wrench

Applications

• Electrical conduit installation channels
• Plumbing pipe grooves in concrete walls
• HVAC drain line chasing
• Cable management trunking slots
• Fire detection system wiring grooves
• Security system power conduits
• LED strip lighting recessed channels
• Low-voltage control cable routing
• Wall-mounted sensor installation grooves
• Building services small pipe channels

Usage

• Prepare Work Area: Cover floors/furniture with dust sheets, wear full PPE (safety goggles, gloves, dust mask, ear protection)
• Mark Channel Lines: Use chalk line or laser level to precisely mark conduit/pipe routing paths on concrete/brick surface
• Set Cutting Depth: Adjust depth stop to 36mm maximum using side dial (typically 20-30mm for standard electrical chasing)
• Install Dual Discs: Mount 2 x 5-inch discs on parallel arbors with spanner set, set 36mm spacing for square channel
• Connect Dust Extraction: Attach industrial vacuum to dual extraction ports; secure hose away from cutting path
• Speed Selection: Dial variable speed to 3000-4500 RPM for concrete/brick (higher 6500 RPM for stone/tile)
• Power Up: Connect to 220V/20A outlet, squeeze trigger gradually to full power
• Execute Cut: Align with marked line, maintain steady forward pressure using depth guide roller
• Monitor Performance: Pause every 10-15 minutes to clear dust; check for blade wear or motor heat
• Finish & Clean: Power off completely, remove discs, blow out dust ports; store upright with blade guards
