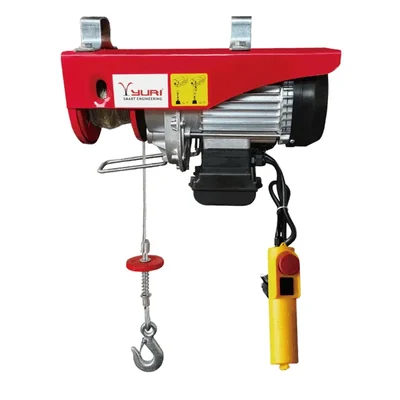

Yuri PA 500 kg 1020W Mini Electric Hoist

4 mm Diameter & 20 meter Long Wire Rope

Country of origin: China

Brand: YURI
Power : 1020 w
Weight (Approx.) : 17 kg
Load Capacity : 500 kg
Phase : Single

Model No. : PA-500
Trolley Option : Without Trolley
Winding : Copper Winding
Power Source : Electric
Working : Remote Controlled
Frequency : 50 Hz
Method Of Use : Single & Double Hook
Single Hook Load Capacity : 250 kg
Double Hook Load Capacity : 500 kg
Rated Voltage : 110/220 V
Rate Lifting : 150 to 300 Kg
IP Rating : IP40
Wire Rope Diameter : 4 mm
Wire Rope Length : 20 mtr. (2000 cm)
Input Power : 1020 W
Lifting Speed : 8/4 m/min
Lifting Height : 15/20 m (1500/2000 cm)
Work Rate : 20% 10 min
Motor Speed : 2800 RPM
Body Material : Cast Iron
Usage/Application : Industrial

The raising, lowering, and transferring of objects and goods is done with the use of material handling equipment called electric hoists. They are mounted above the ground, and an electric motor drives them. Electric wire rope and chain hoists are the two primary varieties of electric hoists.

Mini Electric Hoist 250/500kg with Double Hook is capable of lifting 500kg of weight with the aid of double hook. It is designed to operate electrically, with an emergency push button in red to prevent any casualty.

Features

With an emergency stop switch
Reinforced breaking switch with position limit
Protection class up to IP40
With a thermal prevention device
Compact and small size design
Long life span and high efficiency
Applicable for most industry, business, handicraft industry and service industry
Can be used in conjunction with many types of electric or manual cranes such as the single-girder crane, the double-girder crane, the cantilever crane and the gantry crane
