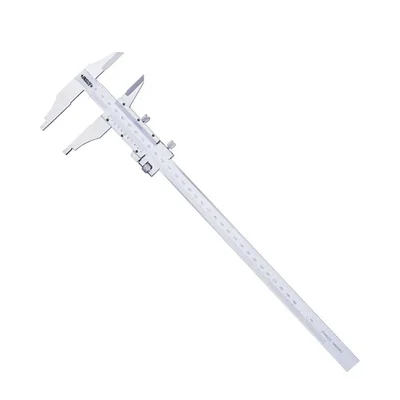

Insize 300 mm Vernier Caliper 1217-3001 Model, Stainless Steel Body

• Model No : 1217-3001
• Measurement Range : 0-300 mm
• Resolution : 0.02 mm
• Material : Stainless Steel
• Lower Jaw Length : 60 mm
• Upper Jaw Length : 40 mm
• Overall Length : 410 mm
• Accuracy : ±0.03 mm

Features

• Fine Adjustment Thumbwheel: This secondary sliding block allows for controlled, micro-movements of the jaw, which is essential for achieving the tool's 0.02 mm resolution.
• Material: Built from hardened stainless steel for superior rigidity, preventing the beam from flexing at its full 300 mm extension.
• Satin Chrome Finish: The main scale and vernier scale are finished in satin chrome to eliminate glare, making the laser-engraved graduations much easier to read under bright shop lights

Applications

• Large Bore & Shaft Measurement: The 60 mm lower jaws are ideal for measuring the outside diameter of large industrial pipes, flanges, and shafts.
• Tool & Die Making: Used for checking the dimensions of large jigs, molds, and fixtures where a "fine adjustment" feel is required.
• Quality Control (QC): Essential for batch inspections of 300 mm components where mechanical reliability and high repeatability are paramount.
• Machinery Maintenance: Excellent for maintenance teams who need a rugged, battery-free tool that can withstand grease, oil, and dust.
