Hot Bar Type Pedal or Foot Sealing Machine 500W
Sealing Length 16 Inch
For all thermoplastic pouches in the food, pharmaceutical & manufacturing sectors.
- Farm & Garden
- Pumps & Motors
- Food Processing
- Workshop, DIY & MRO
Brand : Generic (Imported)

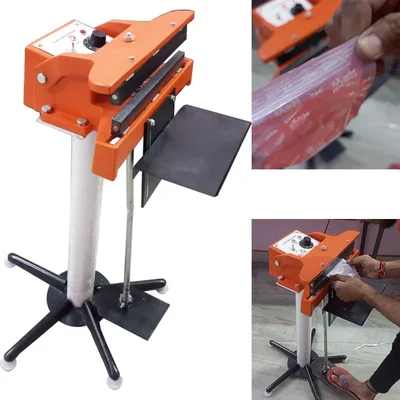

16" inch Hot Bar Type Foot Sealer - 500W
SKU : SJ-TT-20211581
MRP : ₹25000
₹18355
27% OFF!
-
1
+
Delivery By: Jun 30 - Jul 2
Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
Short Description
Country of origin: China
Specification
- Brand: Generic (Imported)
- Weight (Approx.) : 23 kg
- Model Name : 400 PH
- Sealing Length : 16 Inch (400 mm)
- Sealing Width : 12 x 5 mm
- Power : 500 Watt
- Voltage : 230 V
- Heater : Tubular Heater
- Automation Grade : Manual
Toolsvilla deals in various types of Packaging Machinery. A wide range of Foot/Pedal Sealing Machines are heat sealing machine used to seal all different types of packaging, from polyethylene and polypropylene bags to thermoplastic packaging.
Description
Direct foot sealers specializing in BOPP, aluminum foil & paper laminated pouch packaging are hot bar sealers. During output, they are simple to operate and free both hands, adding even more effectiveness to the production lines.
Features
:- Self-standing type
- Easy to operate
- Adjustable pouch stand
- Various sealing width
- Ergonomic design
- Heavy metal body with aluminum head
- For heavy duty working
Usage
:- Setup the Machine : Place the foot sealer on a stable, flat surface. Ensure it is plugged into a suitable power outlet.
- Adjust Timer and Temperature : Adjust the temperature according to the type of packaging material you are using.
- Position the Material : Place the open end of the packaging material between the sealing bars of the machine.
- Seal the Package : Press down on the foot pedal to activate the sealing process. Hold down for few seconds then sealing is complete.
- Remove Sealed Package : Release the foot pedal and carefully remove your sealed package from between the bars.
- Check Seal Quality : Inspect the seal for completeness and strength before proceeding with further packaging.
Maintenance :
- Temperature Management : Avoid leaving the sealer on when not in use for extended periods, especially overnight, as this can shorten the lifespan of its components.
- Cleaning : Periodically wipe down the unit to remove any excess bag material or food debris that may accumulate after sealing.
Applications
:- Retail Packaging : Commonly used in retail environments for sealing bags of merchandise, providing a tamper-evident seal.
- Pharmaceutical Packaging : Useful for sealing medical supplies and pharmaceutical products to maintain sterility and safety.
- Food Packaging : Ideal for sealing high graded bags containing food items, ensuring freshness and preventing contamination.
- Industrial Use : Suitable for sealing various types of films used in packaging non-food products, such as electronics or textiles.
