Brand: Generic (Imported)

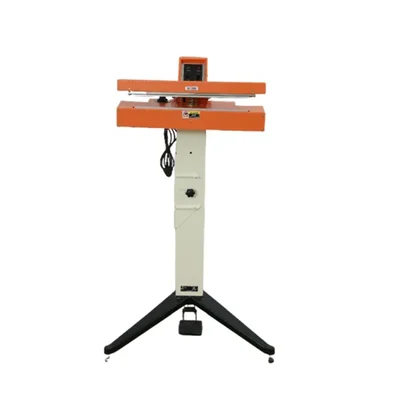

24" inch Hot Bar Foot Sealing Machine - 700W with 1 Year warranty
SKU: SJ-TT-20211583
₹24000 (Including GST)
MRP : ₹33600
Get extra ₹360 Discount (On Checkout)
Out of Stock
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Hot Bar Type Pedal or Foot Sealing Machine 700W
Sealing Length 600 mm (24inch)(60.96cm)
1 year manufacturer warranty
For all thermoplastic pouches in the food, pharmaceutical & manufacturing sectors.
Country of origin: China
Description

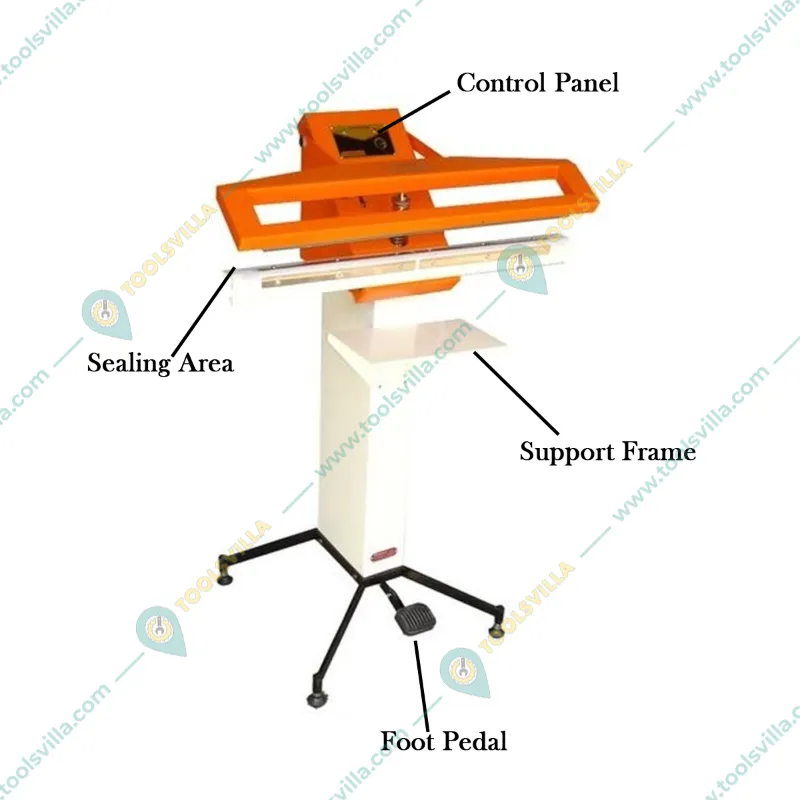

This 24” Inch Hot Bar Foot Sealing Machine - 700W is a specialized industrial device designed for sealing thermoplastic materials, such as polyethylene (PE), polypropylene (PP), and other similar films. This machine utilizes a hot bar sealing mechanism, which applies heat to create a secure seal on bags or pouches.
Features
:- Self-standing type
- Easy to operate
- Adjustable pouch stand
- Various sealing width
- Ergonomic design
Specification
:- Brand: Generic (Imported)
- Weight (Approx.) : 26 kg
- Model : 600 PH
- Sealing Length : 600 mm
- Sealing Width : (12 x 5) mm
- Voltage : 230 V
- Watt : 700W
- Heater : Tubular Heater
- Automation Grade : Manual
- Weight : 26 kg (Approx.)
Warranty :
- 1 year manufacturer warranty.
Note :
- This warranty does not cover damages due to accident, mishandling/negligence.
- Heating element, fiber fabric/tape, chipping/peeling of paint/enamel, denting of body part are also not come under warranty.
Toolsvilla deals in various types of Packaging Machinery. A wide range of Foot/Pedal Sealing Machines are heat sealing machine used to seal all different types of packaging, from polyethylene and polypropylene bags to thermoplastic packaging.
Usage

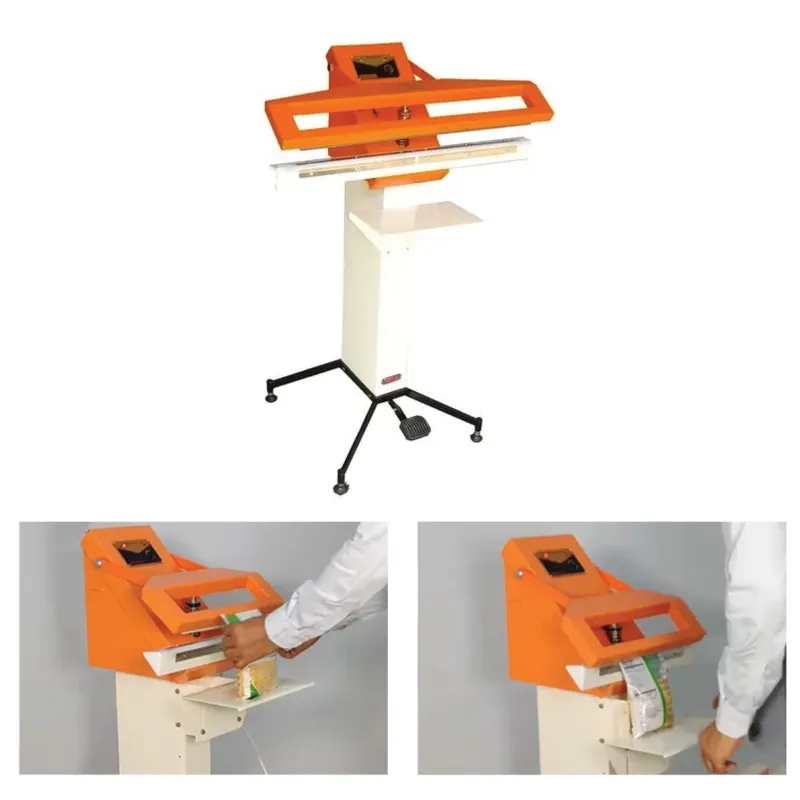

:- Setup the Machine : Place the foot sealer on a stable, flat surface. Ensure it is plugged into a suitable power outlet.
- Adjust Timer and Temperature : Adjust the temperature according to the type of packaging material you are using.
- Position the Material : Place the open end of the packaging material between the sealing bars of the machine.
- Seal the Package : Press down on the foot pedal to activate the sealing process. Hold down for few seconds then sealing is complete.
- Remove Sealed Package : Release the foot pedal and carefully remove your sealed package from between the bars.
- Check Seal Quality : Inspect the seal for completeness and strength before proceeding with further packaging.
Maintenance :
- Temperature Management : Avoid leaving the sealer on when not in use for extended periods, especially overnight, as this can shorten the lifespan of its components.
- Cleaning : Periodically wipe down the unit to remove any excess bag material or food debris that may accumulate after sealing.
Applications
:- Food Packaging : Ideal for sealing high graded bags containing food items, ensuring freshness and preventing contamination.
- Industrial Use : Suitable for sealing various types of films used in packaging non-food products, such as electronics or textiles.
- Retail Packaging : Commonly used in retail environments for sealing bags of merchandise, providing a tamper-evident seal.
- Pharmaceutical Packaging : Useful for sealing medical supplies and pharmaceutical products to maintain sterility and safety.
