Brand: Kirloskar
Kirloskar KP4 Jalraaj-1008*S 1 HP 8 Stage Oil Filled Borewell Pump with CP (1 Year Warranty)
SKU: DK-KB-2083
Regular Price : ₹15000
Offer Price : ₹12699 (Including GST)
Get extra ₹381 Discount (On Checkout)
Qty:
Easy Returns
Quality Assurance
Trusted Delivery
After Sales Assistance
Short Description
1 HP Single Phase Submersible Pump with Control Panel
(10 to 48 meters) Head, 100-40 LPM Discharge Rate
1 Year Warranty
Description
Kirloskar KP4 Jalraaj-1008*S 1 HP 8 Stage Oil Filled Borewell Pump with CP (1 Year Warranty)
Features :
- It is designed such a way that gives high-efficiency and energy-saving
- All rotating parts are dynamically balanced.
- To prevent overloading, the design incorporates a number of features.
- It is compact and lightweight
- Its efficiency that is more flat curve that can be used in horizontal application
Specifications :
- Model No. : KP4 Jalraaj-1008*S
- Product Type : Borewell Submersible Pump
- Brand : Kirloskar
- Power Source : Corded Electric
- Motor Power : 1 HP (0.75 kW)
- Power Supply : 180-240V, AC Supply
- Electricity Connection : Single Phase
- Motor Type : Oil Filled
- Boring Size : 4 Inch (100 mm)
- Max. Head Range : 48-10 m
- Outlet Size : 32 mm
- No. of Stages : 8
- Current Rating : 6.7 Amp.
- Max. Flow Rate : 100 to 40 LPM
- Weight : 13 Kg (Approx)
Materials of Construction :
- Pump Housing : SS
- Pump Shaft : SS
- Suction Bracket : C.I.FG-200
- Discharge Nozzle : C.I.FG-200
- Stage Bowl : SS
- Impellers : Noryl
- Diffusers : Noryl
- Strainer : SS
- Motor Housing : SS
- Motor Shaft : SS
- Motor Top shield : Cast Iron
- Winding : Copper
- All Hardware : SS
Applications :
- Domestic and community water supply.
- Water supply for high rise building.
- Gardening and small farm irrigation.
- Construction site & ground water supply to water works.
Warranty :
- One year warranty on manufacturing defects only.
Note :

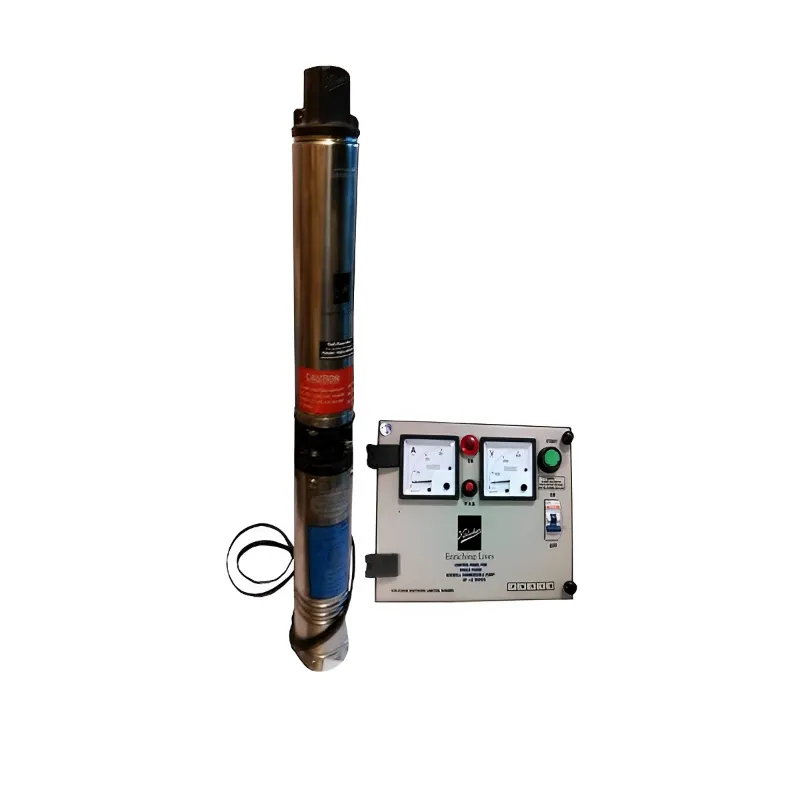

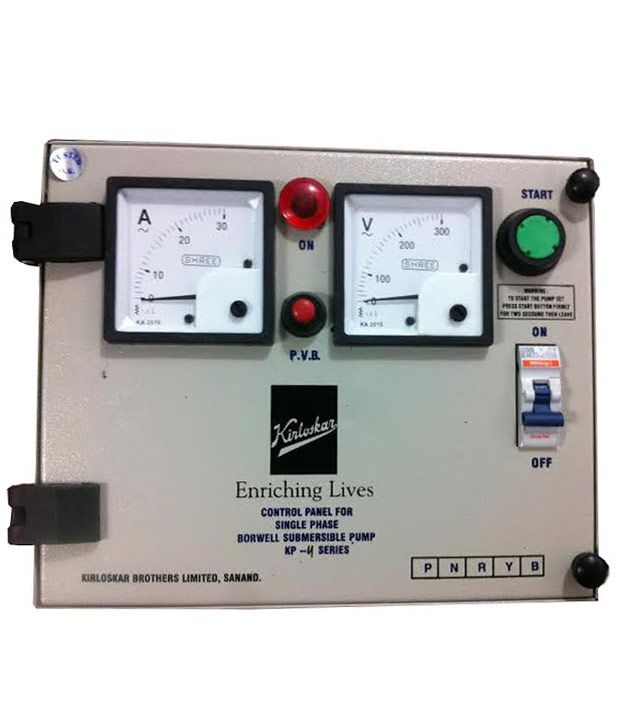

- Borewell Submersible Pump comes with Control Panel Board.
