Brand: Lubi

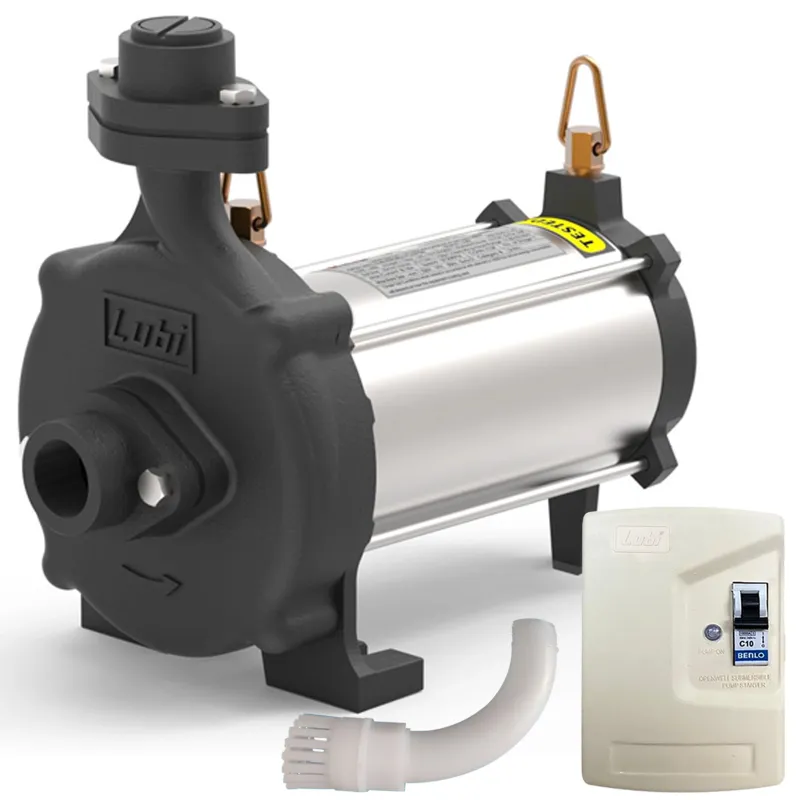

Lubi 1.5Hp 1Phase Openwell Submersible Pumpset With Controller, 39m Max. Head, 32X25mm (LHL-155CE) - 1 Year Warranty
SKU: TI-L1-21131
₹17999 (Including GST)
MRP : ₹23000
Get extra ₹270 Discount (On Checkout)
Delivery By: Jun 2 - Jun 4
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
LUBI 1.5 HP Horizontal Openwell Submersible Pumpsets With Controller (LHL-155CE)
Copper winding, Single Phase
127ft Max Head, 159 LPM Max. Discharge
1 Year Warranty
Country of origin: India
Description
Lubi Horizontal Openwell Submersible Pumpsets are manufactured strict quality assurance for years of efficient and reliable operation. It is usually positioned inside the water source, which could be a tank or reservoir, and uses suction to extract water from it.
Features
:- Pumpset are designed to withstand voltage drops to 320 volts.
- It has well designed sleeve and thrust bearing of adequate capacity for longer life.
- High operating efficiencies of pumpset result into high water discharge rate and lower power bills.
- All components are precisely machined on modern precision machine tools to give you years of reliable operation.
- Stator and rotor of the monoset are vacuum impregnated with synthetic varnish and epoxy coated for corrosion resistance.
- All rotating components are dynamically balanced to ensure long bearing life and vibration free smooth operation.
- All pumpsets are fully tested prior to dispatch.
Specification
:- Brand: Lubi
- Power : 1.5 hp
- Weight (Approx.) : 22.5 kg
- Flow Rate : 159 lpm
- Head : 39 meter
- Model No : LHL-155CE
- Product Type : Horizontal Openwell Submersible Pumpsets
- Brand : LUBI
- Wattage : 1.1 kW
- Electricity Connection : Single Phase
- Rated Voltage : 230 Volt (±10%), 50 Hz
- Speed : 2880 RPM
- Winding : PVC / Polyester insulted, water cooled
- Head Range : 9 to 39 Meter (29 to 127 Feet)
- Discharge Range : 159 to 41 LPM (9540 to 2460 LPH)
- Pipe Size (Suction x Delivery) : 32 x 25 mm
Material of Construction :
- Motor Body : Cast Iron / Stainless Steel
- Stator : Vacuum Impregnated and epoxy coated for corrosion resistance. Thick end laminations are provided to protect motor windings.
- Rotor : Vacuum impregnated, shot blasted & coated with poly urethene colour for corrosion resistance & dynamically balanced for vibration free smooth operation.
- Journal Bearings : Leaded Bronze and Stainless Steel, Water Lubricated, having high load bearing capacity
- Thrust Bearings : Carbon Vs Stainless Steel and water lubricated to withstand high axial thrust loads.
- Pressure Equalizing Diaphragm : Adequately sized to accommodate expansion of water inside the motor and prevent loss cooling water
- Impeller : Graded Cast Iron & Dynamically balanced.
- Casing : High grade Cast Iron.
- Wear Rings : High quality abrasion resistance Bronze.
- Shaft : Stainless Steel of adequate diameter to ensure rigidity and ground to close tolerances.
- Cable Sealing Arrangement : Designed so that no borewell water with sand can enter the motor.
Accessories
:- Control Panel
- Bend Pipe with filter
- 5 m Cable
Applications
:- Irrigation from open wells especially where there is wide fluctuation in water levels.
- Community water supply from open wells.
- Fountains.
- Canals / Rivers belt irrigation.
- Water supply for high-rise building.
Warranty :
- 1 Year Warranty
