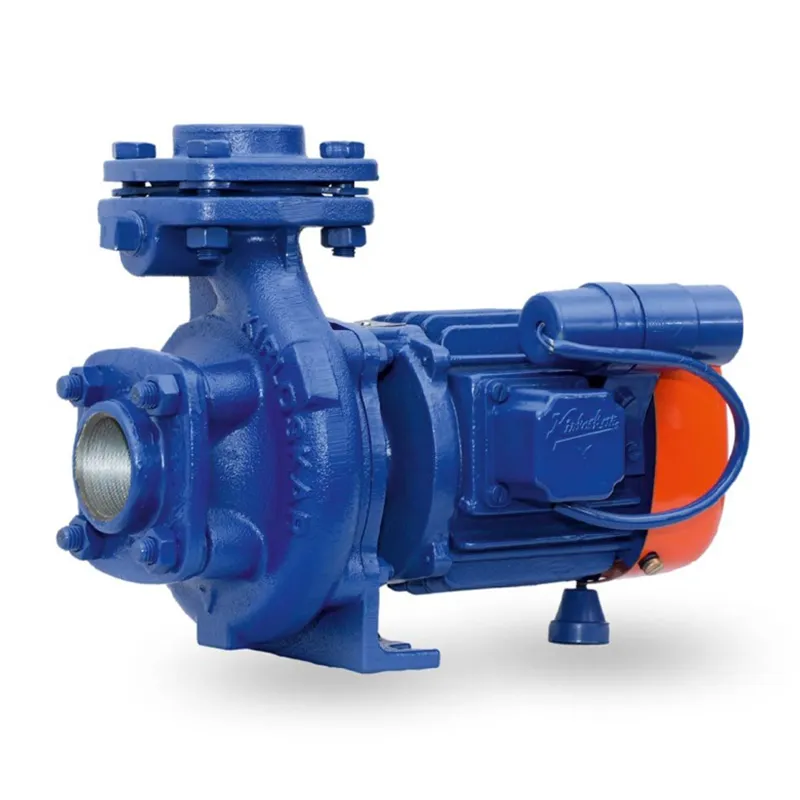

Kirloskar 1 HP 1Phase Centrifugal Monoblock Pump,12m Head, 24840 LPH, 50x50 mm (KDS 112 Low Voltage) - 1 Year Warranty

Features

• Wide Voltage Design : The motor is designed to withstand wide voltage fluctuations and reduces motor burning in case of low voltage.
• Replaceable Wearing Parts : All wearing parts within the pumps are easily accessible and replaceable which facilitates ease of maintenance thereby extending the life of the pump.
• TOP - Thermal Overload Protector : The pump set features a Thermal Overload protector that protects the motor from overloading, shielding the motor and associated circuit from the effects of fault current.
• CED – Cathodic Electro Deposition : CED is the latest coating technology for corrosion resistance with uniform coating. It provides 5 times more protection over conventional painting, resulting in longer life. All major CI parts of Kirloskar pumps coming in contact with the water are CED coated.
• Automatic Air Release : Automatically releases air when the pump starts which ensures swifter and smoother operations, thus eliminates the necessity of operating air release cock and ensures swifter and smoother operations.
• High Efficiency And Energy Saving Design : Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings.
• Dynamically Balanced Rotating Parts : Minimum vibrations protect components from damages during the operations, thus ensuring consistent performance as concentricity is maintained.
• Designed to Prevent Overloading : Lesser chances of motor burning as the motor does not get overloaded even if the pump is operated at a head lower than recommended, thus ensuring substantial cost savings due to low maintenance and breakdown.

Specification

• Model No : KDS 112 LV
• Product Type : Monoblock Pump
• Brand : Kirloskar
• Motor Power : 0.75 kW
• No Of Pole : 2
• Rated Voltage : 160 V, 50 Hz, AC Power Supply
• Electricity Connection : Single Phase
• Head Range : 6 to 12 Meter
• Discharge Range : 414 to 120 LPM (24840 to 7200 LPH)
• Pipe Size (Suction X Delivery) : 50 x 50 mm
