Brand: Lubi
Lubi 1Hp Single Phase Openwell Submersible Pumpset With Controller, 26m Max. Head, 25X25mm (OCEAN100) - 1 Year Warranty
SKU: TI-L1-21151
₹10200 (Including GST)
MRP : ₹15000
Get extra ₹153 Discount (On Checkout)
Delivery By: May 24 - May 26
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description

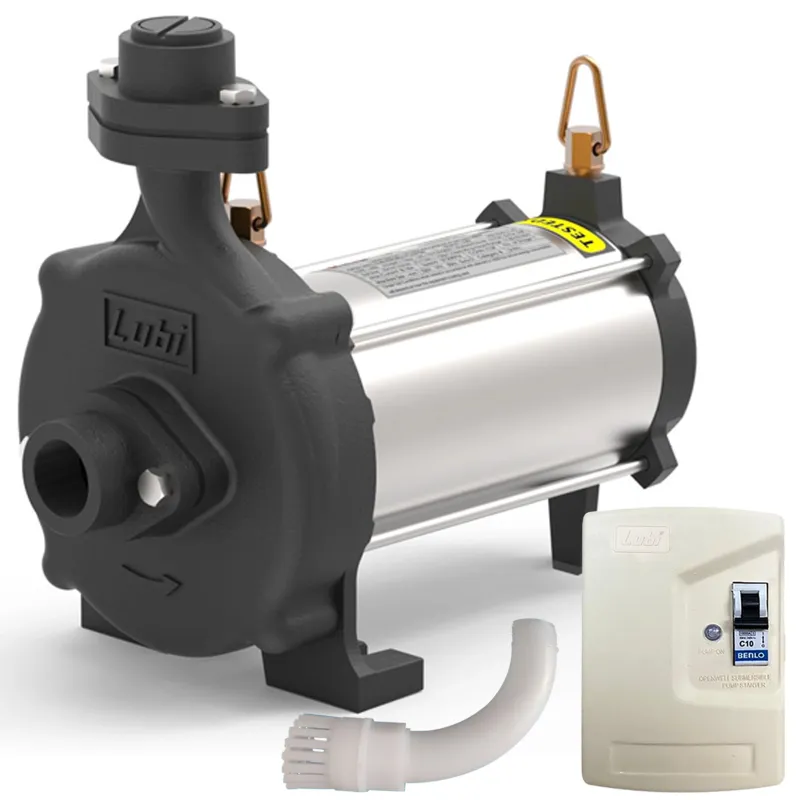

LUBI 1 HP Horizontal Openwell Submersible Pumpsets (OCEAN100)
Copper winding, Single Phase
85ft Max Head, 160 LPM Max. Discharge
1 Year Warranty
Country of origin: India
Description
Lubi Horizontal Openwell Submersible Pumpsets are manufactured strict quality assurance for years of efficient and reliable operation. It is usually positioned inside the water source, which could be a tank or reservoir, and uses suction to extract water from it.
Features
:- It has well designed sleeve and thrust bearing of adequate capacity for longer life.
- High operating efficiencies of pumpset result into high water discharge rate and lower power bills.
- All components are precisely machined on modern precision machine tools to give you years of reliable operation.
- Stator and rotor of the monoset are vacuum impregnated with synthetic varnish and epoxy coated for corrosion resistance.
- All rotating components are dynamically balanced to ensure long bearing life and vibration free smooth operation.
- All pumpsets are fully tested prior to dispatch.
Specification
:- Brand: Lubi
- Power : 1 hp
- Weight (Approx.) : 14.8 kg
- Flow Rate : 160 lpm
- Head : 26 meter
- Model No : OCEAN100
- Product Type : Horizontal Openwell Submersible Pumpsets
- Brand : LUBI
- Wattage : 0.75 kW
- Electricity Connection : Single Phase
- Rated Voltage : 230 Volt, 50 Hz
- Speed : 2880 RPM
- Winding : PVC / Polyester insulted, water cooled
- Head Range : 14 to 26 Meter (45 to 85 Feet)
- Discharge Range : 160 to 12 LPM (9600 to 720 LPH)
- Pipe Size (Suction x Delivery) : 25 x 25 mm
Accessories
:- Control Panel
- Bend Pipe with filter
- 5 m Cable
Applications
:- Irrigation from open wells especially where there is wide fluctuation in water levels.
- Community water supply from open wells.
- Fountains.
- Canals / Rivers belt irrigation.
- Water supply for high-rise building.
Warranty :
- 1 Year Warranty.
