Brand: Havells
Havells 1 Hp Single Phase Pressure Booster Pump With 24L Tank, For 1-4 Outlets (HMPM2-5100-V24) - 1 Year Warranty
SKU: TI-H1-35437
₹21110 (Including GST)
MRP : ₹28900
Get extra ₹317 Discount (On Checkout)
Delivery By: May 26 - May 28
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description

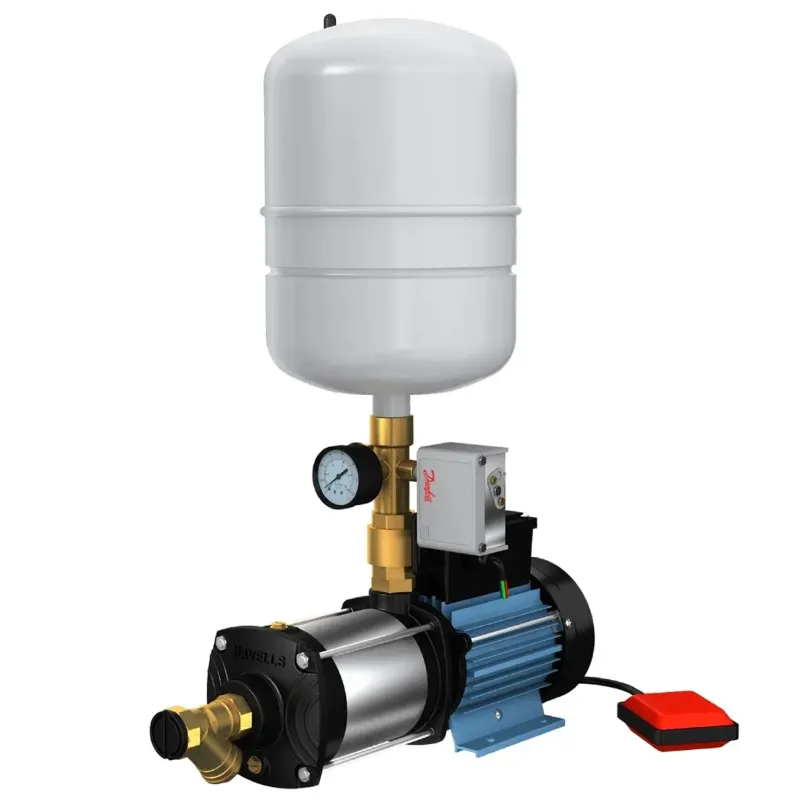

Havells 1 Hp Single Phase Booster Pump (HMPM2-5100-V24)
44m Max. Head, 65 LPM Max. Discharge
24L tank & all the pump accessories are included
1 Year Warranty
Country of origin: India
Description
A water pressure booster pump is a specific type of booster pump is designed to increase water pressure and flow in residential or commercial settings where there are issues with low water pressure. The inclusion of a tank allows for the storage of pressurized water, ensuring a more consistent and reliable supply of water at an adequate pressure level.
Features
:- Motor Insulation Class-F : Motor design is compact. It protects motor from winding burning due to wide voltage fluctuations.
- Motor Windings : Dual coated F Class copper winding wires gives high motor efficiency. Winding wires can withstand high temperature and motor winding is protected from burning. Most of the pumps available in market have ordinary enameled copper wire or aluminum wire windings making them inefficient.
- Pump Shaft : High Grade SS410 shaft
- Pump Casting : CED coated Pump Castings (FG-200 grade) for long life.
- Applicable for (1 - 4) Outlets / Faucets
Specification
:- Brand: Havells
- Power : 1 hp
- Weight (Approx.) : 18.7 kg
- Flow Rate : 65 lpm
- Head : 44 meter
- Model No. : HMPM2-5100-V24
- Product Name : Pressure Booster Pump
- Wattage : 0.75 kW
- Rated Voltage : 180 V - 260 V
- Electricity Connection : Single Phase
- Pipe Size (Suction x Delivery) : 25 x 25 mm
- Total Head Range : 15 to 44 meters (49 to 144 feet)
- Max. Flow Rate : 65 to 23 LPM (3900 to 1380 LPH)
- Recommended Faucets : 1-4 Outlets
- Winding Type : Copper winding
- Cable Length and Size : 0.3 m & 1.0 sq. mm
- Direction of Rotating : Clockwise when viewed from fan cover side
- Motor Body : High quality extruded aluminium
- Motor Stator : Low watt loss stamping
- Pump Casing : Cast iron
- Shaft : SS 410
- Impeller : Noryl
- Operating Water Temperature : Up to 50 °C
- Motor Speed : 2880 Revolution per minute
- Insulation Class : Class F
Applications
:- Ideal for domestic household purpose where pressure is too low
- Designed to maintain constant water pressure with automatic start/stop, Pumps are fitted with high quality hydro-pneumatic tank.
- Applicable for (1 - 4) Outlets / Faucets
WARRANTY :
- 1 Year Warranty
