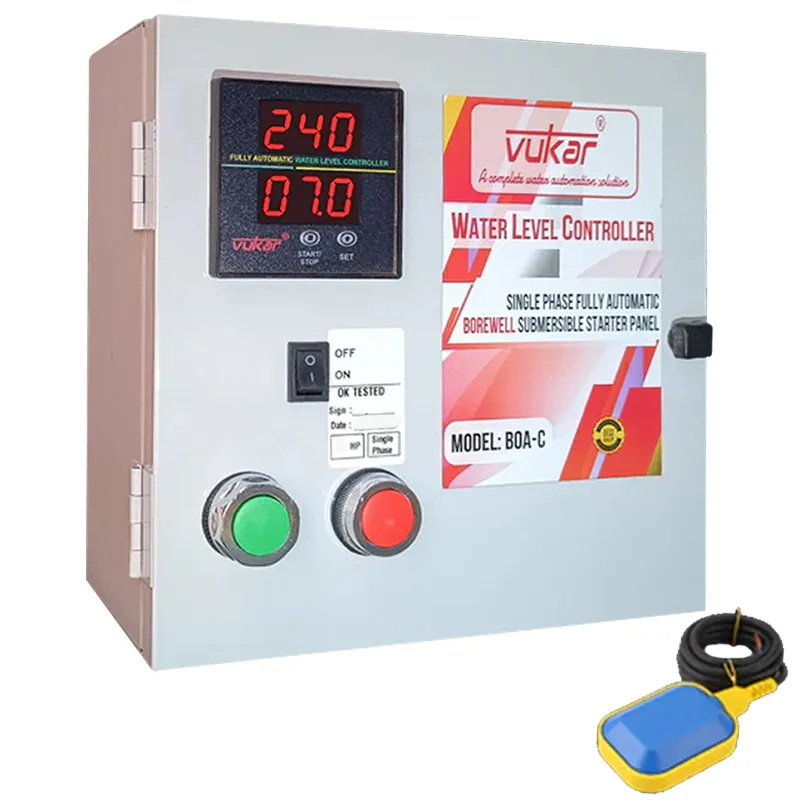

Vukar 0.75Hp 1Ph Fully Automatic Borewell Submersible Pump Starter Panel With Float Switch (BOA-C) - 3 Months Warranty

Features

• Fully Automatic Operation : Motor will turn ON and OFF as per the water level in the overhead tank. When the water gets empty in borewell, the motor will automatically stop.
• Borewell Recharge Timer : When water in the borewell is empty, it will stop the motor automatically. When the borewell recharges, the motor will start automatically based on the borewell recharge timer.
• Motor overload protection : It has inbuilt overload protection to protect the motor. Users can set the overload setting as per motor rating.
• Motor Dry Run Protection : It has inbuilt motor protection device. It has dry run protection to protect the motor. Users can set the dry run setting as per motor rating.
• Voltage Protection : It has an inbuilt voltage protection device. Motor will turn off when the supply voltage is not within the range of overvoltage and under voltage set by the user. It protects the motor from voltage fluctuation.
• Digital Display : It has a dual display. It displays voltage, ampere, timer and fault of the motor.
• Includes Cable Float Switch : It includes the cable float switch sensor as a water level sensor.
• 100% Safe & Shockproof : Water level sensor operates in +3V DC voltage. In case of sensor failure, there is no chance for the leakage of current. It is 100% safe to use in any water tank.
• Heavy Duty Contactor for Starting Torque : Starting torque of the borewell motor is necessary for the regular operation. Starting torque creates the spike of the ampere. Due to this, a heavy duty contactor for the starting torque is required for the borewell submersible pump.
• ISI Wiring : This starter panel uses the lug based ISI wiring. Ampere capacity of the wires used is 2x capacity of the rated ampere. ISI standard wires are recommended to use with the rated amperage as per HP rating of the motor. It is necessary to use the lug wiring with the power wiring for water pump application to ensure the long life of the motor.
• Use of Transformer Coil : It has inbuilt heavy quality transformer coil. Transformer coil isolates the main input power to the control unit. This increases the reliability, safety and life cycle of the control unit.
• Electric Contactor : Electric contactor is used to isolate the input power and motor connections. Ampere rating of the electrical point of the contactor is 2x capacity of the rated ampere.
• Powder Coated Metal Enclosure : It has a shockproof heavy duty powder coated metal enclosure. Powder coated metal enclosures ensure the product should be delivered to the customer without any physical damage to the customer.
• Premium Quality Capacitor : Capacitor is the one of the most crucial parts of this single phase digital starter panel. The performance of the motor is dependent on the capacitor. Capacitor value reduces by time. To ensure the maximum retention of run capacitor value, best quality capacitor is used with this submersible starter panel.
• Spare Parts Availability : Each Spare part is easily available in local markets all over India. User is not dependent on a specific manufacturer in case of immediate repair of any spare parts.
• 100% Technical support : We offer excellent technical customer care support to our clients.

Specification

• Model : BOA-C
• Item Code : BOA-C1
• Product Type : Borewell Submersible Pumps Starter Panel
• Brand : Vukar
• Power : 0.75 Hp (0.55 kW)
• Electricity Connection : Single Phase
• Rated Voltage : 220 Volt, 50 Hz

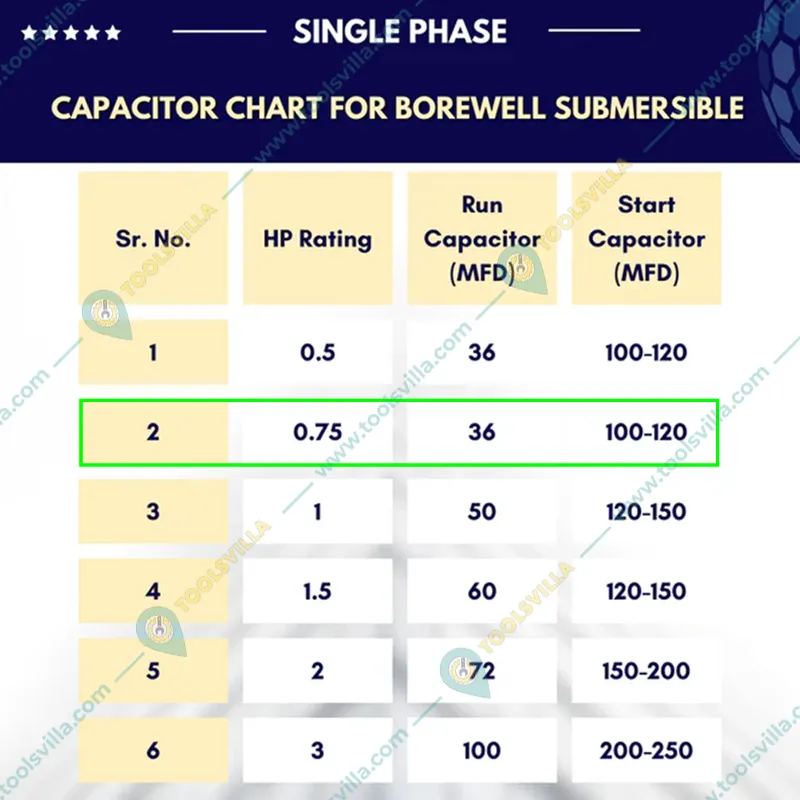

• Run Capacitor : 36 MFD
• Start Capacitor : 100-120 MFD
• Suitable For : Borewell Submersible Pumps
• Operation Type : Fully Automatic

Accessories

• Float Switch

Applications
