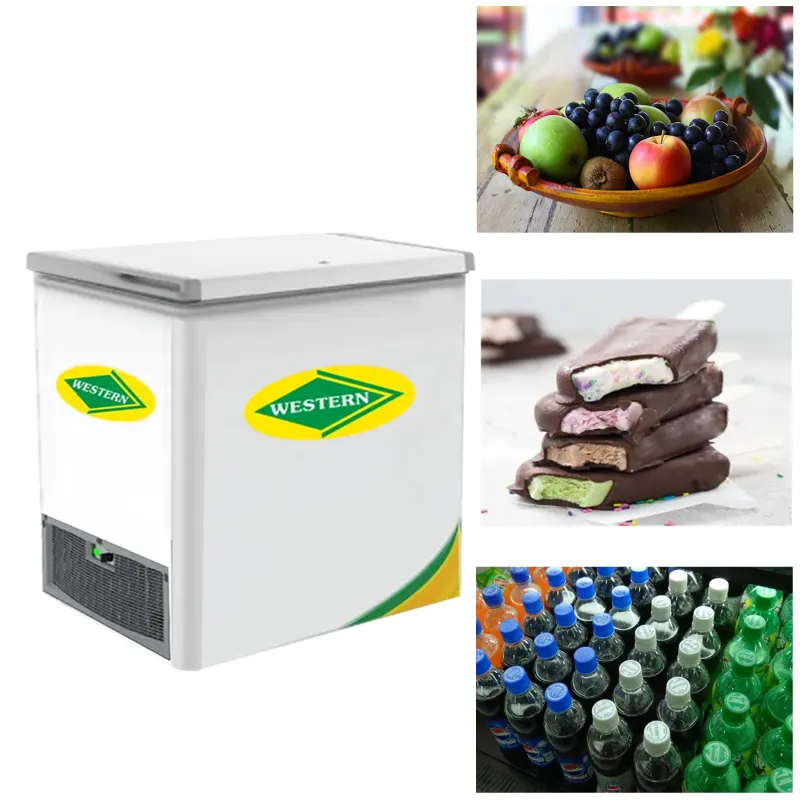

WESTERN D225H122 Single Door 190L Hard Top Chest/Deep Freezer for Ice Cream, Instant Food and Other Beverages

Features

• Convertible Technology: Functions as both a freezer and a cooler, offering versatile storage options.
• High Insulation: 60mm Polyurethane insulation for superior temperature retention and energy efficiency.
• Durable Hard Top: Robust metal top lid for enhanced durability and security.
• Single Basket: Provides organized storage for various items.
• Mobility: Equipped with castor wheels for easy relocation.
• Security: Features a lock and key arrangement to secure contents.
• Energy Efficient: Designed to minimize power consumption (2-star energy rating).
• Tropical Design: Built to perform effectively even in high ambient temperatures (up to 43°C).
• Quiet Operation: High-performance compressor and condenser ensure efficient cooling with minimal noise.
• Rodent-Proof Power Cord: Added protection against damage.
• Manual Defrost: Allows for thorough cleaning and maintenance

Specification

Applications

Usage

1. Placement: Place the freezer on a flat, stable surface in a well-ventilated area, away from direct sunlight and heat sources. Ensure sufficient clearance around the unit for proper air circulation.
2. Initial Setup: Allow the freezer to stand upright for a few hours before plugging it in to allow the refrigerant to settle.
3. Power On: Plug the freezer into a dedicated power outlet.
4. Temperature Setting: Use the thermostat control to set the desired temperature for either freezing or cooling. Allow several hours for the freezer to reach the set temperature before loading it with items.
5. Loading: Distribute items evenly inside the freezer. Do not overload to ensure proper air circulation and efficient cooling. Utilize the provided basket for organized storage.
6. Convertible Mode: To switch between freezer and cooler modes, adjust the thermostat accordingly.
7. Defrosting: Perform manual defrosting when ice buildup reaches a certain thickness (e.g., 1/4 to 1/2 inch) to maintain efficiency.

Maintenance:

• Regular Cleaning: Clean the interior and exterior of the freezer regularly with a mild detergent and water. Wipe dry thoroughly.
• Defrosting: Manually defrost the freezer when ice accumulates. Unplug the unit, remove all contents, and allow the ice to melt. You can use a plastic scraper to gently remove ice. Never use sharp objects to chip away ice.
• Condenser Coils: Periodically clean the condenser coils at the back or bottom of the freezer to ensure efficient cooling. Use a brush or vacuum cleaner to remove dust and debris.
• Door Seal: Check the door gasket regularly for any cracks or damage. A tight seal is crucial for maintaining temperature and energy efficiency. Clean the gasket with warm, soapy water.
• Ventilation: Ensure that the ventilation grilles are not blocked by anything to allow proper airflow.
• Power Cord: Inspect the power cord for any signs of damage.

Precautionary Guidance:

• Electrical Safety: Always plug the freezer into a grounded outlet. Do not use extension cords or adapters.
• Placement: Avoid placing the freezer near heat sources (ovens, radiators) or in direct sunlight. Ensure adequate ventilation space around the unit.
• Leveling: Ensure the freezer is level to ensure proper door sealing and efficient operation.
• Handling: When moving the freezer, avoid tilting it excessively. Use the castor wheels for easy movement.
• Defrosting: Never use sharp or metallic objects to remove ice, as this can damage the evaporator coils and lead to refrigerant leaks.
• Food Safety: Do not store hot food directly in the freezer. Allow it to cool down first.
• Overloading: Avoid overloading the freezer, as this can hinder proper air circulation and affect cooling efficiency.
• Child Safety: Keep the lock and key out of reach of children.
• Repairs: In case of any malfunction or issue, contact an authorized service technician. Do not attempt to repair the unit yourself.
