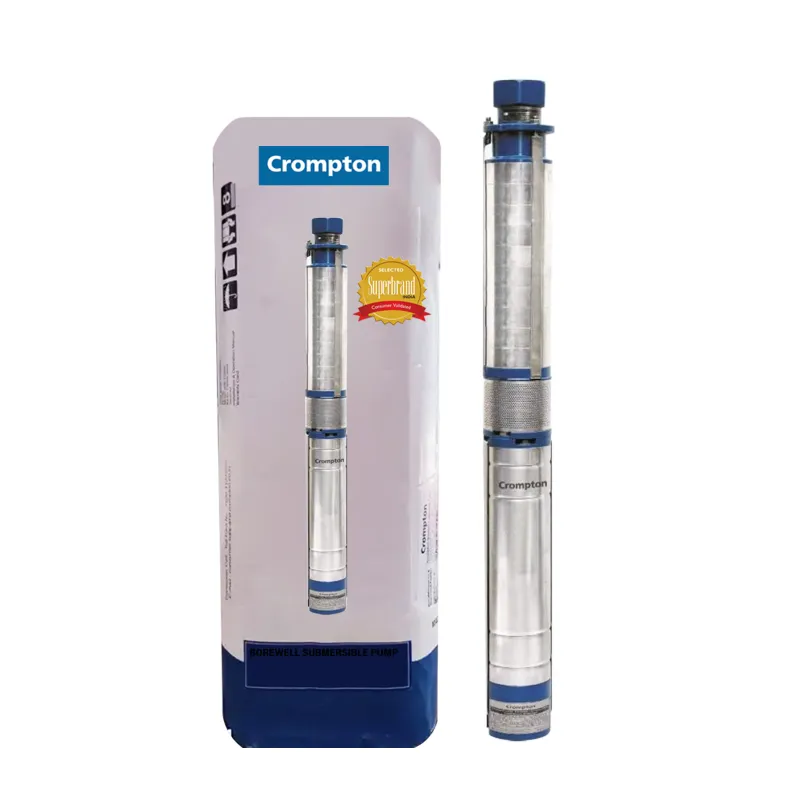

Crompton 2 HP 8 Stage 4 inch Water Filled 1Phase Borewell Submersible Pump With 1 Year Warranty (4W8RA2C-50)

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

Short Description

Crompton 2 Hp V4 1Ph Borewell Submersible Pump

49m Max. Head

150 LPM Max. Discharge

1 Year Warranty

Country of origin: India

Description

Crompton 2 HP 8 Stage 4 inch Water Filled 1Phase Borewell Submersible Pump With 1 Year Warranty (4W8RA2C-50)

Description :

• A submersible pump is a device which has a hermetically sealed motor close-coupled to the pump body. Electric submersible pumps are multistage centrifugal pumps operating in a vertical position. Liquids, accelerated by the impeller, lose their kinetic energy in the diffuser, where a conversion of kinetic to pressure energy takes place. This is the main operational mechanism of radial and mixed flow pumps. Multiple stage borewell submersible pumps are typically lowered down a borehole, and most typically used for residential, commercial, municipal and industrial water extraction

Features :

• High Grade Electrical Stamping : Reduces electrical losses and improves pump efficiency.
• High Thrust Capacity : Specially designed thrust bearing ensures highest reliability.
• In Built Check Valve : In built check valve prevents pump parts from damage due to sudden back pressure.
• High Quality Noryl : High quality virgin noryl components give longer life.
• Easy for Maintenance : Simple construction, easily replaceable wear and tear parts.

Specifications :

• Model No. : 4W8RA2C-50
• Product Type : Borewell Submersible Pump
• Brand : Crompton
• Wattage : 1.5 kW
• Electricity Connection : Single Phase
• Motor Type : Water Filled
• No. of Stages : 8

• Outlet Size : 50 mm
• Borewell Size : 10 Cm (4 inch)
• Borewell Type : V4
• Max. Head Range : 82 to 161 feet (25-49 meters)
• Max. Flow Rate : 150 to 30 LPM (9000 to 1800 LPH)
• Winding Material : Copper

Suitable For :

• 4 inch (100 mm) Boring

Material of Construction :

• Diffuser : Noryl
• Impeller : Noryl/Delrin
• Pump Shaft : Stainless Steel-SS410
• NRV Body : Cast Iron-Grade FG 200
• Motor Body : Stainless Steel-SS202/SS304
• Pump Jacket : Cast Iron-Grade FG 200
• Upper Housing, Motor Base : Stainless Steel-SS202
• Bush : Bronze LTB-4
• Motor Shaft : Stainless Steel-SS420
• Stamping : CRNGO-M47
• Thrust Bearing : SS Vs Zytel / SS Vs Carbon
• Strainer : Stainless Steel-SS202
• Fastener : Stainless Steel-SS410
• Sealing : Oil seal

Applications :

• Domestic water supply, Hotels, Buildings, Apartments, Hospitals ,Gardening
• Small farms, agriculture, Public water supply schemes
• Lift Irrigation Schemes
• Drip and Sprinkler Irrigation Schemes
• Booster application
• Circulation, Ornamental fountain installation & Air- conditioning plants etc.

Warranty :

• 1 Year WARRANTY on manufacturing defects only.

Specifications

 :

• Brand: Crompton
• Power : 2 hp
• Weight (Approx.) : 11.7 kg
• Flow Rate : 150 lpm
• Head : 49 meter
