Brand: HPM

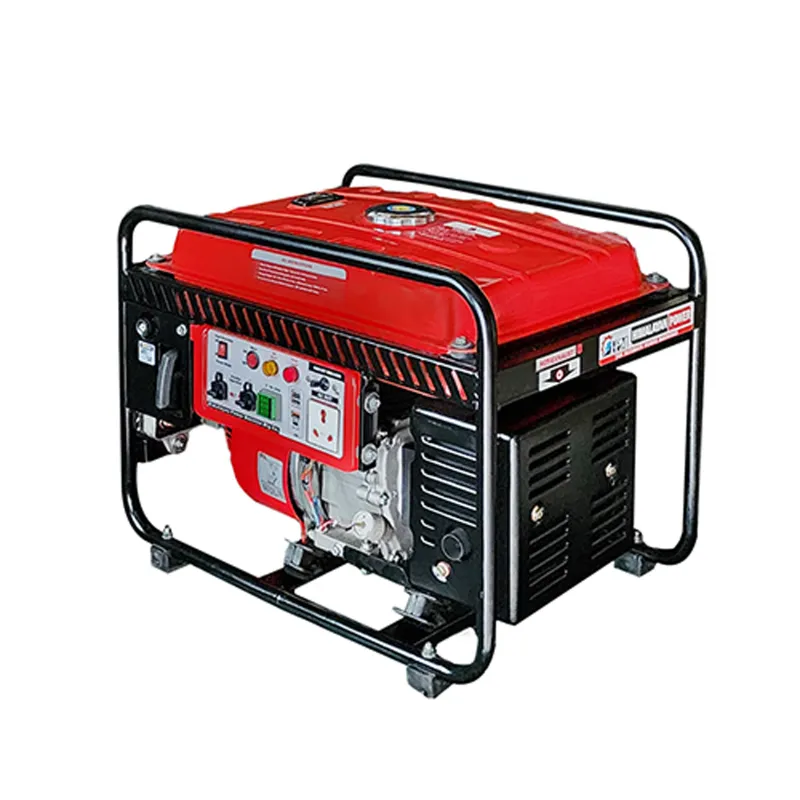

HPM 4 KVA 20.5L Portable Petrol Inverter Generator With Recoil Start(Oasis UL-40i-XL)
SKU: TI-H4-22487
₹69200 (Including GST)
MRP : ₹104930
Get extra ₹1,038 Discount (On Checkout)
Delivery By: May 24 - May 26
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
HPM 4 KVA Petrol Inverter Generator
Recoil Start
16.5 Amp Rated Current Of Generator
20.5 Ltr. Fuel Tank Capacity
14 hrs. Run Time
Country of origin: India
Description
The HPM Oasis UL-40i-XL is a 4 KVA portable petrol inverter generator with recoil start. It delivers clean power, low noise , and high fuel efficiency. Ideal for camping, RVs, and small households, it features automatic voltage regulation, overload protection, and a durable design. Weighs 36.5kg, with extended 20.5L fuel tank for 14 hours runtime.
Features
:- 4 KVA Genset, Ultra-Light Weight, Digital Invertor Based Alternator, Electronic Governor keeps Low Engine RPM at part loads for low fuel consumption.
- Gives a Stable Regulated voltage 230 ± 1 % and Stable Frequency 50 Hz ± 1 % & Pure Sine Wave, THD < 2 %
- To get more Power to Run Heavy Equipment, 2 or More HP 40i Generator can be made to Run In Parallel, Two HP40i Generators in Parallel will produce 4 KVA + 4 KVA = 8 KVA Power
Applications
:- Being Light Weight and Portable Genset, It is very suitable for serving electrical requirements in remote areas / Field applications and running of sensitive Electronic Products Like Laptops / Computers / Digital Appliances, For charging Inverters, for all types of Frequency & Voltage sensitive Equipment’s, Military & Powering Defense Equipment’s Etc.
Specification
:- Brand: HPM
- Weight (Approx.) : 36.5 kg
- Fuel Used : Petrol
- Model No. : Oasis UL-40i-XL
Generator :
- Max AC. Output VA : 4000
- Rated AC. Output VA : 3800
- Rated Current Amps : 16.5
- NFB Amps : 17
- AC. Voltage : 230 Volts ± 1%, 50 Hz ± 1%, Single Phase, THD < 2%
- Alternator Type : Multi-Phase – Permanent Magnet (18 Pole) – Self Excitation
- Invertor : 100 KHz, IGBT Based Digital Invertor – 4 Kw
DC Outputs :
- DC Outputs - 5V to 20 V & DC Ports
- USB Output (1 to 2) : 2* 5V DC, 2.4 A (12W Per Port)
- USB Output Fast Charging QC 3.0 (3) : 1* 5V - 12V DC (18W-Max) 5V3A, 9V 2A, 12V 1.5A
- Type - C USB (4) : 1* 'C' Type - 1* USB C PD 2.0 (30W) 5V 3A, 9V 3A, 12V 1.5A 15 V 1.5A 20 V 1.5A
Engine :
- Model : HM170P
- Type : OHV25°Inclined, Single Cylinder,4 Strokes, S.I, Forced Air Cooling
- Maximum Power : 6.5 HP @ 3600
- Bore x Stroke :70x58 mm
- Displacement : 223 cc
- Starting System : Recoil Start
- Governor : Electronic Governor (Load Sensitive – Variable Speed) Engine RPM 2200 (No Load) to 3800 RPM (at Full load)
- Fuel : Petrol
- Fuel Tank Capacity : Petrol -20.5 Ltr.
- Fuel Consumption : Petrol 1.5 ltr/hr Approx.
- Lube. Oil Capacity : 600 ml.
- Lubricating Oil Consumption : 2.5 gm./Hr.
- Sound level (Db) (from 1 meter) : < 86Db (as per CBCP - II Norms)
- Continues Running (With One Filling) : 14 Hrs. Approx.
Panel & Other Standard Features :
- Multifunction Digital Meter & Indicator : Digital Control Panel (V, Hz, Amp)
- Oil Alert System : Yes
- Over Load Indicator : Yes
- 2 Genset Paralleling Capability : Yes, Red & Black Pair of Sockets Provided in Control Panel for Paralleling of 2 Generators
- Fuel Level Gauge : Yes
- AC On /Off, Overload Protection (NFB) : Yes
- Electronic Over Load Protection : Yes, Inbuilt with Inverter
Accessories
:- Owner Manual 1 pc
- Funnel 1 pc
- Screw Driver 1 pc
- Spanner 1 pc
- Three Pin Plug 1 pc
