Brand: Generic ( Made in India )

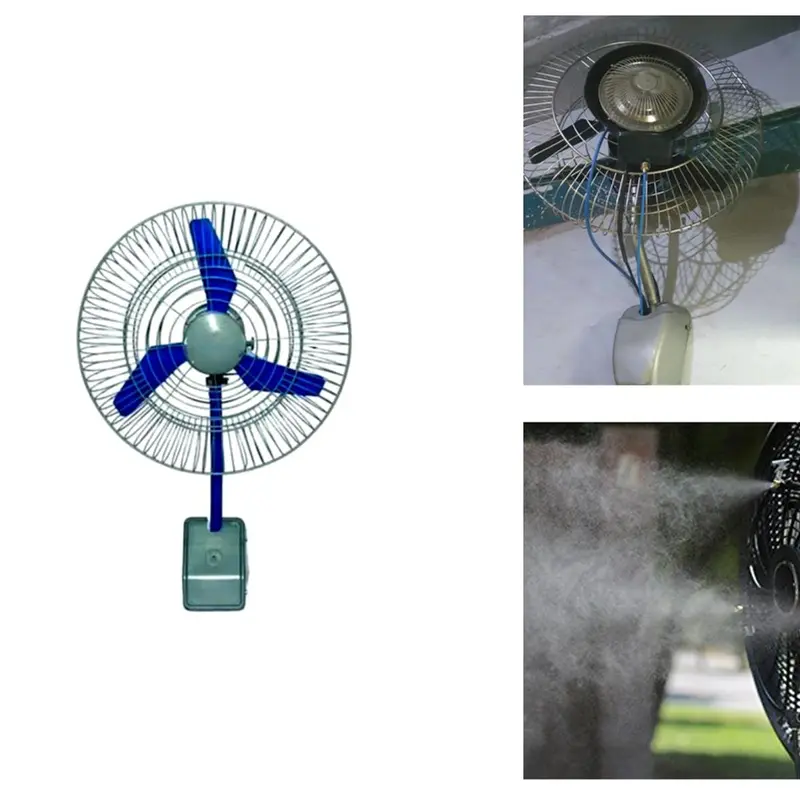

Heavy Duty 26 inch Wall Mounted Water Mist Fan with 40L Water Tank
SKU: JS-PS-20211270
₹30900 (Including GST)
MRP : ₹31950
Get extra ₹464 Discount (On Checkout)
Delivery By: May 31 - Jun 2
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
26 Inch (66.04 cm) Wall Mounted Water Mist Fan
With 40L Water Tank & Misting Device Box
Temperature drop : 3-8 degree
Country of origin: India
Description
A misting fan combines the functionality of a traditional fan with a misting system to provide cooling relief in hot weather. It operates by blowing air while simultaneously releasing a fine mist of water, which helps lower the ambient temperature.
Features
:- Cooling Mechanism: Mist fans operate by spraying a fine mist of water into the air, which evaporates quickly, absorbing heat from the surrounding environment.
- Energy Efficiency: Compared to traditional air conditioning units, mist fans consume significantly less energy, making them an environmentally friendly option for cooling spaces.
- Versatility: Mist fans can be used in various settings, including patios, gardens, poolsides, restaurants, and outdoor events. Their versatility makes them suitable for both residential and commercial applications.
- Easy Maintenance: Most misting systems require minimal maintenance compared to other cooling systems like air conditioners.
Specification
:- Brand: Generic ( Made in India )
- Weight (Approx.) : 30 kg
- Power Source : Electric
- Motor : 100 % Copper winding
- Speed : 3 Level
- Height : 1.65 to 2m
- Blade Size : 26 inch (66.04 cm)
- Grill Type : Metal wire protective grill
- Power Consumption : 165~260w
- Frequency : 50Hz
- Air Flow : 145 m3/min
- Water Flow (Adjustable) : 0-5 ltr/hr
- Blade : Aluminum Connect To Tap Water
- Spray Effective Distance : 10 M
- Water Capacity : 40L
- Temperature drop : 3-8 degree c
- Oscillation Fan : 90 degree
- Material : Metal
Note: The Wall Mount area design may vary.
Usage
:1. Installation:
- Choose the Location: Select an appropriate location for the fan, ideally where it can cover the desired area without obstruction. Ensure that there is access to a water source and electrical outlet if required.
- Mounting the Fan: Use the provided mounting bracket to secure the fan to the wall. Make sure it is at a height that allows for optimal airflow and mist distribution. Use a level to ensure that the fan is straight before securing it completely with screws or bolts.
- Connect Water Supply: Attach a hose from your water source (like a garden hose) to the misting system of the fan. Ensure all connections are tight to prevent leaks.
2. Setup and Configuration:
- Power Connection: If your mist fan operates on electricity, plug it into an appropriate outlet. Ensure that any extension cords used are rated for outdoor use if applicable.
- Adjust Settings: Most wall-mounted mist fans come with adjustable settings for speed and oscillation. Set these according to your cooling needs. Adjust the angle of oscillation if necessary, ensuring it covers the desired area effectively.
3. Operation:
- Turn On the Water Supply: Open the water supply valve connected to your misting system. This will allow water to flow through the nozzles when activated.
- Activate the Fan: Turn on the fan using its control switch or remote control if available. Adjust speed settings as needed; higher speeds may provide more airflow but could also increase water usage.
- Monitor Performance: Observe how well the mist is being distributed in your space. Adjust nozzle angles or fan position if necessary for better coverage. Check for any clogs in nozzles periodically, especially if you notice reduced mist output.
Maintenance:
- Regular Cleaning: Clean filters and nozzles regularly to prevent calcium buildup and ensure optimal performance.
- End of reason Care: Before winter or prolonged non-use, disconnect hoses and drain any remaining water from pumps and lines to prevent freezing damage.
Applications
:- Residential Use: Outdoor mist fans are commonly used in backyards, patios, and gardens to enhance comfort during hot weather. They allow families to enjoy outdoor activities such as barbecues, parties, or simply relaxing outside without the discomfort of high temperatures.
- Hospitality Industry: Restaurants and cafes with outdoor seating areas benefit significantly from misting fans. These fans help maintain a pleasant dining experience for customers by keeping the air cool and comfortable, even on sweltering days.
- Industrial Applications: In industrial settings such as construction sites or factories, outdoor mist fans can help mitigate heat stress among workers. By lowering ambient temperatures, these fans contribute to safer working conditions during hot weather, reducing the risk of heat-related illnesses like heat exhaustion or heat stroke.
- Pet Care Facilities: Outdoor misting fans can be beneficial in pet care facilities such as dog parks or kennels where animals may be exposed to high temperatures. Keeping these areas cool helps ensure the well-being of pets while they play or rest outdoors.
