Brand:  Crompton

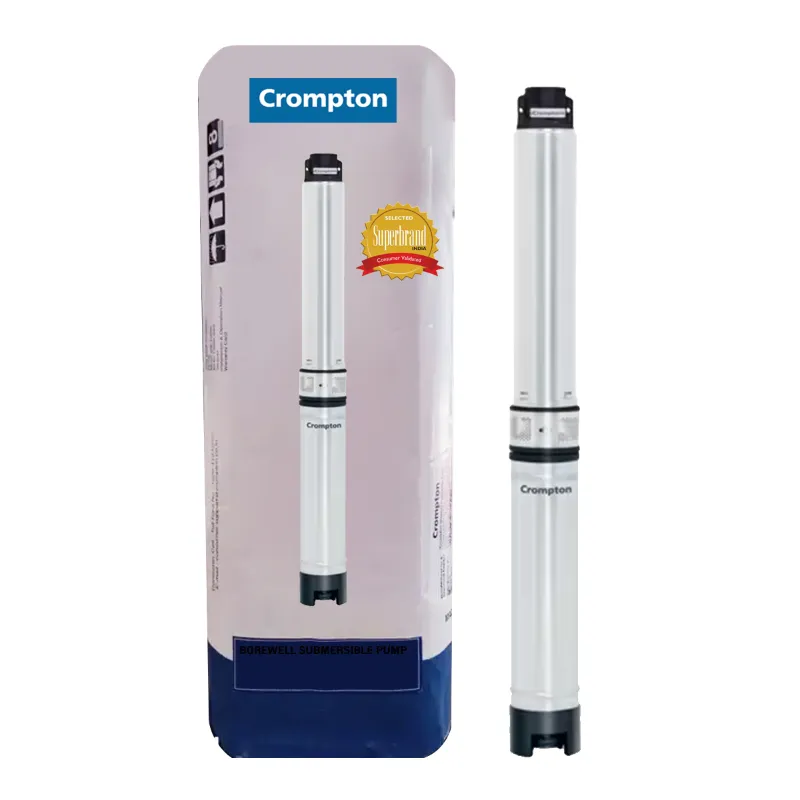

Crompton 2 Hp 18 Stage 4inch(V4) 1Phase Water Filled Borewell Submersible Pump - 1 Year Warranty (4W18BF2E)

4.0 star

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

Short Description

2 Hp Borewell Submersible Pump.

Strong & Robust Mechanical Design.

Low Power Consumption & Easy Maintenance.

High Efficiency with Energy Saving & Can Withstand Back Pressure without Damage.

Specially Designed Thrust Bearing Ensures the Highest Reliability.

Country of origin: India

Description

Crompton 2 Hp 18 Stage 4inch(V4) 1Phase Water Filled Borewell Submersible Pump - 1 Year Warranty (4W18BF2E)

Description :

• A submersible pump is a device in which the pump body is close-coupled to a hermetically sealed motor. Centrifugal pumps with multiple stages that run vertically are known as electric submersible pumps. After being driven by the impeller, liquids lose kinetic energy in the diffuser, where it is transformed into pressure energy. This is how radial and mixed flow pumps function primarily. Multiple stage submersible pumps for borewells are usually used for extracting water for domestic, commercial, municipal, and industrial purposes. They are normally dropped down a borehole.

Features :

• Strong & Robust Mechanical Design.
• Low Power Consumption & Easy Maintenance.
• High Efficiency with Energy Saving & Can Withstand Back Pressure without Damage.
• Specially Designed Thrust Bearing Ensures the Highest Reliability.
• Highly Optimized Hydraulic & Electrical Design Ensures Maximum Efficiency.
• Built-in Check Valve Manages Sudden Back Pressure Avoiding Damage.

Specification :

• Model No : 4W18BF2E
• Product Type : Borewell submersible Pump
• Brand : Crompton

• Wattage : 1.5 kW
• Outlet Size : 32 mm
• Number of Stages : 18
• Electricity Connection : Single Phase

• Voltage : 230 V

• Frequency : 50 Hz
• Borewell Size : 4 inch (100 mm)
• Borewell Type : V4
• Head Range : 30 to 110 Meter (99 to 360 Feet)
• Discharge Range : 95 to 20 LPM (5700 to 1200 LPH)
• Winding Material : Copper

Material Of Construction :

• Diffuser : Noryl
• Impeller : Noryl/Delrin
• Pump Shaft : Stainless Steel-SS410
• NRV Body : Cast Iron-Grade FG 200
• Motor Body : Stainless Steel-SS202/SS304
• Pump Jacket : Cast Iron-Grade FG 200
• Upper Housing, Motor Base : Stainless Steel-SS202
• Bush : Bronze LTB-4
• Motor Shaft : Stainless Steel-SS420
• Stamping : CRNGO-M47
• Thrust Bearing : SS Vs Zytel / SS Vs Carbon
• Strainer : Stainless Steel-SS202
• Fastener : Stainless Steel-SS410
• Sealing : Oil seal

Application :

• Gardening
• Sprinkler irrigation
• Multistoried buildings water supply
• Water supply for domestic and industrial application
• Drip irrigation
• Construction site

Warranty :

• 1 Year Warranty On Manufacturing Defects Only.

Specifications

 :

• Brand: Crompton
• Power : 2 hp
• Weight (Approx.) : 19.5 kg
• Flow Rate : 95 lpm
• Head : 110 meter
