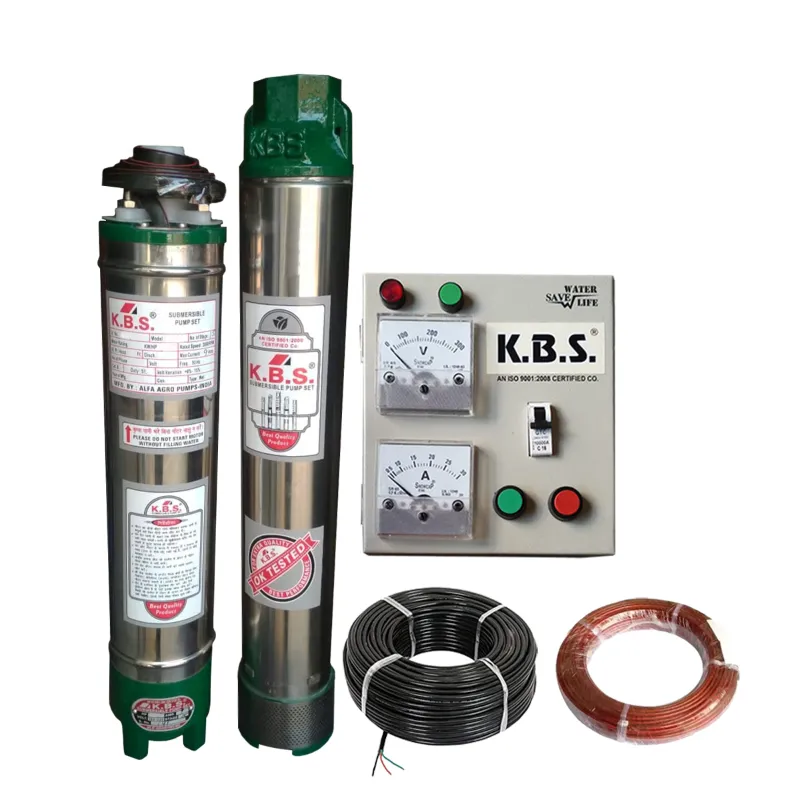

KBS 3Hp 15 Stage(4") V4 1Ph Water Cooled Submersible Pump With CP, 30m Submersible Cable, Safety Wire & 1 Year Warranty

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

Short Description

KBS 3 Hp 1 Phase 15 Stage Submersible Pump With Control Panel

120Ft Max. Head, 200 LPM Max. Flow Rate

4 inch Bore, V4 Type

1 Year Warranty

SPECIAL NOTE : THIS BOREWELL SUBMERSIBLE PUMP WORKS ON AC ELECTRIC POWER SUPPLY AND IS NOT COMPATIBLE WITH SOLAR PANEL SYSTEMS.

Country of origin: India

Description

KBS 3Hp 15 Stage(4") V4 1Ph Water Cooled Submersible Pump With CP, 30m Submersible Cable, Safety Wire & 1 Year Warranty

Features :

• Corrosion resistant stainless steel body
• Specially designed for low voltage working
• High Electrical and Mechanical efficiency
• Higher heat dissipation
• Dynamically balanced rotor and other rotating parts for uniform clearance
• Specially designed bearing to withstand axial thrust loads
• Designed for high voltage fluctuation
• High efficiency, low power consumption.

Specification :

• Product Type : Submersible Pump
• Brand : KBS
• Wattage : 2.2 kW
• Supply Voltage : 200-220 Volt, 50 Hz, AC Power Supply
• Electricity Connection : Single Phase
• No Of Stages : 15 Stage
• Pump Type : V4 Type
• Suitable Bore Size : 4 inch (100 mm)
• Cora : 4
• Max. Head Range : 120 Ft. (37 Meter)
• Max. Flow/Discharge Rate : 200 LPM (12000 LPH)
• Pipe Size (Suction x Delivery) : 50 x 50 mm (2 x 2 inch)

Accessories :

• Control Panel
• 30 Meter Submersible Cable
• Safety Wire

Material Of Construction :

• Motor Body : Stainless Steel
• Motor Rotor : Copper
• Pump Bowl : Noryl (lvory)
• Impeller : Noryl (lvory)
• Motor Pipe : Stainless Steel
• Bearing Bush : Leaded Bronze
• Motor Shaft : SS-410
• Thrust Bearing : Carbon Vs Stainless Steel
• Stamping : CRNGO
• Rotor : EC Grade Copper Conductor
• Housing/Base/Connection Piece : CI (Grade FG-200/FG-220)
• Suction/Outlet : CI (Grade FG-200/FG-220)
• Diffuser : Noryl (Engineering Glass Filled)
• Pump Shaft : SS-410
• Pump Pipe : Stainless Steel

Application :

• Drinking water supply. Domestic & community water supply.
• Drip irrigation, Sprinkler irrigation and gardening.
• Housing-Complexes, Hospitals, High rise building.
• Fire fighting, Landscaping, Fountains, Service stations.
• De-watering of mines, Cooling water circulation and Booster application.

Warranty :

• 1 Year WARRANTY on manufacturing defects only.

Warranty Terms :

• Dry Run Accidental Damages Are not covered in the warranty
• For claiming the warranty please drop a mail at [email protected] with proper bill or Order ID
• You have to send the product to the sellers warehouse.
• Buyer has to bear the courier charges of both side for sending the product.

Specifications

 :

• Brand: KBS
• Power : 3 hp
• Weight (Approx.) : 30.5 kg
• Flow Rate : 200 lpm
• Head : 37 meter
