Brand:  Kirloskar

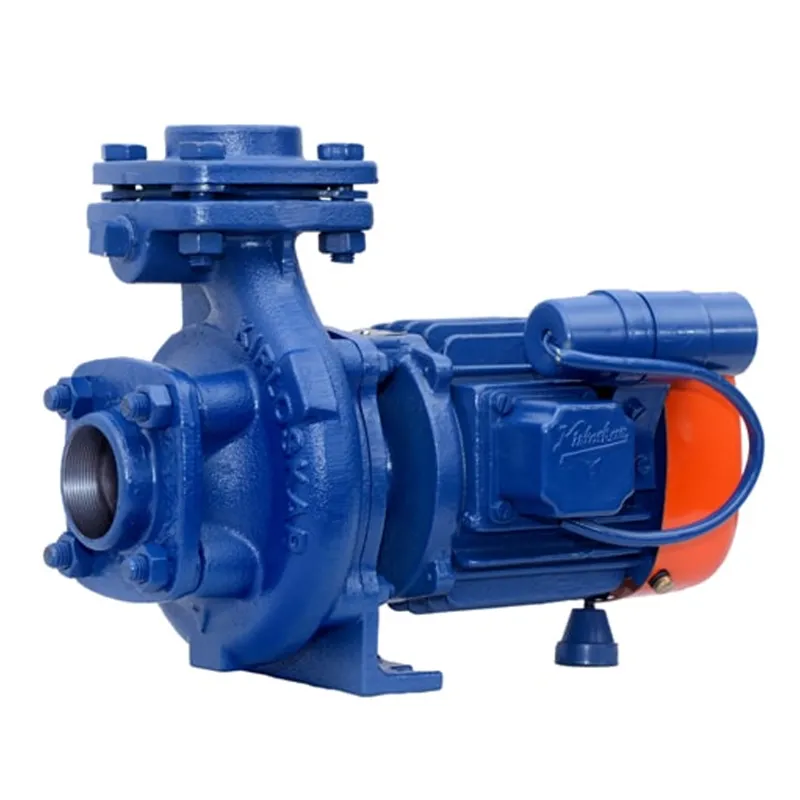

Kirloskar 3Hp 1Phase Centrifugal Monoblock Pump, 1200 LPM Max. Discharge, Size 100x100 mm (KDS-312) - 1 Year Warranty

5.0 star

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

Short Description

Kirloskar 3Hp Monoblock Pump, 100 x 100 mm (KDS-312)

Single Phase Connection

10M Max. Head, 1200 LPM Max. Discharge

1 Year Warranty

Country of origin: India

Description

Kirloskar 3Hp 1Phase Centrifugal Monoblock Pump, 1200 LPM Max. Discharge, Size 100x100 mm (KDS-312) - 1 Year Warranty

Features :

• Wide Voltage Design : The motor is designed to withstand wide voltage fluctuations and reduces motor burning in case of low voltage.
• Replaceable Wearing Parts : All wearing parts within the pumps are easily accessible and replaceable which facilitates ease of maintenance thereby extending the life of the pump.
• TOP - Thermal Overload Protector : The pump set features a Thermal Overload protector that protects the motor from overloading, shielding the motor and associated circuit from the effects of fault current.
• CED – Cathodic Electro Deposition : CED is the latest coating technology for corrosion resistance with uniform coating. It provides 5 times more protection over conventional painting, resulting in longer life. All major CI parts of Kirloskar pumps coming in contact with the water are CED coated.
• Automatic Air Release : Automatically releases air when the pump starts which ensures swifter and smoother operations, thus eliminates the necessity of operating air release cock and ensures swifter and smoother operations.
• High Efficiency And Energy Saving Design : Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings.
• Dynamically Balanced Rotating Parts : Minimum vibrations protect components from damages during the operations, thus ensuring consistent performance as concentricity is maintained.
• Designed to Prevent Overloading : Lesser chances of motor burning as the motor does not get overloaded even if the pump is operated at a head lower than recommended, thus ensuring substantial cost savings due to low maintenance and breakdown.

Specification :

• Model No. : KDS-312
• Product Type : Monoblock Pump
• Brand : Kirloskar
• Power : 2.2 kW
• No. Of Pole : 2
• Rated Voltage : 200 V, 50 Hz, AC Power Supply
• Electricity Connection : Single Phase
• Head Range : 4 to 10 Meter (13 to 33 Feet)
• Pipe Size (Suction x Delivery) : 100 x 100 mm
• Discharge Rate : 1200 to 600 LPM (72000 - 36000 LPH)
• Insulation : B / F Class
• Protection : IP 44 / IP 55

Material Of Construction :

• Impeller : Cast Iron/Noryl
• Delivery Casing : Cast Iron
• Motor Body : Cast Iron
• Pump Shaft : Carbon Steel
• Sealing : Mechanical Seal

Application :

• Gardening and small farm irrigation
• Lawn sprinklers
• Water supply for high rise buildings
• Domestic and community water supply
• Water transfer and circulation

WARRANTY :

• 1 Year Onsite Warranty

Specifications

 :

• Brand: Kirloskar
• Power : 3 hp
• Weight (Approx.) : 55 kg
• Flow Rate : 1200 lpm
• Head : 10 meter
