Brand: Generic (Imported)

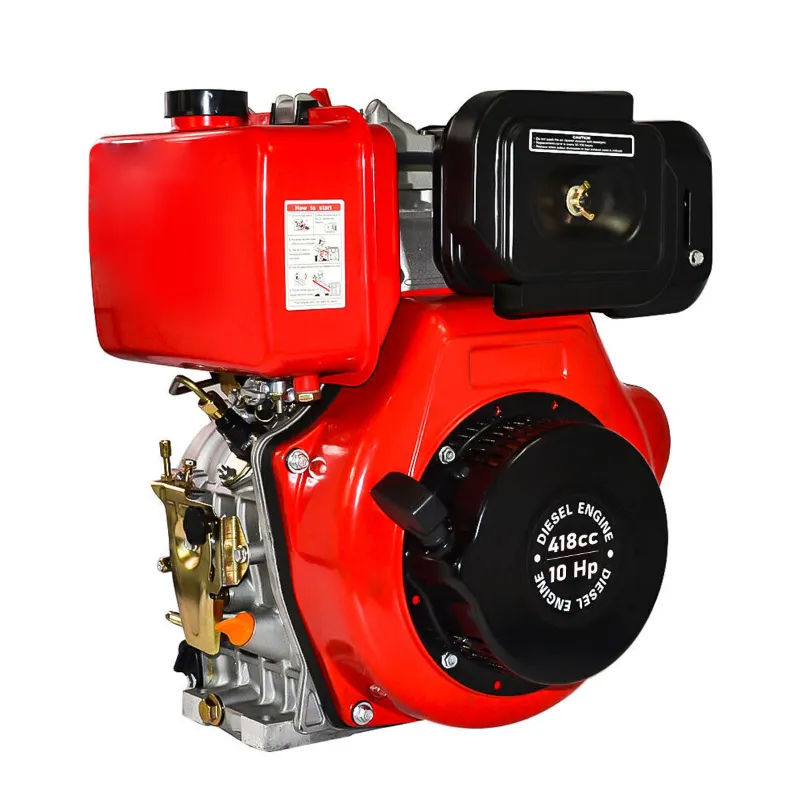

Heavy Duty 418cc (10 Hp) 4-Stroke Single Cylinder Recoil Start Shaft Spline Type Diesel Engine With 5.5L Fuel Tank
SKU: TI-HD-20931
₹38999 (Including GST)
MRP : ₹42000
Get extra ₹585 Discount (On Checkout)
Delivery By: May 21 - May 23
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
418cc 10Hp Recoil Start SHAFT SPLINE TYPE Diesel Engine
4-Stroke Single Cylinder
3600 RPM Speed
5.5 Liter Fuel Tank
NOTE : THIS IS NOT A GENERATOR; IT'S AN ENGINE. IT DOESN'T GENERATE ANY ELECTRICITY. IT IS POWERED BY FUEL AND IT'S AN ALTERNATIVE OF MOTOR.
Country of origin: China
Description
The 418cc, 10hp recoil start diesel engine is a compact and efficient power unit designed for various applications, including small machinery, generators, and agricultural equipment. This engine type is particularly valued for its durability, fuel efficiency, and ease of use. The engine has a displacement of 418cc, which refers to the total volume of all the cylinders in the engine. As a diesel engine, it operates on diesel fuel, which is known for its higher energy density compared to gasoline. The recoil start mechanism allows for easy ignition of the engine.
Features
:- Direct Injection
- Efficient Air Cleaner System
- Low Noise and Stability
- Recoil Start
- Compact structure & small size
- Light weight
- Optimize fuel system and intake and exhaust system to save energy and fuel
Specification
:- Brand: Generic (Imported)
- Weight (Approx.) : 50 kg
- Fuel Used : Diesel
- Product Type : Recoil Start Diesel Engine
- Brand : Generic (Imported)
- Engine Type : Air Cooled, 4-Stroke, Single Cylinder, Vertical, SHAFT SPLINE TYPE
- Displacement : 418 CC
- Output Power : 10 Hp
- Bore X Stroke : 86 X 72
- Combustion System : Direct Injection
- Direction of Rotation : Counterclockwise from flywheel end
- Fuel Tank Capacity : 5.5 Liter
- Lubricating Oil Capacity : 1.65 Liter
- Lubricating System : Pressure Splashed
- Starting System : Recoil Starter
- Rated Speed : 3600 RPM
- Compression Ratio : 19:01
- Fuel Consumption Rate : 280 g/kw.h
- Shaft Diameter : 1″ Diameter
Applications
:- Use for products like Generators, Road Roller, Tamping Rammer, Scarifying Machine, Concrete Cutter, Diesel Power Trowel, Diesel Water Pumps, Agricultural Machine, Diesel Power Tillers Lawn and Garden Machinery, Engineering Machinery etc.
