Brand: Generic (Imported)

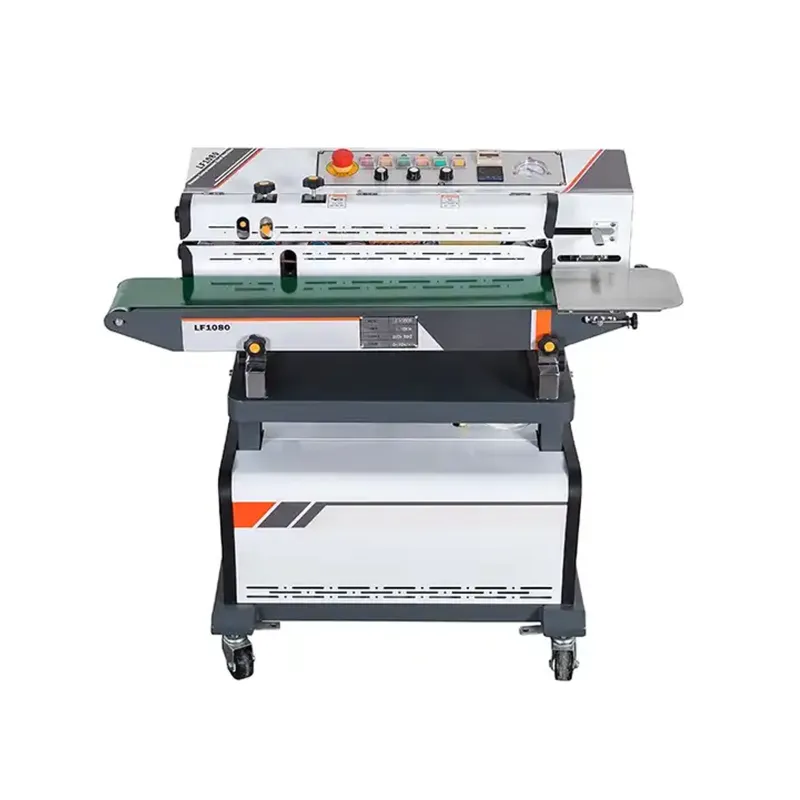

SMART LF 1080B 110-220 V 1.15KW Continuous Band Sealer with Vacuum and Nitrogen Function
SKU: TI-CH-12284
₹90499 (Including GST)
Get extra ₹1,357 Discount (On Checkout)
Delivery By: May 21 - May 23
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
SMART LF 1080B 110-220 V 50 W Continuous Band Sealer with Vacuum and Nitrogen Function
Sealing Speed 0-10 m/min
Sealing Width 6-12 mm
Country of origin: China
Description
This SMART LF 1080B is a continuous band sealing machine designed for packaging applications. It operates on a voltage range of 110-220 V and has a power rating of 1.15 KW. This machine features both vacuum and nitrogen functions, which are essential for preserving the freshness of packaged products by removing air and replacing it with nitrogen, thereby extending shelf life. The continuous band sealer is suitable for sealing high graded pouches like laminated pouches.
Features
:- High precision processed driving wheel
- Conveyor can be easily adjusted up, down, ahead or back according to the size of the products
- Solid ink printing technology available in this machine
- It can do normal sealing, vacuum sealing, nitrogen flushing sealing.
- Product marked as Intelligent Advance packing machinery section with best appropriate performance.
Specification
:- Brand: Generic (Imported)
- Weight (Approx.) : 84 kg
- Voltage : 110/220V
- Frequency : 50-60Hz
- Motor Power : 50W
- Fan : 15 W
- Sealing Power : 220W x 2
- Vacuum Pump : 900 W
- Loading Capacity : 3 Kg
- Panel Type : Digital
- Sealing Speed : 0-10 m/min
- Sealing Width : 6-12 mm
- Temperature : 0-300 Degree Celsius
- Max Conveyor Loading : <3 Kg
- Dimension(L x W x H) : 102 x 48 x (92.5+14 Adjustable ) cm
Note :
- Conveyor belt color may vary.
- Suitable for high graded pouches, like laminated pouches.
- If you make full online payment on this product then you will get instant discount on your purchase.
Usage
:Preparation :
- Ensure the machine is placed on a flat surface.
- Check all parts for looseness and tighten if necessary.
Power On :
- Turn on the power switch and ensure the power indicator light is on.
Set Temperature :
- Press the heating switch to activate heating.
- Adjust the temperature using the temperature controller according to the thickness of the bag.
Speed Adjustment :
- Adjust the speed regulator knob to set the desired sealing speed.
Air Suction and Gas Flushing :
- Activate air suction or nitrogen flushing as per packing needs by turning on their respective switches.
Sealing Process :
- When reaching desired temperature, insert air suction nozzle into plastic bag.
- Step on foot switch to start air suction, then slowly remove nozzle from bag.
Maintenance :
- Keep the Machine Clean : Ensure that the machine body is clean and that electrical components are kept dry and well-ventilated.
- Daily Checks : Before starting work each day, check for any loose screws in moving parts to ensure safe operation.
Applications
:- Food Packaging : It is ideal for packaging food products that require preservation of freshness, as it can vacuum seal and fill bags with nitrogen or other gases to prevent spoilage.
- Pharmaceuticals : The machine is suitable for sealing pharmaceutical products, ensuring that they remain uncontaminated and stable during storage.
- Chemical Industry : The sealer can be used for packaging chemicals, providing secure seals that prevent leaks and contamination.
- Electronics : It is also applicable in the electronics sector for sealing components that need protection from moisture and dust.
