Brand: CROSSBEE

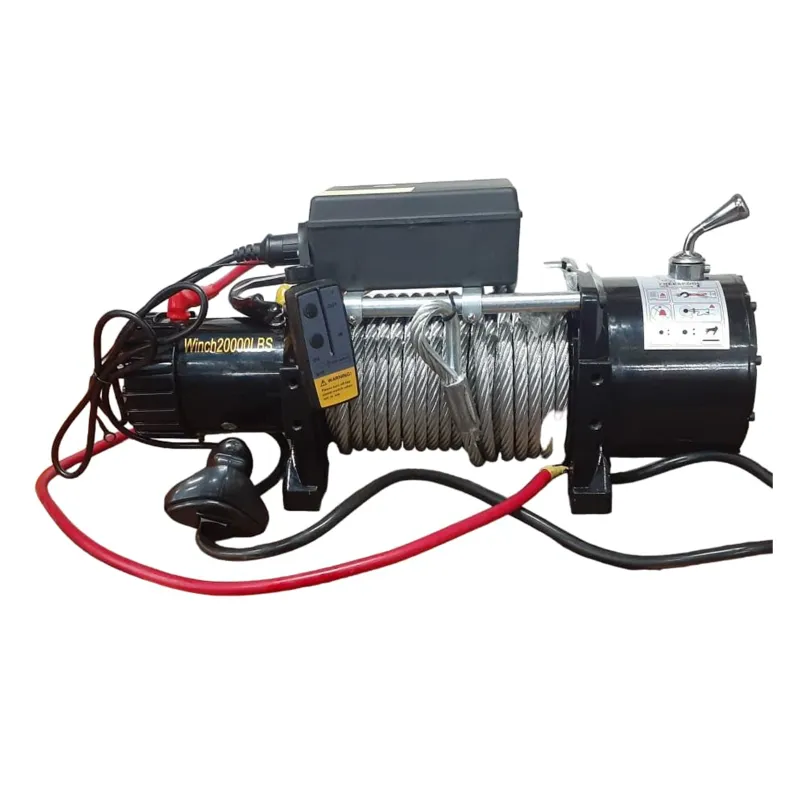

Crossbee 20000 LBS Jeep Winch With 7.1 HP Motor, Wire Rope : 19 X 7 & Wire Length: 27M X 9.5MM
SKU: TI-C2-17458
₹51600 (Including GST)
MRP : ₹67080
Get extra ₹774 Discount (On Checkout)
Delivery By: May 26 - May 28
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
20000LBs (9071 Kg) Electric Winch
6.0 Hp/4.5 Kw Series Wound Motor
Automatic In-The-Drum Breaking Action
Country of origin: China
Description
The Electric Winch is a traction device for vehicles and ships. It can save and rescue in harsh such as snow, marshes, deserts, beaches, and muddy mountain roads. The Electric Winch can perform operations such as clearing obstacles, hauling items, and installing facilities. It is an indispensable device for military police, petroleum, hydrology, forestry, transportation, public security, border defense, fire fighting, and other outdoor sports.
Features
:- High-efficiency permanent magnet 5.2 Kw/7.1 hp motor for power and fast line speed, DC 12V or DC 24V Power drive optional.
- 20000 lbs pull capacity electric winch for ATV/UTV with compact structure and cheap price.
- Equipped with a gear reduction ratio of 265 : 1 and 3-stage planetary gear train to born with stronger pulling capacity.
- Dual remote control mode, wired remote control, and wireless remote control.
- Free spooling with sliding ring gear, easy to operate.
- Designed to keep dust and water out with an IP67 waterproof rating.
- It is generally installed in the middle of the front car and connected with the car frame, exposed or hidden in the bumper.
Specification
:- Brand: CROSSBEE
- Weight (Approx.) : 49 kg
- Load Capacity : 2000 lbs
- Product Type : Electric Winch
- Brand : Crossbee
- Motor : 5.2 KW/7.1 HP Series Wound
- Control : Remote Switch,
- Gear Train : 3 Stage Planetary
- Gear Reduction Ratio : 265 : 1
- Clutch : Sliding Ring Gear
- Breaking Action : Automatic In-The-Drum
- Drum Size : 64 mm x 224 mm
- Cable : 11 mm x 24 mm
- Wire Rope & Length
- Fairlead : 4-Way Roller Fairlead
- Remote Control : Included
- Wire Rope & Length : 19 x 7 & 27 Meter x 9.5 mm
Applications
:SUVs, ATVs, UTVs, car, boats, trucks, jeeps, modified vehicles, and multi-purpose utility trailers
Accessories
:- 1 Electric Winch
- 1 Clevis Hook
- 1 Roller Fairlead
- 1 Coil
- 1 Winch Control
- 1 Wireless Remote
