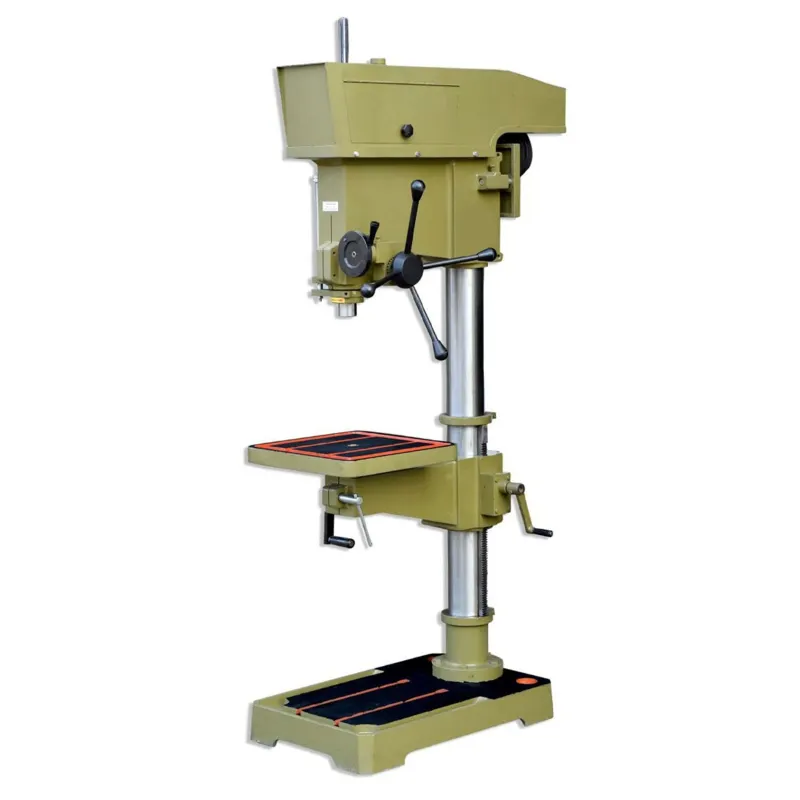

Commercial Bench Drill Machine 32 x 370 mm without Motor

• The bench drill is used for heavy-duty drilling and making holes in wood, metal, aluminum steel, etc.
• These machines are primarily used for several drilling purposes and are configured on the lines of advanced technological procedures.
• Bench pillar drill or pedestal drill as it is called is used mainly in workshops, garages, and small industries where very accurate vertical drilling is required.

• Ergonomically Design
• For Commercial Usage
• Efficient Usage

• Required Motor : 1.5 HP
• Tilting Working Table : Fixed
• Pillar Diameter : 106 mm
• Table Travel  : 420 mm
• Taper In Spindle : MT-4
• Number Of Speed : 8 Speed
• Range Of Speed : 75 to 1970 RPM
• Table Size : 330 x 360mm
• Base Size(m/a area in mm) : 465 x 710mm
• Over All Base Size : 470 x 715mm
• Spindle Travel : 255 mm
• Pillar Length : 1410 mm
• Over All Height With Pulley Guard : 1730 mm
• V-Belt Section : B-61"
• Spindle Nose To Base Distance : 650 mm
• Distance From Spindle Nose To Base Distance  : 1060 mm
• Distance From Spindle Centre To Pillar Surface : 370 mm
• Shipping Dimension (L x W x H) : 850 x 480 x 1770 mm

Specifications
