Brand: CRI
CRI 1 Hp 1Phase Pressure Booster Pump With 24L Tank & Accessories For 3 BHK, 4-5 Bathrooms (MHBS-5/05)-1 Year Warranty
SKU: TI-C1-20536
₹27490 (Including GST)
MRP : ₹35000
Get extra ₹412 Discount (On Checkout)
Delivery By: May 30 - Jun 1
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description

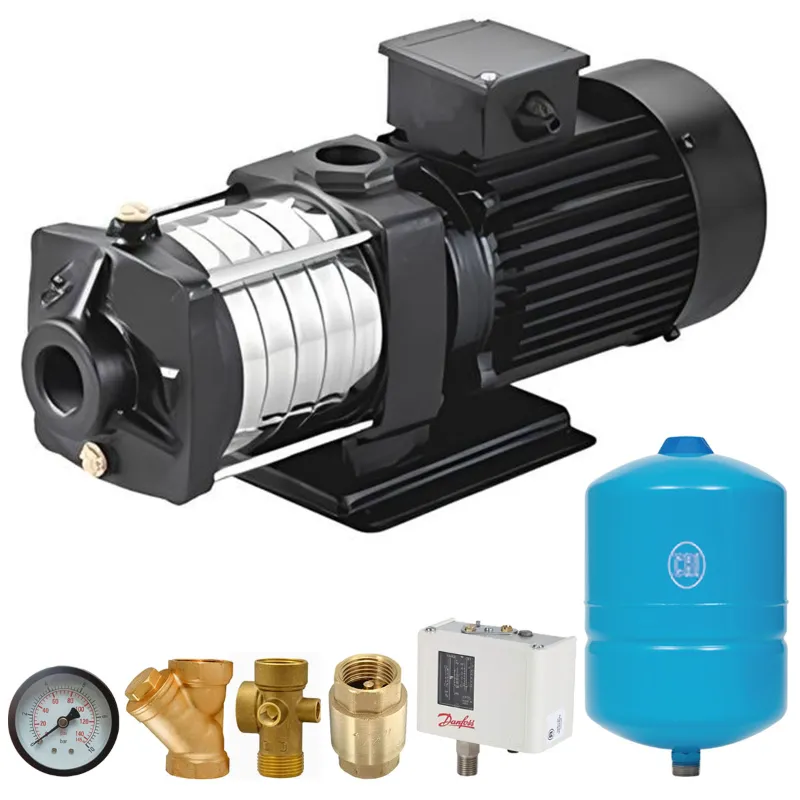

CRI 1 Hp Single Phase Water Pressure Booster Pump (MHBS-5/05)
With 24 Liter Pressure Tank and Accessories
45m Max. Head, 133 LPM Max. Discharge
1 Year Warranty
Country of origin: India
Description
C.R.I. Pressure Booster system has a complete combo package for water pressure boosting and it is precisely designed for hassle free performance. The complete system developed to preserve constant water pressure in all outlets, whenever pressure drops/attains to the desired level, pump will Start/Stop automatically. Over all compactness of the pressure boosters consumes lesser space and quality assured components were used for high accuracy, so that noise level will be in limit. We could proudly say, C.R.I. Pressure Boosters are "Fit and Forget" products.
Features
:- Ensures even pressure at all the water outlets.
- Automatic pump ON & OFF when it senses variation in pressure based on water consumption.
- In-built thermal overload protector, protects motor from overload fault.
- Lesser running cost than the conventional systems.
- Factory tested system and supplied as a package.
Specification
:- Brand: CRI
- Power : 1 hp
- Weight (Approx.) : 28 kg
- Flow Rate : 133 lpm
- Head : 45 meter
- Model No. : MHBS-5/05
- Product Type : Water Pressure Booster Pump
- Brand : CRI
- Wattage : 0.75 kW
- Electricity Connection : Single Phase
- Rated Voltage : 220 to 240 Volt, 50 Hz, AC Power Supply
- Head Range : 45 to 15 Meter (147 to 49 Feet)
- Discharge Range : 0 to 133 LPM (0 to 7980 LPH)
- Pipe Size (Suction X Delivery) : 25X25 mm
- Pressure Tank Size : 24 Liter
- Suitable For : 3 BHK (Bedroom, Hall, Kitchen)
- No. Of Bathroom Suitable For : 4-5 Bathroom
- No. Of Taps Suitable For : 15 Taps
- Speed : 2880 RPM
- Maximum Pressure : 5.5 Bar
- Liquid Temperature Upto : 90°C (Applicable only for special mechanical seal)
Material Of Construction :
- Pump Shell : SS 304
- Suction & Discharge Chamber : Cast Iron
- Rotor : Aluminium Die Cast
- Motor Body : Aluminium Extruded
- Motor Shaft : SS 410
- Impeller : Stainless Steel
Accessories
:- 24 Liter Bladder Type Pressure Tank
- Non Return Valve
- Danfoss Pressure Switch
- Pressure Gauge
- Y-Strainer
- 5 Way Connector
Applications
:- Residential Buildings
- Industries
- Hotels
- Hospital
- Apartments
- Bungalows
Warranty :
- 1 Year Warranty on Manufacturing Defects Only
