Brand: Vukar

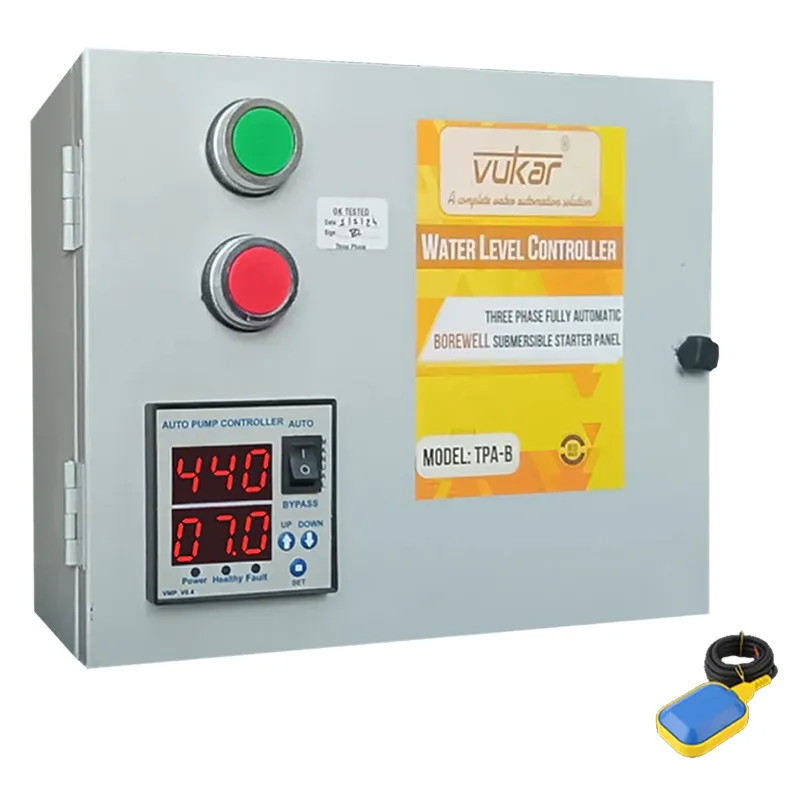

Vukar 3Hp 3Ph Fully Automatic Water Level Controller Borewell Starter Panel with Float Switch (TPA-B)-3 Months Warranty
SKU: TB-VU-28482
₹4499 (Including GST)
MRP : ₹5614
Get extra ₹67 Discount (On Checkout)
Delivery By: May 23 - May 25
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Vukar Upto 3 Hp Three Phase Borewell Submersible Starter Panel (TPA-B)
With Float Switch
Fully Automatic Water Level Controller
3 Months Warranty
Country of origin: India
Description
The Vukar Three Phase Digital Automatic Borewell Water Level Controller Motor Starter is an advanced device designed to manage the operation of three-phase borewell submersible pumps. It ensures efficient water management by automatically controlling the pump based on the water level in the tank.
Features
:- Fully automatic operation : Motor will turn ON and OFF as per the water level in the overhead tank. When the water gets empty in borewell, the motor will automatically stop.
- Borewell Recharge Timer : When water in the borewell is empty, it will stop the motor automatically. When the borewell recharges, the motor will start automatically based on the borewell recharge timer.
- Motor overload protection : It has inbuilt overload protection to protect the motor. Users can set the overload setting as per motor rating.
- Motor dry run protection : It has inbuilt motor protection device. It has dry run protection to protect the motor. Users can set the dry run setting as per motor rating.
- Voltage protection : It has an inbuilt voltage protection device. Motor will turn off when the supply voltage is not within the range of overvoltage and under-voltage set by the user. It protects the motor from voltage fluctuation.
- Digital display : It has a dual display. It displays voltage, ampere, timer and fault of the motor.
- Single phase preventer : It has inbuilt single phase prevent. It detects the phase loss condition and stops the motor immediately.
- Phase sequence detector : It detects the sequence of the R,Y,B phase. When the power cables are not connected properly or when phase sequence changes, it protects the motor.
- Includes cable float switch : It includes the cable float switch sensor as a water level sensor.
- 100% safe & shockproof : Water level sensor operates in +3V DC voltage. In case of sensor failure, there is no chance for the leakage of current. It is 100% safe to use in any water tank.
- ISI wiring : This starter panel uses the lug based ISI wiring. Ampere capacity of the wires used is 2x capacity of the rated ampere. ISI standard wires are recommended to use with the rated amperage as per HP rating of the motor. It is necessary to use the lug wiring with the power wiring for water pump application to ensure the long life of the motor.
- Use of transformer coil : It has inbuilt heavy quality transformer coil. Transformer coil isolates the main input power to the control unit. This increases the reliability, safety and life cycle of the control unit.
- Electric contactor : Electric contactor is used to isolate the input power and motor connections. Ampere rating of the electrical point of the contactor is 2x capacity of the rated ampere.
- Powder coated metal enclosure : It has a shockproof heavy duty powder coated metal enclosure. Powder coated metal enclosures ensure the product should be delivered to the customer without any physical damage to the customer.
- Spare parts availability : Each Spare part is easily available in local markets all over India. User is not dependent on a specific manufacturer in case of immediate repair of any spare parts.
- 100% Technical support :We offer excellent technical customer care support to our clients.
Specification
:- Brand: Vukar
- Weight (Approx.) : 5 kg
- Model : TPA-B
- Item Code : TPA-B1
- Product Type : Borewell Submersible Starter Panel
- Power : Upto 3 Hp (2.2 kW)
- Electricity Connection : Three Phase
- With Float Switch : Yes
- Fully Automatic Operation : Yes
Accessories
:- Float Switch
Applications
:- Domestic
- Industrial
WARRANTY :
- 3 Months Warranty
