Brand: KisanKraft

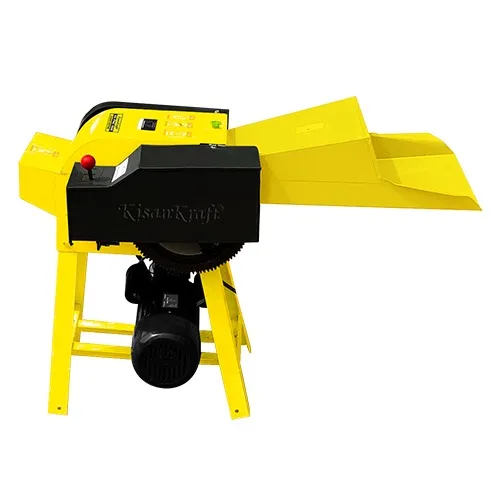

KisanKraft KK-FMC-500 Chaff/Grass Cutter With 3 HP Motor, 600-1000 Kg/hr Cutting Capacity
SKU: TI-KK-18538
₹38350 (Including GST)
MRP : ₹40100
Get extra ₹575 Discount (On Checkout)
Delivery By: May 26 - May 28
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
KisanKraft KK-FMC-500 Chaff/Grass Cutter,
3 HP Motor, 600-1000 Kg/hr Cutting Capacity
Country of origin: India
Description
The KisanKraft KK-FMC-500 Chaff/Grass cutter is a mechanical device designed for the purpose of cutting hay, straw, grass, etc. into uniform pieces which can be further mixed with other forage materials which will be used as fodder for cattle and livestock. This machine operates using a 3 HP electric motor and can easily carry out high volume cutting operations which can solve the feeding requirements of a large commercial farm or agricultural owners who own a large number of cattle and livestock. Overall, this machine automates the fodder preparation process and reduces the time and labour required to prepare fodder for the animals. The heavy duty hardened blade helps in achieving desired cutting results cuts the raw material into uniform pieces which aid in the digestion of the animals and prevents them from rejecting any part of their feed. This machine is perfectly suitable for carrying out high volume cutting operations because of the cutting capacity it offers and at the same time this machine is build using durable materials and comparatively consumes less power along with low cost of maintenance.
Features
:- Efficient Cutting: Designed to finely chop straw and fodder, enhancing feed digestibility.
- Ease of Operation: User-friendly design facilitates simple handling and operation, reducing labor requirements.
- Durability: Constructed from high-quality materials to ensure longevity and withstand rigorous use.
- Compact Size: Space-saving design makes it suitable for both small farms and large agricultural operations.
Specification
:- Brand: KisanKraft
- Material : Mild Steel
- Weight (Approx.) : 45 kg
- Model No. : KK-FMC-500
- Motor Power : 3 HP
- Motor Speed : 2800 RPM
- Power Source : Electric
- Voltage : 220 V
- Ampere : 18.5 A
- Cutting Capacity : 600-1000 Kg/hr
Usage
:1. Preparation and Setup:
- Location: Choose a flat, stable surface for the chaff cutter. Ensure that the area is clear of any obstacles or flammable materials.
- Power Supply: The user needs to connect a motor to an appropriate power source, in order to start working.
- Safety Gear: Wear appropriate safety gear, including gloves, goggles, and ear protection, as operating machinery can be noisy and potentially hazardous.
2. Loading Material:
- Prepare the material (straw or hay) you wish to cut. It should be dry and free from foreign objects like stones or metal pieces.
- Feed the material into the hopper of the chaff cutter slowly and steadily. Avoid overloading the machine as this can cause jams or damage.
3. Starting the Machine:
- Turn on the power switch of the motor-operated chaff cutter.
- Allow the machine to reach its full operational speed before feeding in more material.
4. Cutting Process:
- As you feed material into the hopper, monitor its progress through the cutting mechanism.
- Adjust your feeding speed based on how quickly the machine processes the material; do not force too much at once.
5. Collecting Chaff:
- The cut chaff will exit from a designated outlet. Position containers or bags underneath this outlet to collect the chopped material efficiently.
- Ensure that no one stands directly behind or near this outlet during operation.
6. Shutting Down:
- Once you have finished cutting, turn off the motor using its designated switch.
- Wait for all moving parts to come to a complete stop before attempting any maintenance or cleaning.
Maintenance:
- Regular Inspections: Conduct regular checks on the chaff cutter parts. Pay particular attention to bolts and nuts; if any are loose, tighten them immediately to prevent operational issues.
- Lubrication: Every part of the chaff cutter requires lubrication. Clean the components thoroughly before adding lithium grease. Ensure that the gearbox is lubricated with oil every season, while the main bearing should be lubricated at least once a year.
- Dust Removal: When adding lubricating oil, it is crucial to remove any dust or debris to avoid contamination that could impair functionality.
- Wear and Deformation Checks: Regularly check all parts for signs of wear or deformation. If any issues are identified, replace those parts promptly to maintain safe operation.
Applications
:- Preparation of Fodder: Chaff cutters are primarily used for the preparation of fodder on farms. They help in cutting straw, hay, and plant materials into smaller pieces, making it easier for cattle to consume.
- Bedding Material Preparation: Another application of chaff cutters is in preparing bedding material for livestock. Shredded fodder from chaff cutters creates soft bedding that enhances the welfare of animals, especially during colder months. The shredded bedding has the ability to absorb moisture effectively, leading to a cleaner environment for the animals.
- Composting: Chaff cutters can also be used to facilitate composting on farms. By shredding plant materials into smaller particles, chaff cutters increase the surface area available for microbial activity during decomposition. This accelerates the composting process, leading to faster breakdown of organic waste into nutrient-rich compost.
- Time & Labor Savings: This machine not only helps in fodder preparation but also saves a lot of time by automating the process of cutting fodder and saving both time and labor.
- Waste Reduction: It helps in efficient waste management as no plant product is left out as waste. They are utilized by converting them into fodder for cattle.
