Brand: Crimscent

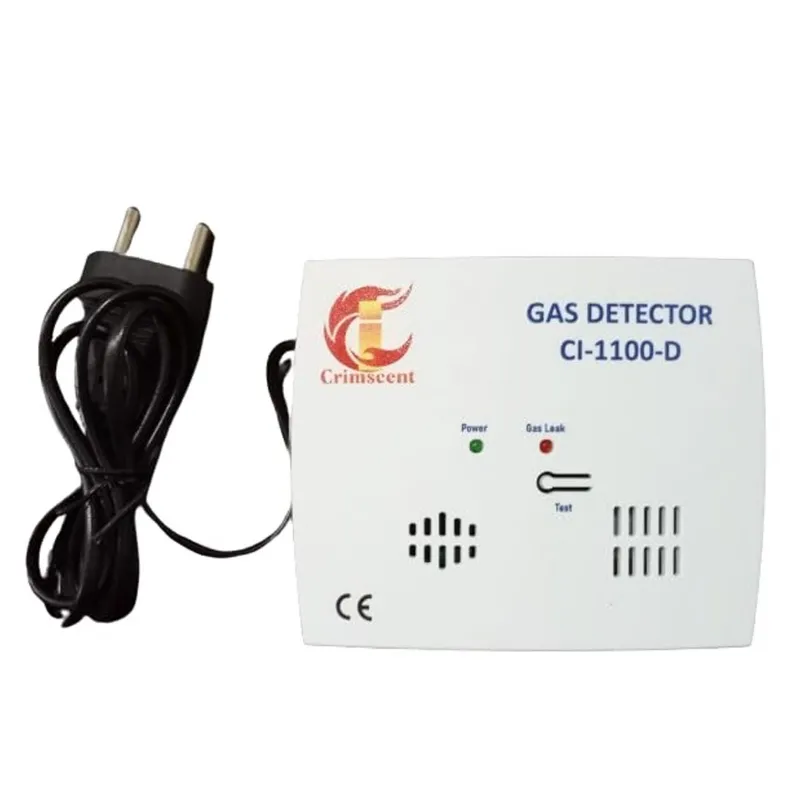

Crimscent (CI-1100-D) Residential Domestic Gas Detector- 230 VAC
SKU: TI-CC-23752
₹1295 (Including GST)
MRP : ₹2000
Get extra ₹19 Discount (On Checkout)
Delivery By: May 29 - May 31
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
230VAC Operation
Self-purging semiconductor sensor requires no maintenance or recalibration
SPDT (Form C) alarm Relay and SPST (Form A) trouble relay are designed for seamless connection to control panels or other devices
In-built buzzer with a sound level of 85dB
Red and Green LED status indicators
Country of origin: India
Description
Crimscent CI-1100-D Residential Domestic Gas Detector is a small, dependable gas leak detector made especially for home and residential use. Constructed with a sturdy plastic body, this gadget detects common gases used in houses, including coal gas, natural gas (methane), and liquefied petroleum gas ( LPG ), providing early warning against gas leaks and guaranteeing household safety.
Features
:- High-Sensitivity Gas Detection: Accurately detects LPG, methane, and other combustible gases commonly used in residential kitchens and heating systems, ensuring early leak detection.
- Durable Plastic Body: Designed with a sturdy, lightweight plastic casing that blends seamlessly into home environments, offering long-lasting performance without compromising aesthetics.
- Audible Alarm: Equipped with a buzzer built-in alarm system that triggers when gas concentrations exceed safe levels, alerting residents immediately to potential leaks.
- Visual Indicators: Features LED lights for power, status, and gas detection, making it easy for users to monitor the device’s functionality at a glance.
- Wall-Mount Design: Compact and easy to install, the CI-1100-D can be mounted on walls near gas appliances or pipelines, ensuring optimal gas detection coverage.
- Low Power Consumption: Designed for energy efficiency, the detector operates with minimal power usage, making it cost-effective for long-term use in homes.
- User-Friendly Operation: Simple to install and maintain, with an intuitive design that requires minimal interaction from users, making it suitable for all households.
- Self-Diagnostic Function: Continuously monitors its internal components to ensure reliable operation and notify users of any malfunctions.
- Automatic Reset: Once gas levels return to safe concentrations, the device automatically resets, ensuring continuous protection without requiring manual intervention.
Function:
- Input Power
The detector uses a full-wave bridge rectifier so it is independent of input power polarity. It operates on AC or DC voltages from 12 V to 24 V. A switching regulator is used to efficiently match the wide input voltage range to the fixed internal power system.
- Status LEDs
The detector has one green and one red status LED on the front of the detector. The detector has an internal two-minute time delay that prevents alarms during the warm-up of the gas sensor. During the warm-up period, the green LED light flashes. Once the delay is over, the continuous green light indicates normal operation. The detector has a supervisory circuit of critical functions. A trouble condition, due to a failure of a non-reliable component, results in both lights flashing and the trouble relay activating. A power failure also causes the trouble relay to activate. The red LED turns on at the same time the alarm relay activates to indicate the alarm condition.
Specification
:- Brand: Crimscent
- Weight (Approx.) : 350 gm
- Model No.: CI-1100-D
- Electrical:
Alarm: At 12 VDC: 70 mA; at 24 VDC: 35 mA
At 12 VAC: 100 mA; at 24 VAC: 65 mA
Standby: At 12 VDC: 45 mA; at 24 VDC: 22 mA
At 12 VAC: 65 mA; at 24 VAC: 45 mA
Voltage:
VAC input: 12 VAC to 24 VAC, 50 Hz or 60 Hz
At 12 VAC: 100 mA; at 24 VAC: 65 mA
Standby: At 12 VDC: 45 mA; at 24 VDC: 22 mA
At 12 VAC: 65 mA; at 24 VAC: 45 mA
Voltage:
VAC input: 12 VAC to 24 VAC, 50 Hz or 60 Hz
- Environmental:
- Mechanical:
Dimensions(H x W x D): 4.5 in. x 5.0 in. x 1. 625 in. (11.4 cm x 12.7 cm x 4.1 cm)
Relay Configuration: one SPDT (Form C)
Relay Rating: 0.125 A, 40 V, 3 VA
Set Point: 25% of LEL for propane or methane
- Outputs:
Relay Configuration: one SPDT (Form C)
Relay Rating: 0.125 A, 40 V, 3 VA
Set Point: 25% of LEL for propane or methane
Trouble:
Relay Configuration: one SPST (Form A)
Relay Rating: 0.25 A, 40 v, 10 VA
Relay Configuration: one SPST (Form A)
Relay Rating: 0.25 A, 40 v, 10 VA
Applications
:Use in places that aren't dangerous, like homes, shops, offices, and institutions. In rooms that include gas appliances or are vulnerable to gas seepage, it is typically fitted.
Note:
- Do not use in industrial locations such as factories, refineries, and chemical plants.
- The CI-1100-D does not detect carbon monoxide.
