Brand: EIBENSTOCK

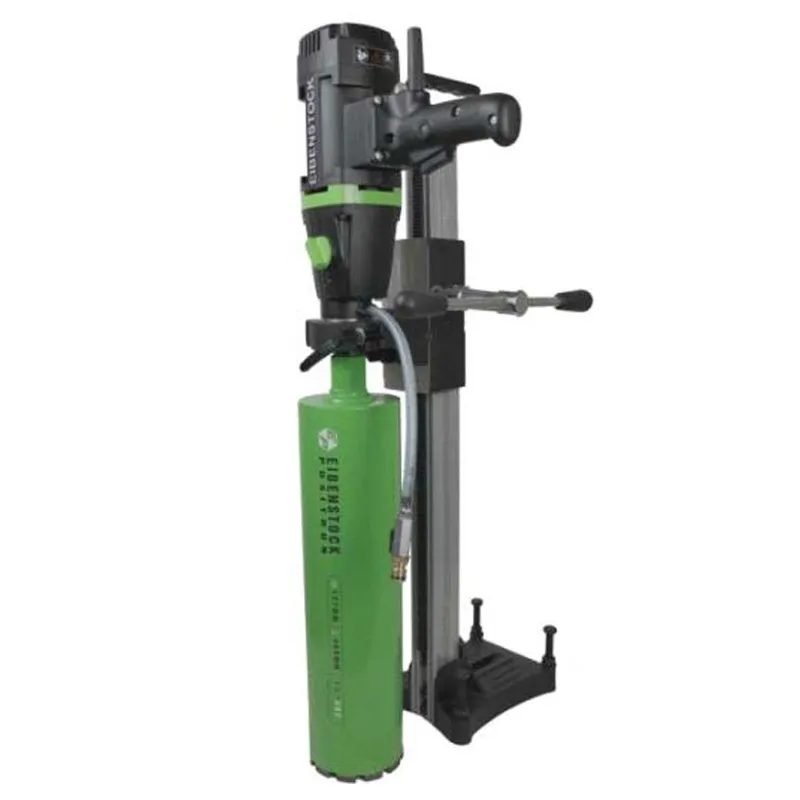

Eibenstock 182 mm 1800 Watt Diamond Core Drill Machine with Drill Stand & Accessories, 2800 RPM (PDB 130)
SKU: TI-E1-20826
₹47990 (Including GST)
MRP : ₹60000
Get extra ₹720 Discount (On Checkout)
Delivery By: May 22 - May 24
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
182 mm 1800 Watt Diamond Core Drilling Machine
with Drilling Stand & Accessories
Country of origin: Germany
Description
- A diamond drilling machine, also known as a diamond core drill, is a specialized drilling tool used for creating holes in hard materials, such as concrete, masonry, and stone. It uses a diamond-tipped drill bit to cut through the material, which is cooled and lubricated with water to prevent overheating and wear.
- Diamond drilling machines are essential for construction, mining, and manufacturing industries, as they can efficiently and accurately drill through hard materials.
Features
:- Switch with over current cut-off - protection against overloading of the motor
- Cutt-off carbon brushes - protection of the motor
- 3-speed oil bath gearbox - optimal lubrication
- Mechanical safety clutch
- Integrated water supply
- Spindle Connection 1 1/4” UNC
- Motor and rig supplied separately
- Handy, robust, and economical
- Space-saving, compact drilling unit - low weight
- Use hand-held for up to 3-1/4" diameter and rig-mounted for up to 6" diameter
- All-aluminium housing
- Integrated level bubble on motor and handle for 90˚drilling
Specification
:- Brand: EIBENSTOCK
- Weight (Approx.) : 15.2 kg
- Drilling Capacity : 182 mm
- Product Type : Diamond Core Drilling Machine
- Model No : PDB 130
- Brand : Eibenstock
- Rated Voltage : 220-240 V
- Power Input : 1800 Watt
- Core Cutting Capacity : 182 mm
- Drilling (mm) Concrete (wet) :
- 1st Gear : 82-182 mm
- 2nd Gear : 42-82 mm
- 3rd Gear : 12-42 mm
- Mechanical Safety Clutch : Yes
- Spindle Connection : 1/2 “ G Female + 1 1/4” UNC Male
- Stroke : 490 mm
- Rated speed n : 600/1300/2800 RPM
Accessories
:- Drilling Stand,
- safety slip clutch,
- carrying case,
- water swivel,
- overload signal and Ground Fault Interrupter,
- Connecting threads of 5/8" x 11 UNC, 1-1/4"x 7 UNC
Note :
- Core Drill Bit is not a part of the standard accessory.
Applications
:- Wet drilling in reinforced concrete, natural stone, and asphalt especially for narrow, difficult accessible places, e.g. in pits
- Aluminium housing suitable for civil engineering
- Sanitary, heating and ventilation construction, civil engineering, landscape construction
