Brand: Impel

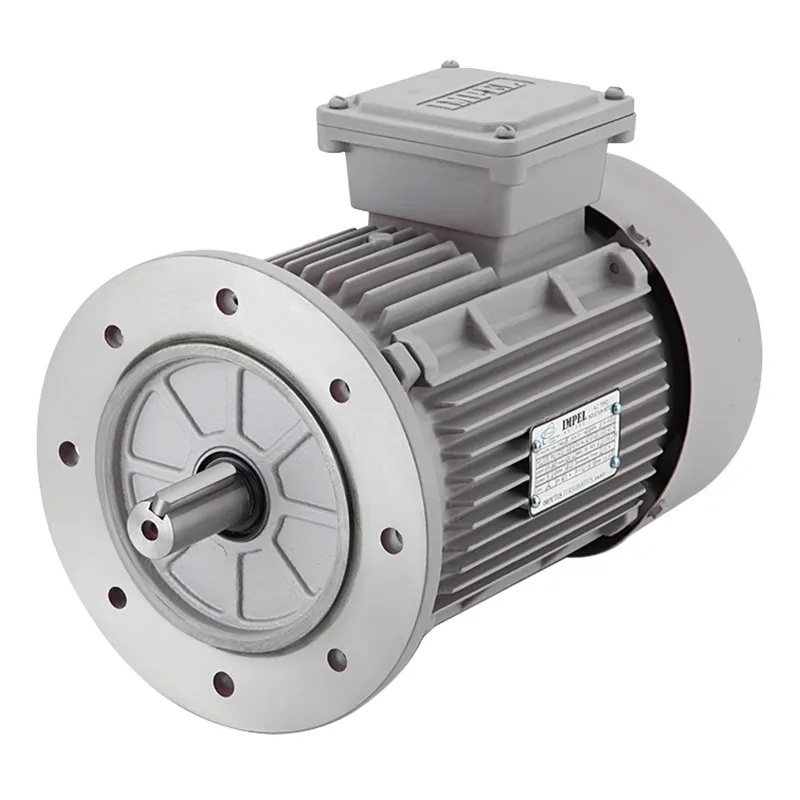

Impel IE2 Series 15 HP Three Phase 4 Pole Flange Mounted AC Induction Motor With 2 Years Warranty
SKU: TI-II-15220
₹46000 (Including GST)
MRP : ₹63000
Get extra ₹690 Discount (On Checkout)
Delivery By: May 24 - May 26
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
IMPEL IE2 Series 15 Hp Flange Mounted 3 Phase AC Induction Motor
4 Pole, Copper Winding
This motor is suitable for Lifts, Cranes, Hoists, Large Exhaust Fans, Lathe Machines, Crushers, etc.
2 Years Of Warranty
Country of origin: India
Description
Impel IE2 Series 15 HP Three Phase 4 Pole Flange Mounted AC Induction Motor With 2 Years Warranty
Features :
- High Efficiency and Long Life Product
- Motors are fitted with dynamically balanced aluminium die cast squirrel cage rotors
- High Torque Level.
- High Power Factor.
- Low Temperature Rise.
- Minimum copper losses due to use of electrolytic grade of copper
- Minimum friction losses with SKF/FAG
- Easy maintenance
- Minimum Pay Back Period
Specification :
- Series : IE2
- Product Type : AC Induction Motor
- Brand : IMPEL
- Power : 15 HP (11 kW)
- No Of Poles : 4
- Winding : Copper
- Electricity Connection : Three Phase
- Rated Voltage : 415 Volt (± 10% )
- Frequency : 50Hz ( ± 5% )
- Rated Current : 21.5 Amp.
- Speed : 1440 RPM
- Mounting Type : B5 Flange
- Body Material : Casting
- Standard : IS12615:2018
- Frame : 160M
- IP Rating : IP55
- Insulation Class : F
- Duty Cycle : S1
- Ambient Temperature : 50C
- Enclosure : TEFC (Total Enclose Fan Cooled)
- Cooling Method : IC411 (Shaft Mounted Fan)
- Weight : 120 Kg (Approx.)
Areas Of Application :
- This motor is suitable for Lifts, Cranes, Hoists, Large exhaust fans, Lathe machines, Crushers, Oil extracting mills, Textiles etc.
Benefits :
- Longer insulation and bearing lives
- Lower heat output and less vibration
- Extended winding life
- Increased tolerance of overload conditions
- Higher tolerance for increased voltage rates or phase imbalance
WARRANTY :
- 2 Years Of Warranty As Per IMPEL Motors Policy.
Specifications
:- Brand: Impel
- Power : 15 hp
- Weight (Approx.) : 120 kg
- Winding Material : Copper
