• Kirloskar 1 HP 3Phase Self Priming Monoblock Pump, 48m Max. Head, 25X25mm (MINI JALNAYAK-I (GOLD)) - 2 Years Of Warranty

Brand:  Kirloskar

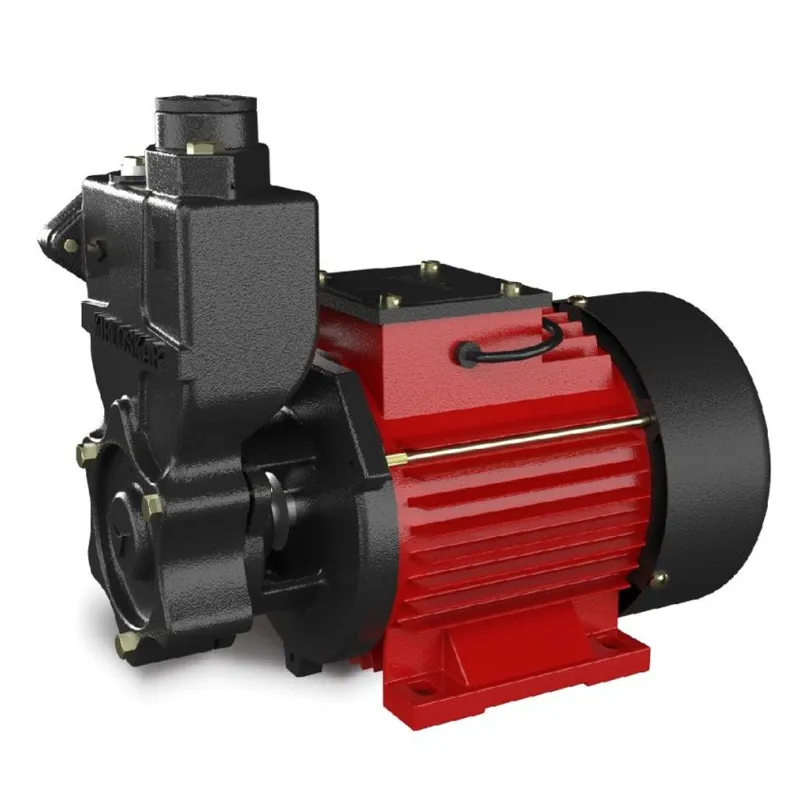

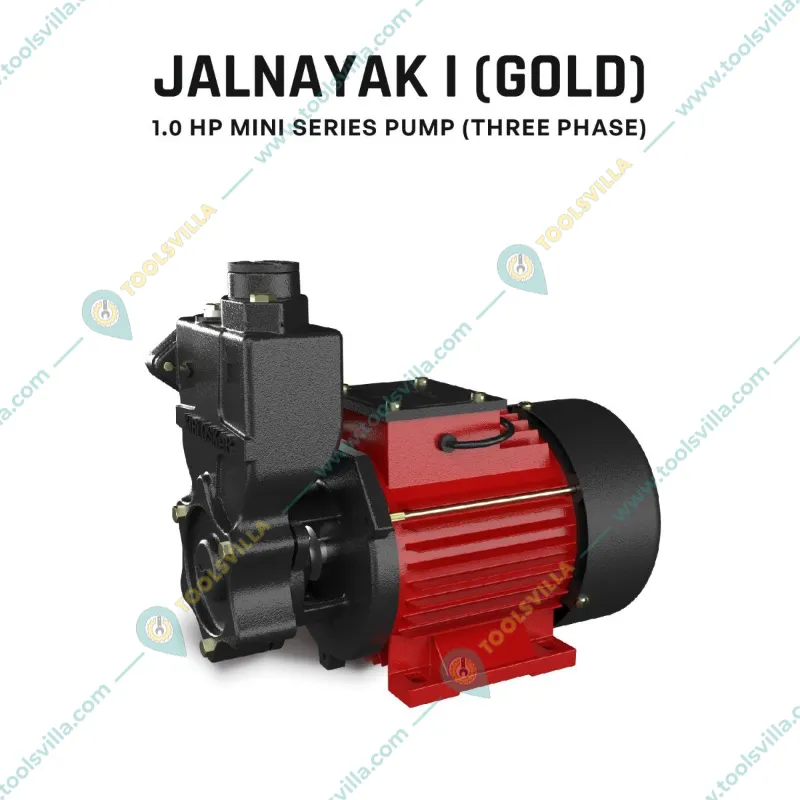

Kirloskar 1 HP 3Phase Self Priming Monoblock Pump, 48m Max. Head, 25X25mm (MINI JALNAYAK-I (GOLD)) - 2 Years Of Warranty

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

Short Description

Kirloskar (MINI JALNAYAK-I (GOLD)) 1 HP, 3 Phase Self Priming Monoblock Pump

Max. Head 48 Meter, Max. Discharge 4050 LPH

This Pump is suitable for gardening purpose, domestic water supply, Construction Sites etc.

2 Years Of Warranty

Country of origin: India

Description

Kirloskar 1 HP 3Phase Self Priming Monoblock Pump, 48m Max. Head, 25X25mm (MINI JALNAYAK-I (GOLD)) - 2 Years Of Warranty

Features :

• High Efficiency and Energy Saving Design : Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings.
• High Grade F - Class Insulation : Robust design to withstand higher temperatures reducing the chances of motor burning and ensures the reliability, safety and enhanced life.

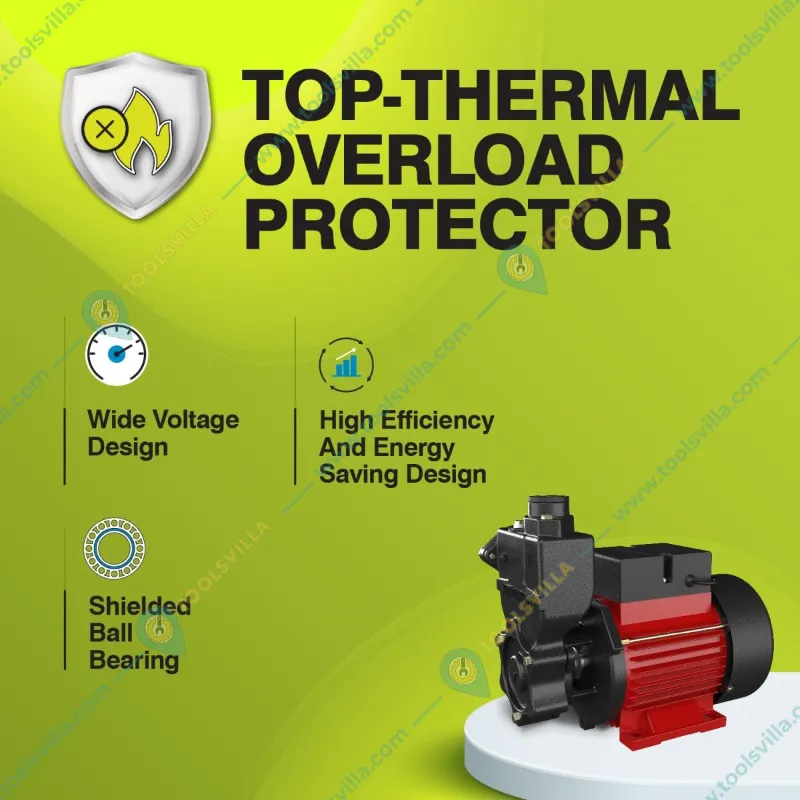

• Thermal Overload Protector (TOP) : The pump set features a Thermal Overload protector that protects the motor from overloading, shielding the motor and associated circuit from the effects of fault current.
• Cathodic Electro Deposition (CED) Coating : CED is the latest coating technology for corrosion resistance with uniform coating, provides 5 times more protection over conventional painting, resulting in longer life. Hydraulic parts of Kirloskar pumps are CED coated.
• Wide Voltage Range : The motor is designed to withstand wide voltage fluctuations from 300 to 440 volts (Three Phase) and reduces chances of motor burning due to low/high voltage.
• Shielded Ball Bearing : The pumps are fitted with shielded ball bearings, which results in low noise level and so no external lubrication is required throughout the life cycle.
• Dynamically Balanced Rotating Parts : Minimum vibrations protect components from damages during the operations, consistent performance as concentricity is maintained.
• Easy Maintainable Designs : Easy maintainable design and better interchangeability of components so that pump can be serviced even at remote locations by semi-skilled technicians.
• High Suction Lift : The pump has suction lift capacity up to 7.5 meters with high head, allowing to pump water at high volumes for a variety of applications.
• Enhanced Safety Features: All electrical parts of the pump are covered, which makes it safer to use.

Specification :

• Model No : MINI JALNAYAK-I (GOLD)
• Product Type : Self Priming Monoblock Pump
• Brand : KIRLOSKAR
• Power : 0.75 kW
• Rated Voltage : 415 Volt, 50 Hz, AC Power Supply
• Electricity Connection : Three Phase
• Pipe Size (Suction x Delivery) : 25 x 25 mm

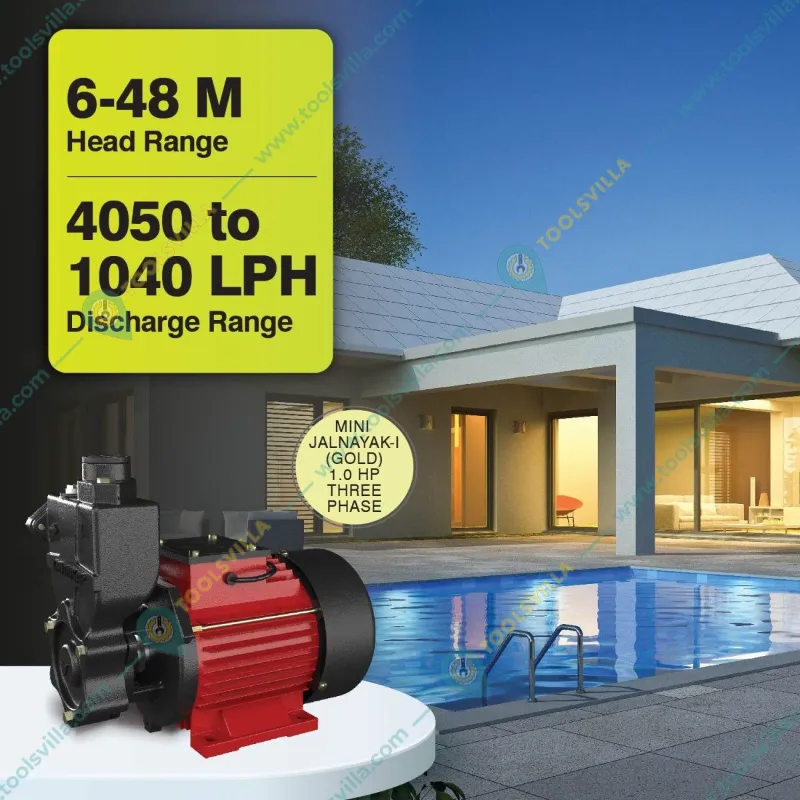

• Head Range : 6-48 Meter ( 20-157 Foot)
• Discharge Range :  4050 - 1040 LPH (68-17 LPM)
• Insulation Type : F Class

Material Of Construction :

• Impeller : Brass
• Delivery Casing : Cast Iron
• Motor Body : Aluminum Die Cast
• Shaft : Carbon Steel
• Mechanical Seal : Carbon Vs. Ceramic


Areas Of Application :

• Gardens and Fountains
• Feed Water to RO Plants
• Domestic Water Supply
• Water Supply to Overhead Tanks in Bungalows
• Construction Sites
• Car Washing
• Lawn Sprinklers

Warranty :

• 2 Years Onsite Warranty.

Specifications

 :

• Brand: Kirloskar
• Power : 1 hp
• Weight (Approx.) : 16 kg
• Flow Rate : 68 lpm
• Head : 48 meter
