Brand:  Kirloskar

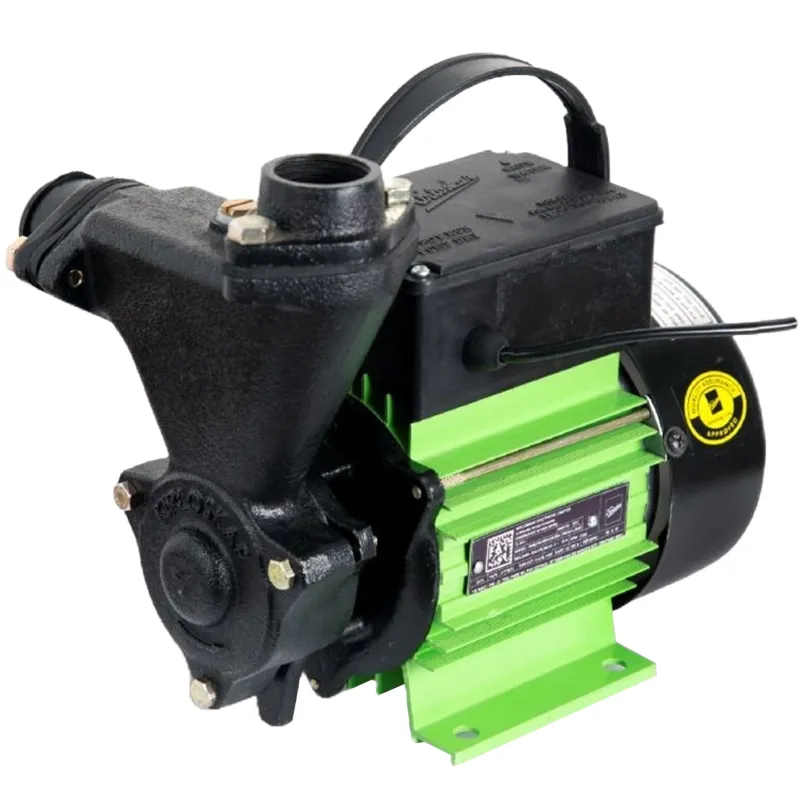

Kirloskar 1Hp Single Phase Self Priming Monoblock Pump, 32m Max. Head, 25X25mm (Chhotu Star Ultra) - 1 Year Warranty

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

Short Description

1 HP Single Phase Monoblock Pump

6 to 32 meter Head Range

2880-500 LPH Discharge Range

1 Year Warranty

Country of origin: India

Description

Kirloskar 1Hp Single Phase Self Priming Monoblock Pump, 32m Max. Head, 25X25mm (Chhotu Star Ultra) - 1 Year Warranty

Features :

• Low Maintenance Shielded Ball Bearings : These low-noise pumps come equipped with shielded ball bearings, eliminating the need for external lubrication throughout their lifespan.
• Efficiency and Energy Savings : The innovative design, crafted in a state-of-the-art facility, ensures optimal efficiency and reduced energy consumption, resulting in substantial cost savings.
• Less Vibration during Operation : Dynamically balanced rotating parts minimize vibrations, protecting components from damage during operation and ensuring consistent performance through precise concentration.
• Ease of Maintenance : Designed for easy maintenance and enhanced interchangeability of components, enabling servicing even in remote locations by semi-skilled technicians.
• Thermal Overload Protection (TOP) : These pump sets feature a Thermal Overload Protector, safeguarding the motor from overloading and preventing damage to both the motor and associated circuitry due to fault currents.
• Compact and Lightweight : With its lightweight and compact design, this pump can be easily transported, enhancing its portability and usability.
• High Suction Lift : Capable of achieving a suction lift, making it suitable for efficiently pumping water at high volumes across a variety of applications.
• Durable Aluminum Motor Body : Crafted from special-grade aluminum, the motor body offers exceptional resistance to corrosion, efficient heat dissipation, and reduces the overall weight of the pump, enhancing its portability.
• Enhanced Safety : All electrical components of the pump are adequately covered, ensuring a safer user experience.
• Wide Voltage Tolerance : The motor is designed to withstand a wide range of voltage fluctuations, spanning from 180 to 260 Volts, minimizing the risk of motor damage in case of low voltage conditions.

Specifications :

• Model No. : Chhotu Star Ultra
• Product Type : Self Priming Monoblock Pump
• Brand : Kirloskar
• Power Source : Corded Electric

• Full Load Current : 3.6 Amp.
• Wattage : 0.75 kW
• Power Supply : 220V, AC Supply
• Frequency : 50 Hz
• Electricity Connection : Single Phase
• Speed : 2580 RPM
• Head Range : 6 to 32 meters (20 to 105 feet)
• Suction x Delivery Pipe (Size) : 25 X 25 mm
• Discharge Range : 2880-500 LPH (48 to 8 LPM)

• No Of Stages : 1
• Sealing : Mechanical Seal

Applications :

• Water supply for bungalows, apartments & hotels
• Farmhouse fountains, sumps and water tanks
• Gardening and small farm irrigation.

Warranty :

• One Year Onsite Warranty.

Specifications

 :

• Brand: Kirloskar
• Power : 1 hp
• Weight (Approx.) : 7.4 kg
• Flow Rate : 48 lpm
• Head : 32 meter
