Brand: Packlift

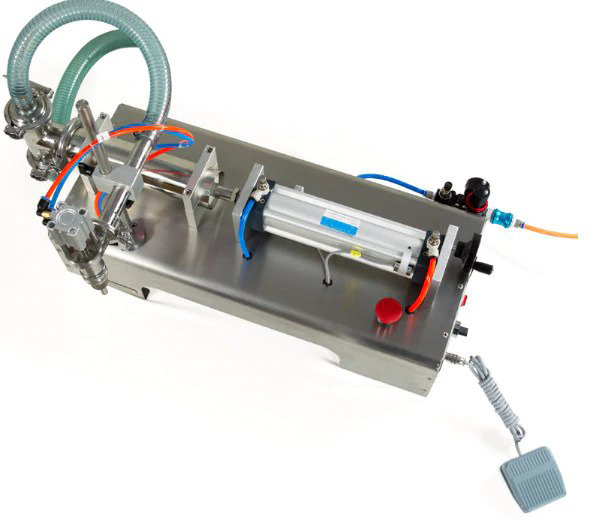

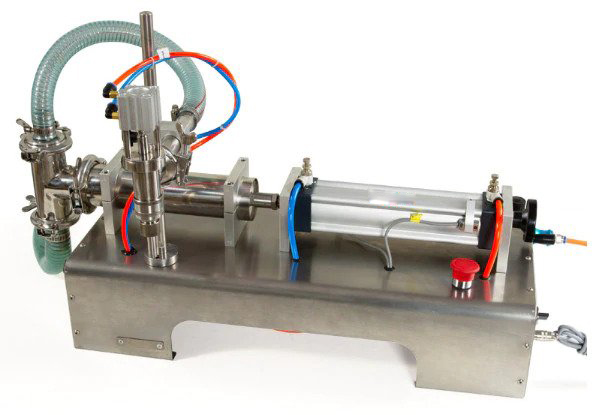

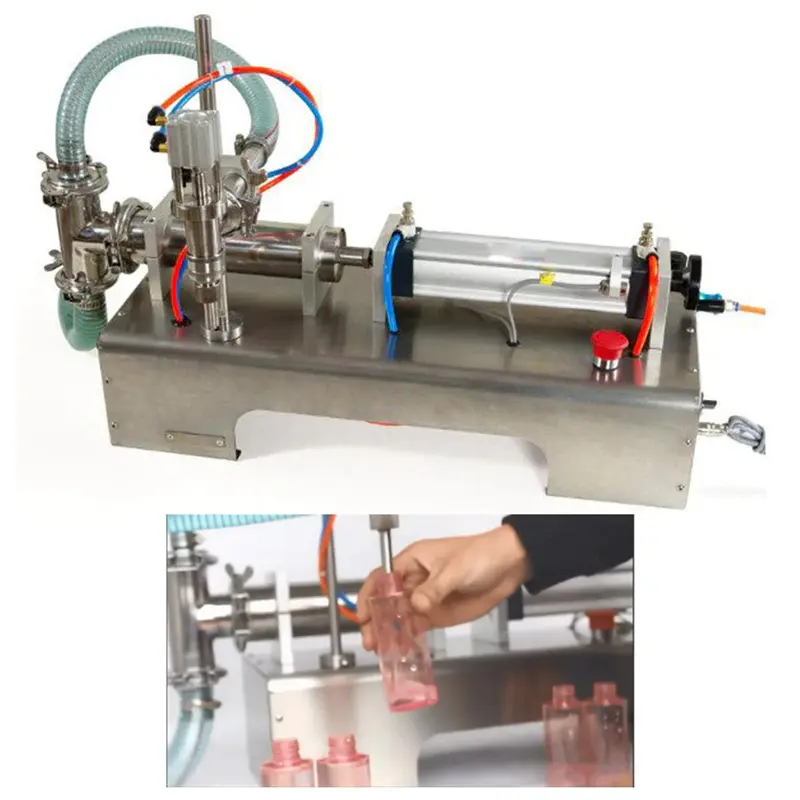

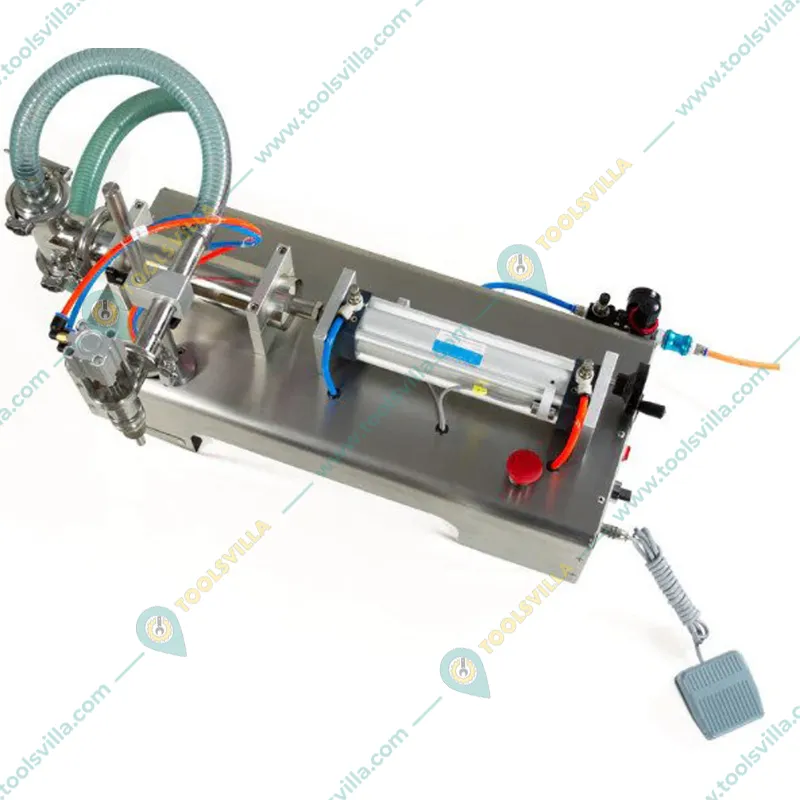

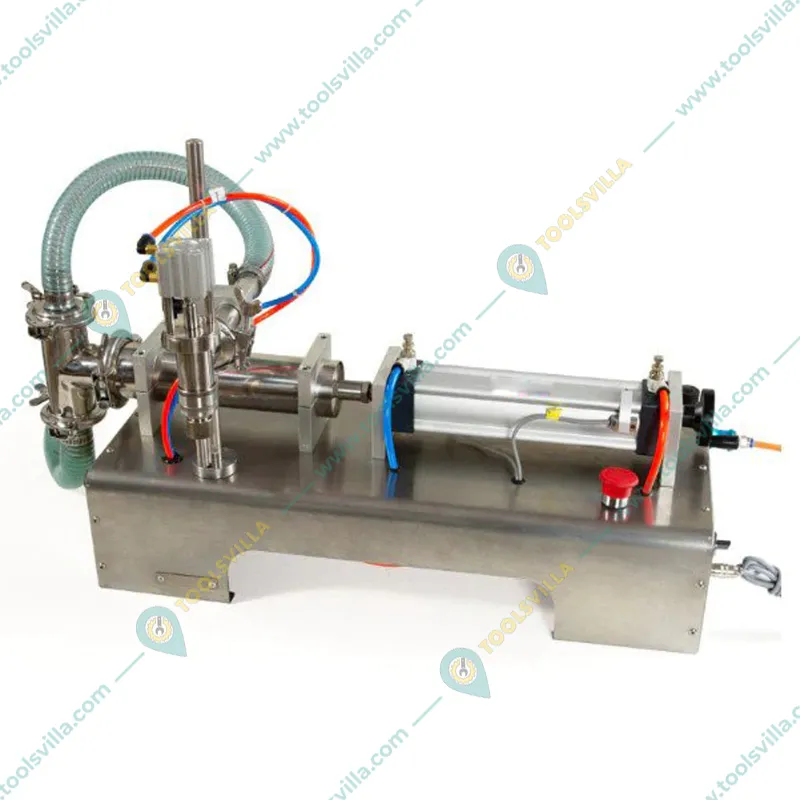

Single Nozzle Liquid Filling Machine 50-500 ml, Semi-Automatic
SKU: DAR-SH-2168
5 people have bought this recently
Delivery By: Jun 5 - Jun 7
MRP : ₹27599
5 people have bought this recently Delivery By: Jun 5 - Jun 7 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹27599 (Including GST)
Get Extra ₹414 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Single Nozzle Liquid Filling Machine
50-500 ml Filling Volume
600-1500 bottles per hr Efficiency
Country of origin: China
Description
This machine is a semi-automatic type liquid-filling machine. The single nozzle liquid filling machine is suitable for filling free flow liquid, just like water into the bottle. It can be fill the all type of containers such as bottles, jars, cans, etc. liquid filling machine have a compact body and its easy to operate. The piston and hopper of the cylinder are made up of 304 stainless steel and Polytetrafluoroethylene (PTEF). The filling head adopts an anti-leakage device.
Features
:- Suitable for liquid filling
- Small model easy to handle
- High accuracy
- Filling volume and filling speed can be adjust
Specification
:- Brand: Packlift
- Weight (Approx.) : 19 kg
- Body Material : Stainless Steel
- Power Source : 110V-220V
- Phase : Single
- Frequency : 50Hz
- Filling Head : Single Head
- Filling Volume : 50-500 ml
- Air Supply : 400 LPM
- Air Pressure : 0.6 Mpa
- Efficiency : 600-1500 bottles per hr (Depending on material)
Note : Compressor required extra
Usage
:1. Preparation :
- Ensure the machine is clean and free from any previous product residues.
- Set up the machine on a stable surface and connect it to a power source.
2. Adjusting the Settings :
- Set the desired filling volume (between 50-500 ml) using the volume adjustment knob.
3. Container Placement :
- Place empty containers under the nozzle in a manner that allows for easy filling.
- Ensure that all containers are aligned properly to avoid spills.
4. Filling Process :
- Activate the filling process by pressing the foot pedal.
- Monitor the filling to ensure that each container receives the correct amount of liquid.
5. Post-Filling :
- Once filling is complete, remove filled containers from beneath the nozzle.
- Clean any spills around the filling area to maintain hygiene.
Maintenance :
- Routine Cleaning : Ensure the filling nozzle and surrounding areas are cleaned regularly to prevent product buildup.
- Electrical Safety : Always disconnect power before performing maintenance to avoid electric shock or injury.
Applications
:- Pharmaceutical Industry : It is utilized for filling medicinal liquids, syrups, and other pharmaceutical products into vials or bottles, which is in low viscosity just like water.
- Food and Beverage Industry : This machine is widely used for filling liquids such as free flow liquid into bottles or containers ranging from 50 ml to 500 ml. Its precision ensures consistent fill levels, which is crucial for product quality and compliance with regulations.
- Cosmetic Industry : Digital free flow liquid filling machines are used to fill free flow liquid like Rose Water. Their precise control over the filling volume helps maintain product consistency.
- Laboratories : Useful for precise filling of liquid samples and solutions.
