Brand: Solar Universe India

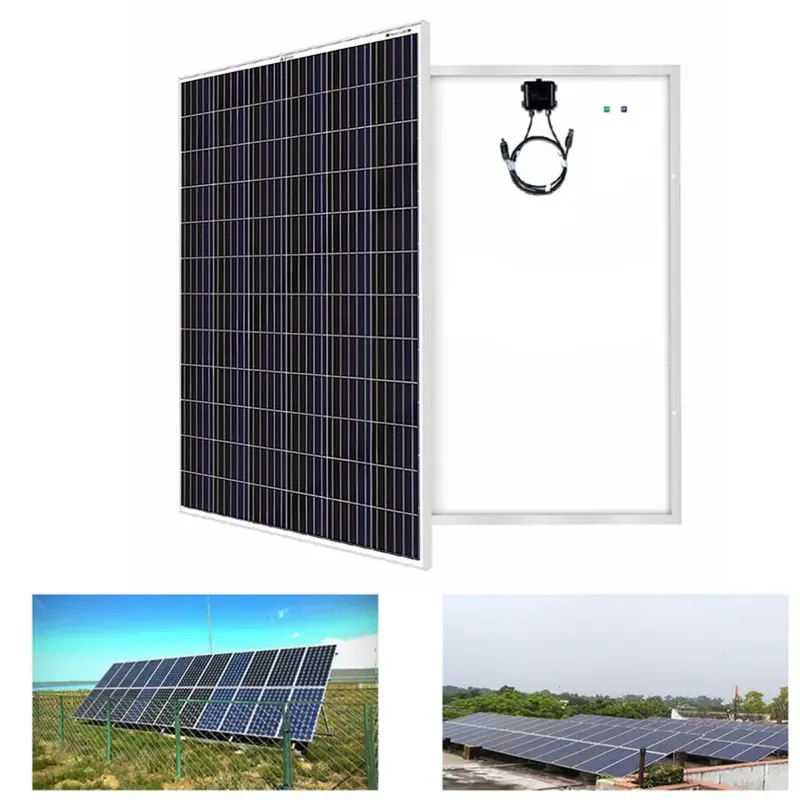

Solar Universe India 400 Watt Mono PERC Solar Panel of 72 Cells
SKU: BM-BB-20212493
₹13999 (Including GST)
MRP : ₹21237
Get extra ₹210 Discount (On Checkout)
Delivery By: May 25 - May 27
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
400 Watt Mono PERC Solar Panel
Easy to Install, long lasting Solar Panel
High Efficiency, and
High Performance Solar Panel.
Country of origin: India
Description
This Solar Panel is Built with Heavy-duty silver anodized aluminum frame and tempered glass. Long Lasting, High Efficiency and Excellent low light performance. This efficient solar panel offer with reduced electricity bills, maximized power generation, better performance in hot climates, low maintenance cost, high durability and diverse applications.
Features
:- Increased module power output.
- Maximum system voltage of 1500 V DC.
- Reduced BOS cost.
- High area efficiency.
- Easy installation & handling for various application.
Specification
:- Brand: Solar Universe India
- Weight (Approx.) : 20 kg
- Number of Cell : 72
- Junction Box : IP 67 rated with 3 bypass diodes
- Cables & Connectors : 4 sq. m solar cable 1000mm, 2 Nos. black MC4 connectors
- Superstrate : 3.2 mm high transmission low iron tempered glass
- Cell Encapsulant : PID Free EVA (Ethylene Vinyl Acetate) ‐ FC/UFC
- Back sheet : Composite Film ‐ White (Black & Transparent optional)
- Frame : Silver Anodized Aluminum frame with twin wall profile
- Mechanical Load Test : Sustain heavy static load (2400 Pa & 5400 Pa or 550 kg/m2)
- Material : Heavy Duty Silver Anodized Aluminum Frame & Tempered Glass.
- Dimension (L x W x H) : (1955 x 990 x 35/40)mm (± 10mm)
- Maximum Power Pmax : 400 Wp
- Maximum Voltage Vmpp : 40.15 V
- Maximum Current Impp : 9.96 A
- Open Circuit Voltage Voc : 49.30 V
- Short Circuit Current Isc : 10.22 A
- Module Efficiency : 20.50 %
Electrical Characteristics at NOCT :
- Maximum Power Pmax : 296 Wp
- Maximum Voltage Vmpp : 38.80 V
- Maximum Current Impp : 7.63 A
- Open Circuit Voltage Voc : 47.40 V
- Short Circuit Current Isc : 8.10 A
Temperature coefficient (Tc) and permissible operating conditions :
- Tc of Open Circuit Voltage (α) : ‐0.300%/°K
- Tc of Short Circuit Current (β) : 0.060%/°K
- Tc of Power (γ) : ‐0.370%/°K
- NOCT : 46 ± 2°C
- Maximum series fuse ratings : 30A
- Temperature Range : ‐40°C to +85°C
- Maximum System Voltage : 1000/1500 V DC
Approvals and certifications from :
- IEC 61215 Ed 2, ROHS,IEC 61730, IEC 61701, CE,UL 1703, CEC, CE
Applications
:- On-grid Large scale utility projects
- On-grid rooftop Industrial & commercial system,
- Off-grid rooftop systems for residential buildings.
- Solar water pumping systems,
- Off-grid systems for Filling Stations.
- Electric Vehicles charging station,
- Street lighting applications.
