Brand: Generic ( Made in India )

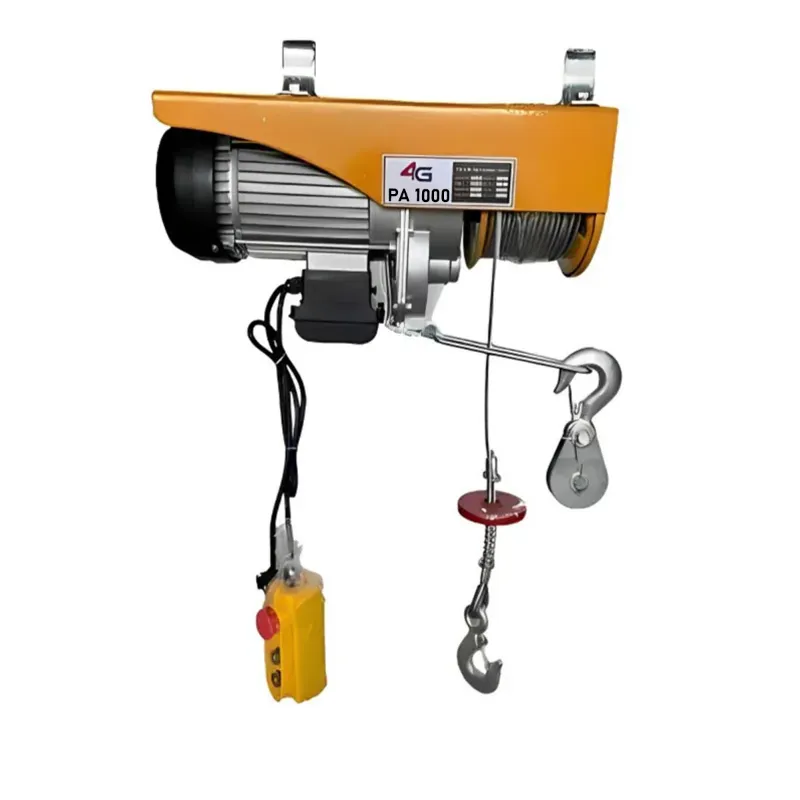

4G 1000 kg 1800W Mini Electric Hoist, 6 mm diameter & 30 meter long Wire Rope (PA-1000)
SKU: TI-41-20433
₹13100 (Including GST)
MRP : ₹20000
Get extra ₹197 Discount (On Checkout)
Delivery By: May 23 - May 25
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Mini Electric Hoist 900/1800 kg with Double Hook is capable of lifting 1800 kg of weight with the aid of double hook.
4G 1000 kg Mini Electric Hoist
Rated Voltage 220V, 50Hz
Rated Capacity 1000 Kg
30 meter Wire rope length, 6 mm diameter
Remote Controlled Electric hoist
Country of origin: India
Description
The raising, lowering, and transferring of objects and goods is done with the use of material handling equipment called electric hoists. They are mounted above the ground, and an electric motor drives them. Electric wire rope and chain hoists are the two primary varieties of electric hoists.
Mini Electric Hoist 900/1800 kg with Double Hook is capable of lifting 1800 kg of weight with the aid of double hook. It is designed to operate electrically, with an emergency push button in red to prevent any casualty.
Features
:- With an emergency stop switch
- Reinforced breaking switch with position limit
- Protection class up to IP40
- With a thermal prevention device
- Compact and small size design
- Long life span and high efficiency
- Applicable for most industry, business, handicraft industry and service industry
- Can be used in conjunction with many types of electric or manual cranes such as the single-girder crane, the double-girder crane, the cantilever crane and the gantry crane
Specification
:- Brand: Generic ( Made in India )
- Power : 2.5 hp
- Weight (Approx.) : 28.5 kg
- Load Capacity : 1000 kg
- Phase : Single
- Model No. : PA-1000
- Product Type : Mini Electric Hoist
- Brand : 4G
- Phase : Single Phase
- Power Source : Electric
- Trolley Option : Without Trolley
- Winding : Copper Winding
- Working : Remote Controlled
- Motor Power : 2.5 Hp
- Frequency : 50 Hz
- Rated Voltage : 220 V
- Method Of Use : Single & Double Hook
- Single Hook Load Capacity : 600 kg
- Double Hook Load Capacity : 1000 kg
- IP Rating : IP40
- Wire Rope Diameter : 6 mm
- Wire Rope Length : 30 meter (3000 cm)
- Input Power : 1800 W
- Lifting Speed : 8/4 m/min
- Lifting Height : 10/20 m
- Work Rate : 20% 10 min
- Body Material : Heavy Duty Steel
- Usage/Application : Industrial
Applications
:Warehouses, automotive servicing, machine shops, manufacturing facilities, factories, building sites, and railroad construction.
In The Box :
- 1 Electric Hoist.
- 1 Electric Hoist Remote.
- 1 Eye Hook.
- 1 Pulley Hook.
- 30-meter Wire Rope.
- Mounting Case
- Nutbolts and Clamps
Note :
- All these accessories are assembled with the machine.
