Brand:  Kirloskar

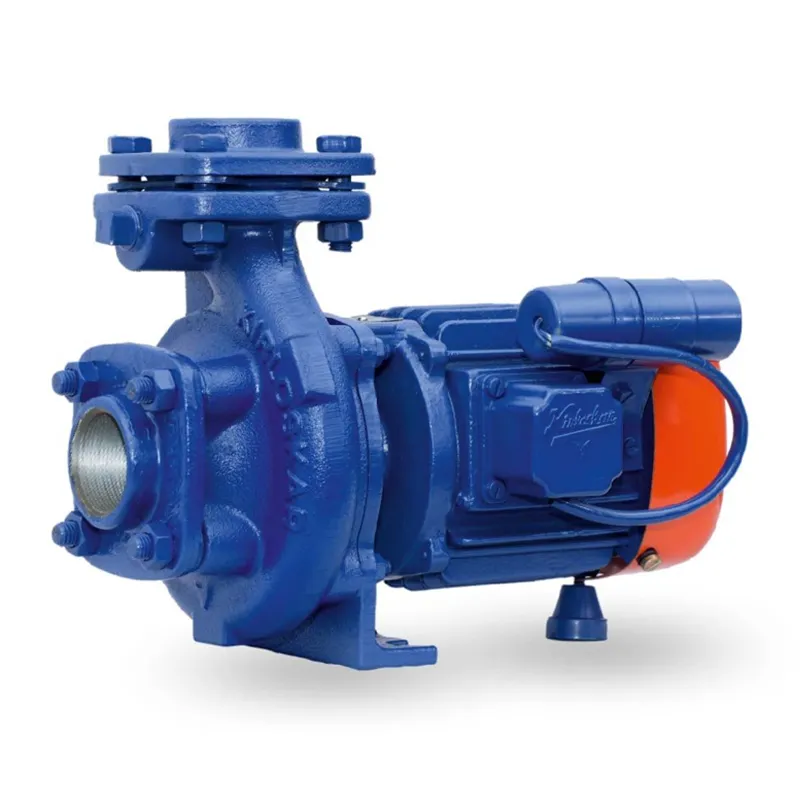

Kirloskar 1.5 HP Single Phase Centrifugal Monoblock Pump, 29880 LPH, 50 x 50 mm (KDS-1.514) - 1 Year Warranty

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

Short Description

Kirloskar KDS-1.514 1.5 HP Single Phase End Suction Monoblock Pump

45ft Max. Head, 498 LPM Max. Discharge

1 Year Warranty

Country of origin: India

Description

Kirloskar 1.5 HP Single Phase Centrifugal Monoblock Pump, 29880 LPH, 50 x 50 mm (KDS-1.514) - 1 Year Warranty

Features :

• Can withstand wide voltage fluctuation: From 180- 240 Volts
• Top flat efficiency curve: minimum variation in efficiency in an entire operating range

• Efficiency at par with internationally available pumps- higher up to 10 points than a minimum required by Indian Standards specifications
• Models are with IP-44 protection
• Class 'B' insulation
• Designed to prevent overloading and motor burning
• Dynamically balanced rotating parts ensure minimum vibrations
• Replaceable wearing parts and hence longer life
• Designed for automatic air release during priming CED coating cast iron components long life & rust-free
• More hygienic & potable for drinking water.

Specification :

• Model No : KDS-1.514
• Product Type : Monoblock Pump
• Brand : Kirloskar
• Power : 1.1 kW
• Power : 210 V AC Supply
• Electricity Connection : Single Phase
• Current : 8.8 Amp
• Head Range : 14 to 8 Meter (45 to 26 Feet)
• Discharge Rate : 29880 to 12960 LPH (498 to 216 LPM)
• Protection : IP 44
• Pipe Size (Suction X Delivery) : 50 x 50 mm

Materials of Construction :

• Motor Body : Cast Iron
• Impeller : Cast Iron
• Delivery Casting : Cast Iron
• Shaft : Carbon Steel
• Shaft Sleeve : Bronze

Applications :

• Gardening and small farm irrigation
• Agriculture for clear water handling
• Water supply for Agriculture
• Use in Apartments, Buildings and Hotels

Warranty :

• One Year Onsite Warranty.

Specifications

 :

• Brand: Kirloskar
• Power : 1.5 hp
• Weight (Approx.) : 32 kg
• Flow Rate : 498 lpm
• Head : 14 meter
