Brand: Generic ( Made in India )

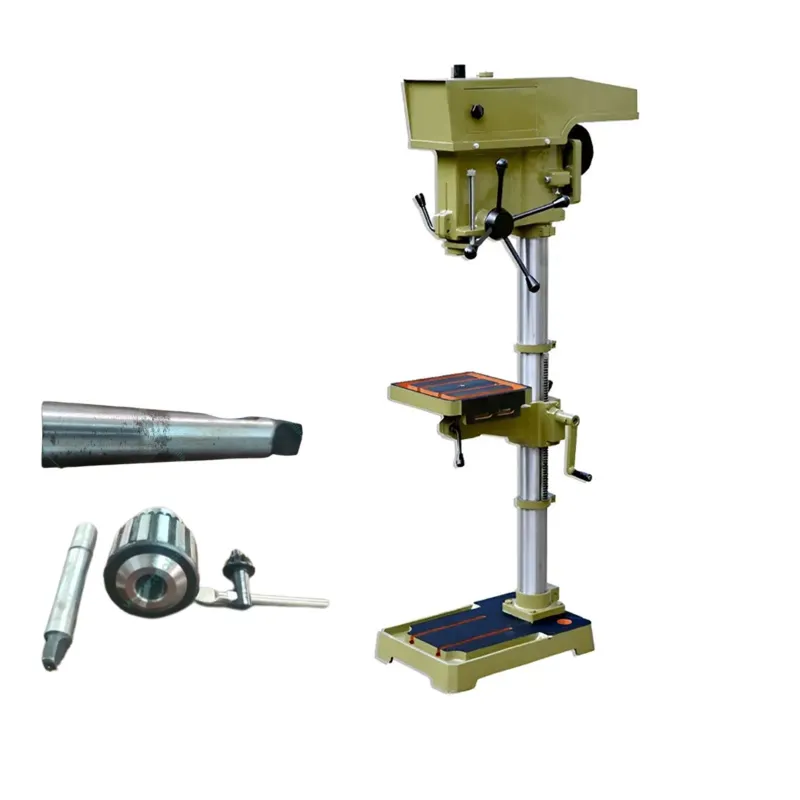

20 mm Commercial Bench Drill Machine Without Motor
SKU: DP-SI-22202
₹15990 (Including GST)
MRP : ₹24687
Get extra ₹240 Discount (On Checkout)
Delivery By: May 25 - May 27
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Commercial Bench Drill Machine
1 HP Required Motor
20 mm Drilling Capacity
Country of origin: India
Description
20 mm Commercial Bench Drill Machine Without Motor
- The bench drill is used for heavy-duty drilling and making holes in wood, metal, aluminium steel, etc.
- These machines are primarily used for several drilling purposes and are configured on the lines of advanced technological procedures.
- Bench pillar drill or pedestal drill as it is called is used mainly in workshops, garages, and small industries where very accurate vertical drilling is required.
Features :
- Ergonomically Design
- For Commercial Usage
- Efficient Usage
Specifications :
- Required Motor : 1 HP
- Tilting working table : Fixed
- Drilling capacity : 20 mm
- Pillar Diameter : 74.30 mm
- Spindle nose-to-table distance : 660mm
- Distance from spindle nose to base distance : 900 mm
- Distance from spindle center to pillar surface : 200 mm
- Table travel : 381 mm
- Taper in spindle : MT-2
- Number of speed : 8 Speed
- Range of Speed : 87 to 3224 RPM
- Table size : 270 x 270 mm
- Base size : 480 x 300 m/c area in mm
- Over all base size : 490 x 310 mm
- Spindle travel : 130 mm
- Pillar length : 1170 mm
- Over all height with pulley guard : 1420 mm
- V-belt section : A-42"
- Shipping Dimension (L x W x H) : 660 x 380 x 1440 mm
Note - Drill Chuck, Drill Arbor, and Drill Sleeve are Included With This Machine.
Specifications
:- Brand: Generic ( Made in India )
- Power : 1 hp
- Weight (Approx.) : 47 kg
- Drilling Capacity : 20 mm
- No-Load Speed : 3224 rpm
