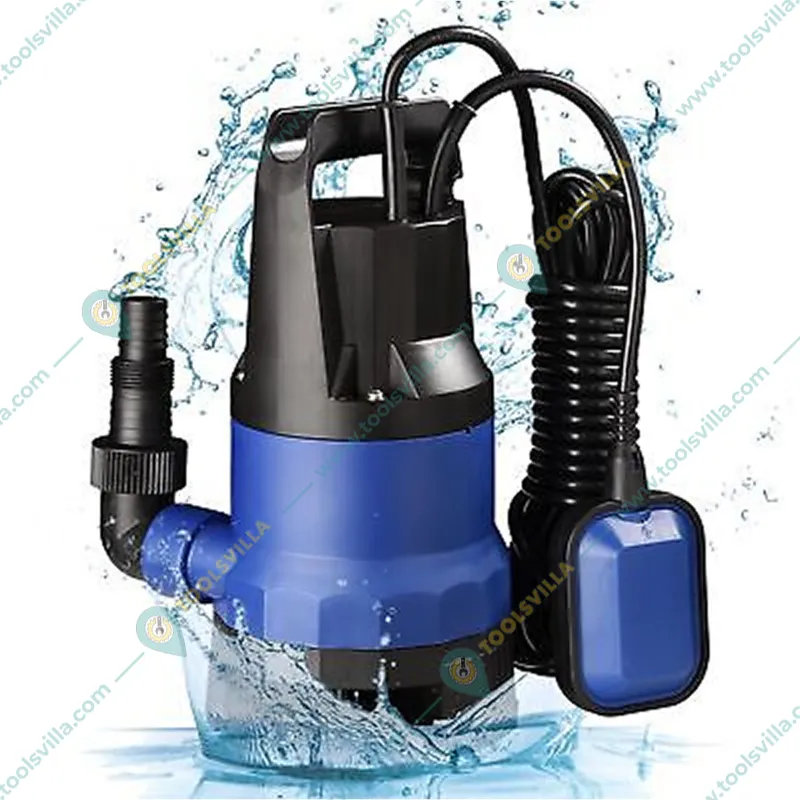

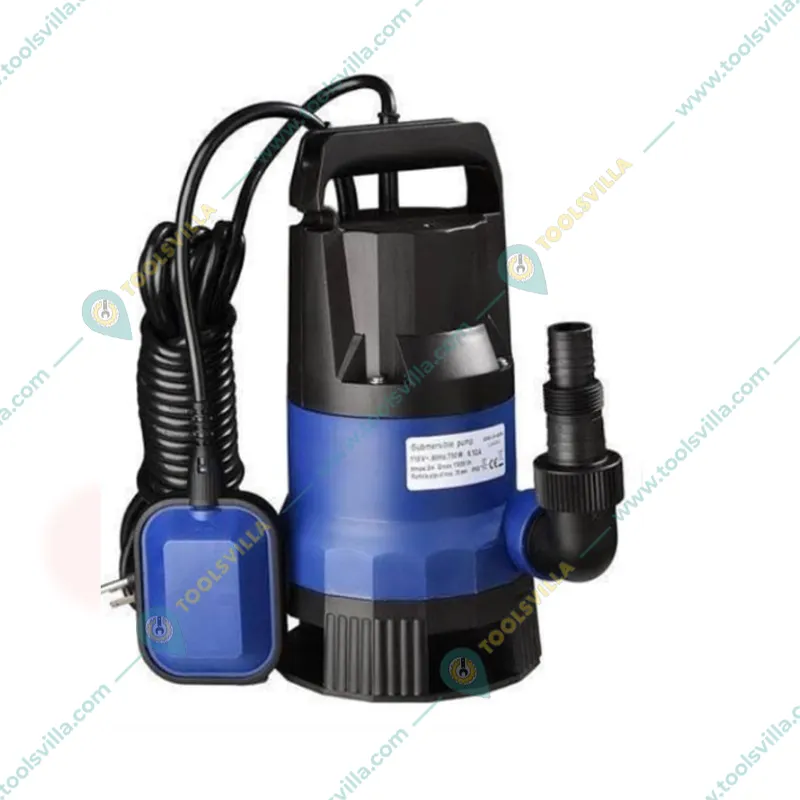

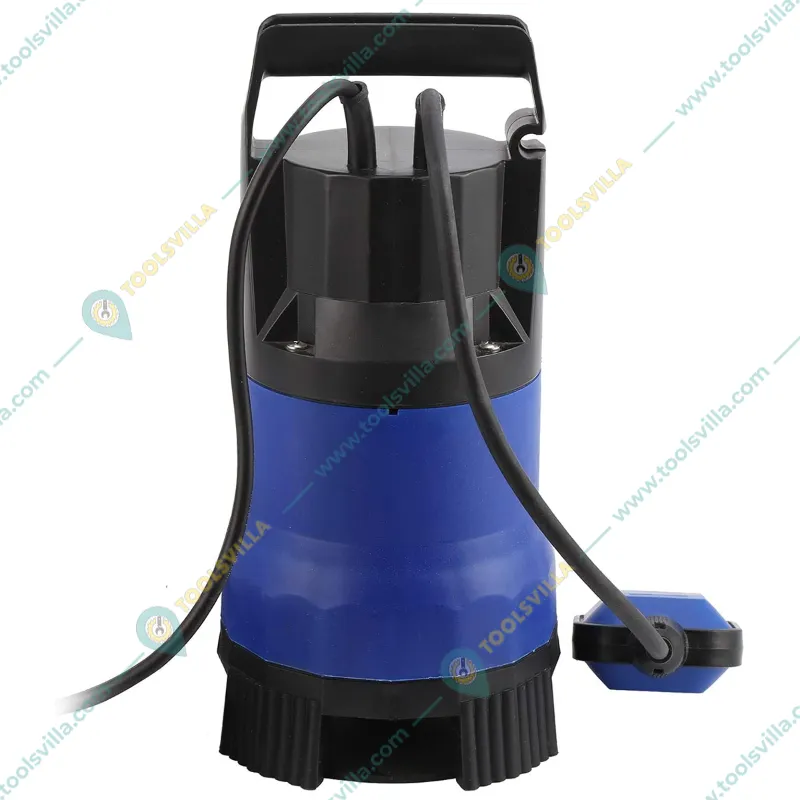

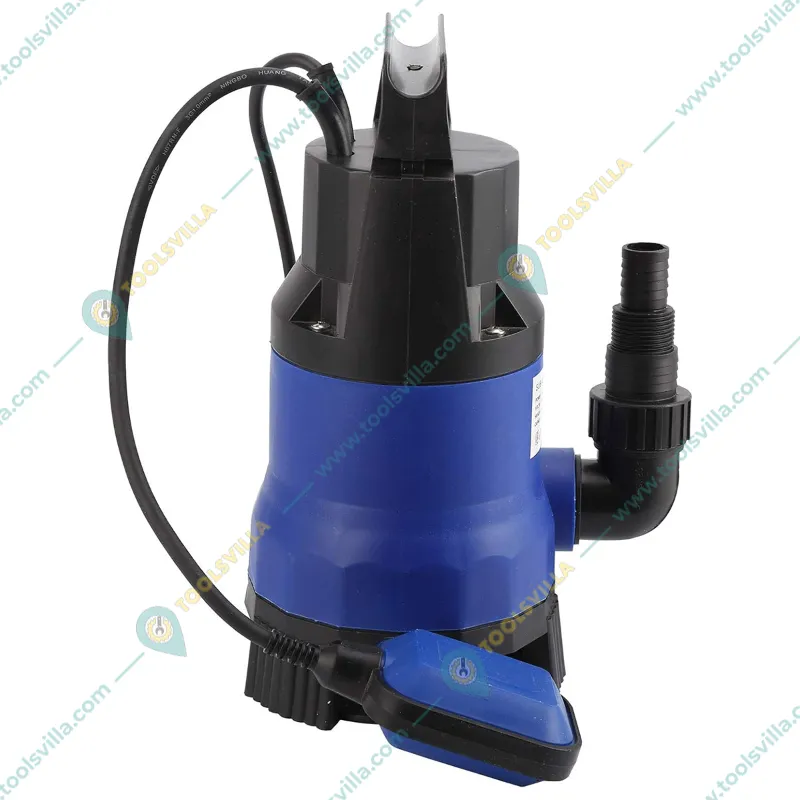

Heavy Duty 1.5 HP Single Phase Sewage Submersible Pump - PP Body & 15000 LPH

4.9 star

SKU: SD-DM-21185

MRP : ₹7620 ₹5299

30% OFF!

268 people have bought this recently

Get Extra ₹79 OFF on Prepaid Orders

Delivery By: Jun 18 - Jun 20

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹5299 (Including GST)

MRP : ₹7620

30% OFF!

Get Extra ₹79 OFF on Prepaid Orders

QTY :

-

1

+

Add to Cart

Buy Now

Short Description

1.5 Hp Single Phase PP Body Sewage Submersible Pump

10 meters Max. Head

15000 LPH Max. Discharge

Country of origin: China

Specifications

Description

Heavy Duty 1.5 HP Single Phase Sewage Submersible Pump - PP Body & 15000 LPH

Description :

• The drainage pump is used for draining pits and deep roadway underpasses, as well as for de-watering basements and courtyards subject to a flooding risk or groundwater. It is usually started automatically via float switches.

Features :

• Built-in overload motor protector with automatic reset permanent split capacitor.
• Impeller: Noryl.
• Superior Steel Shaft with the rotor.
• Mechanical seal: Carbon-ceramics.

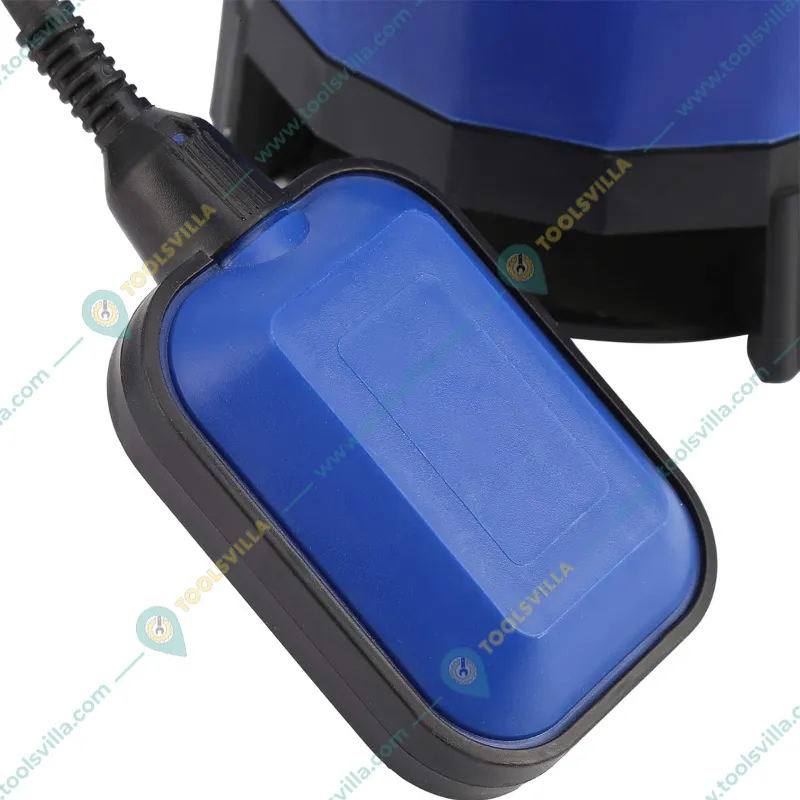

• Type Con galleggiante with float switch.
• Protection: IP 68.

Specification :

• Product Type : Sewage Submersible Pump

• Brand : Generic (Imported)
• Wattage : 1.1 kW
• Voltage : 230 V AC Supply

• Electricity Connection : Single Phase
• Max. Discharge Range : 15000 LPH (250 LPM)
• Cable Length : 5 meter
• Max. Head Range : 10 meter (33 feet)

• Max Submersible Depth : 7 meter (23 feet)
• Solid Size : Up to 35 mm

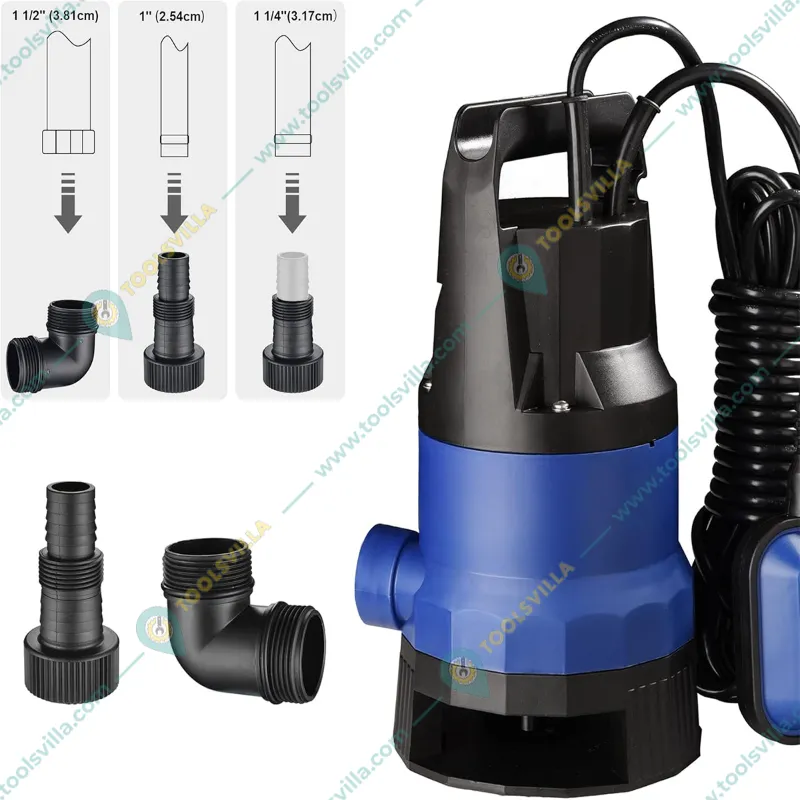

• Delivery Size : 50 mm

• Temperature Range : Up to 35 °C

• Shaft Material : Stainless Steel
• No Load Speed : 2800 RPM

How To Operate :

• Connect a discharge pipe with a diameter at least equal to the diameter of the pump outlet.
• Immerse the pump in the liquid to be sucked, by making an angle of 45 degrees (to reduce the amount of air rapped in tho pump body) the pump rests on he bottom, make sure it is on a flat and stable surface.
• Make sure that no one is present in the liquid to be pumped.
• Plug the pump to the mains.

Application :

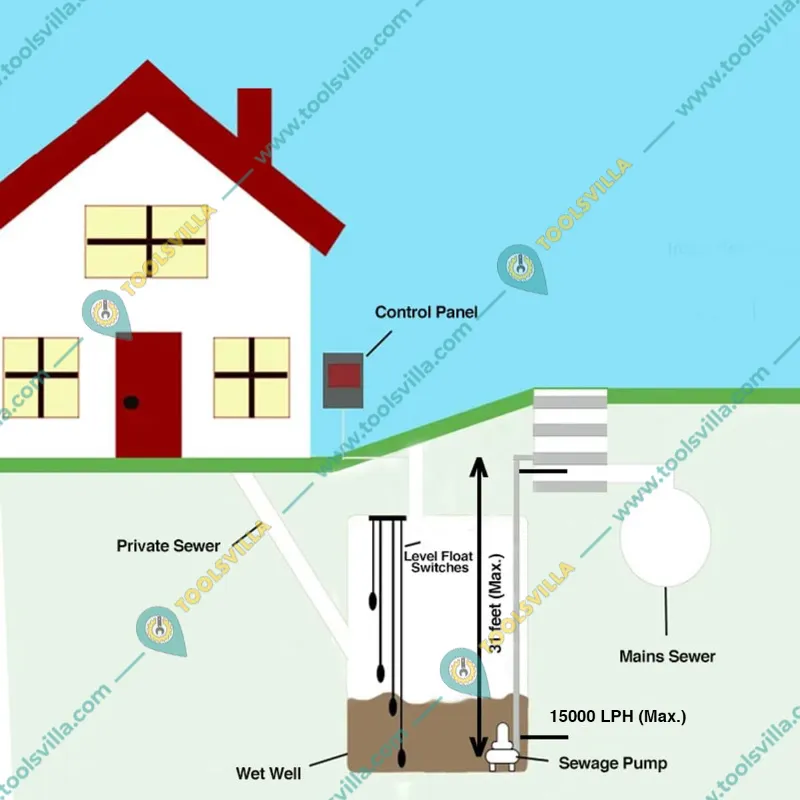

• Submersible draining pumps is suitable for automatic fixed domestic applications and for draining cellars and garages subject to flooding, also particularly useful as a portable pump for emergencies such as draining waste from tanks or rivers, emptying muddy swimming pools, fountains or excavations and subways. These pumps can lift liquids even with suspended solids in sewage water from septic tank. Level float switch offers permanent and automatic pump operation.

Note : As the head or height increases the flow rate continues to decrease.
