Brand: Avant Garde

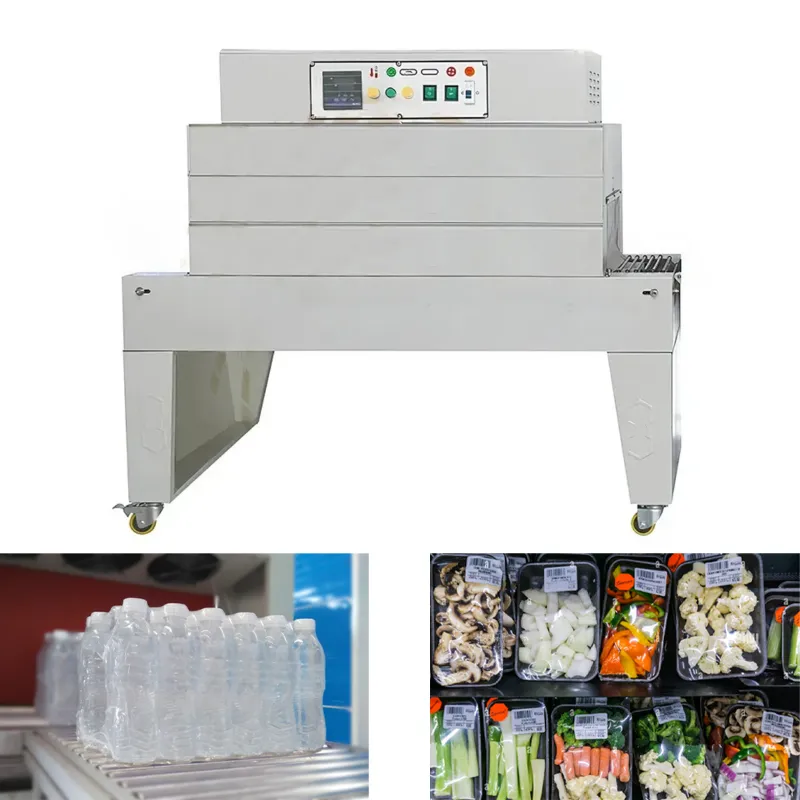

Avant Garde Shrink Tunnel Machine 0.254X 0.1524 cm, Model no. AGST106
SKU: SI-AS-17335
₹44599 (Including GST)
Get extra ₹669 Discount (On Checkout)
Delivery By: May 28 - May 30
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Avant Garde Shrink Tunnel Machine, Model no. AGST106
10 X 6inch Conveyor Size
5kg is Conveyor Loading
Country of origin: India
Description
This shrink tunnel machine is a piece of equipment used in the shrink wrapping industry to Shrink wrap is a process of securing and protecting products using heat-shrinkable plastic film. The machine works by feeding the product through a tunnel, where it is wrapped in the film and then heated to the appropriate temperature to shrink the film to a snug fit. The film then cools, creating a tight seal that helps to protect the product during transport and storage.
Features
:- Heated Air System : To shrink the film surrounding the product being packaged, shrink tunnel machines use a heated air system. The precise application of heat guarantees that the film clings closely to the product's form, resulting in a safe and elegant-looking packaging.
- Control Systems : In order to maintain temperature, air velocity, and other parameters during the shrinking process, modern shrink tunnel machines are outfitted with sophisticated control systems. These systems contribute to optimizing energy efficiency and maintaining consistent shrink outcomes.
- High Production Speeds : Products may be packaged quickly thanks to the high operating speeds of shrink tunnel equipment. In industrial settings, the rapid passage shrinking speed helps organizations satisfy demand and achieve efficient production rates.
Specification
:- Brand: Avant Garde
- Weight (Approx.) : 350 kg
- Power source : 220 V
- Frequency : 50-60 Hz
- Power : 3.6 KW
- Conveyor speed : 0 -12m /min
- Conveyor Size : 10 X 6 inch / 0.254 X 0.1524 cm
- Tunnel size(L x W x H) : 750 x 280 x 160 mm
- Conveyor loading : 5 KG
- Machine size (L x W x H) : 1000 x 450 x 609 mm
Applications
:- Food Industry : Shrink wrap machines are also widely used in the food industry for transport and marketability purposes. Douglas Machine’s VS Series shrink solutions offer speed and durability for high-volume packaging lines.
- Consumer Goods : Consumer goods suppliers use shrink wrap machines to protect their products from tampering and environmental damage. These machines can handle various items such as board games, paper toys, DVDs, sports cleaning supplies, and more.
- Pharmaceutical Industry : In the pharmaceutical industry, shrink wrap machines play a crucial role in sealing caps and ensuring safety and sterility standards are met.
Maintenance :
- Make that the film rolls are kept in storage at the proper temperature. Film strength deterioration, burn holes, and smoke difficulties can occur when films are stored over 90 degrees Fahrenheit. To maintain the film's best condition, it is imperative to keep an eye on the storage temperature.
- Check the machine's sealing jaws on a regular basis for any buildup or debris that can hinder operation. To make sure the sealing jaws are dry and clean, clean them with a non-abrasive cleaning solution.
- To guarantee smooth functioning, keep the chains in the shrink tunnels well-lubricated. By using an appropriate lubricant, wear and tear problems associated with chains can be avoided, ultimately prolonging the equipment's lifespan.
