Brand:  Kirloskar

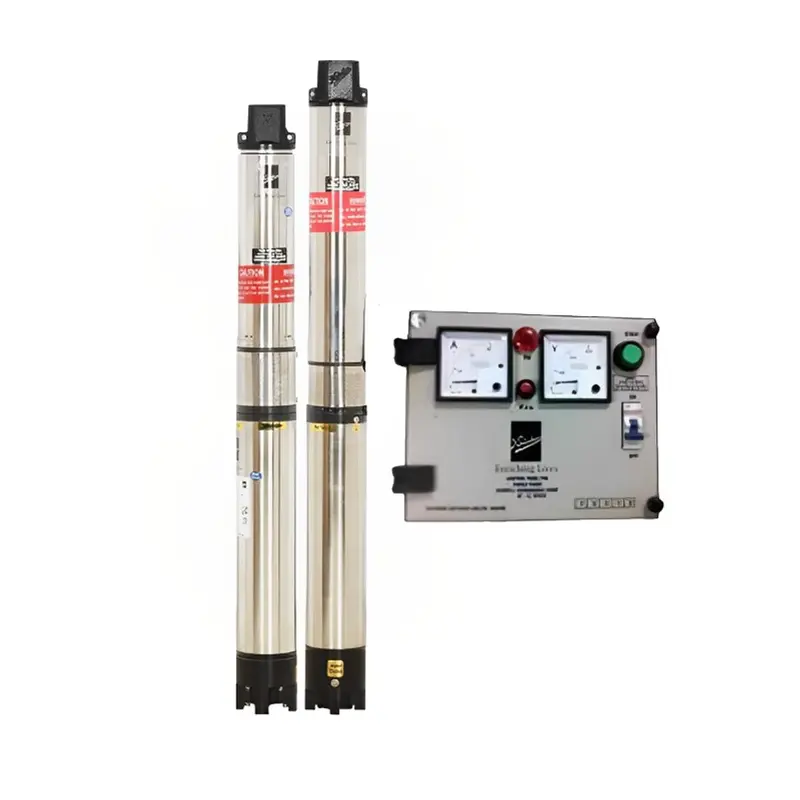

Kirloskar 2 HP 16 Stage 4 inch 1Phase Water Filled Submersible Pump With CP, 407ft Head-1 Year Warranty (NEO 60-2016-CP)

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

Short Description

Kirloskar 2.0 HP (1.5 kW) Borewell Submersible Pump

124 meters Head Range

105 LPM Discharge Rate

1 Year Warranty

Country of origin: India

Description

Kirloskar 2 HP 16 Stage 4 inch 1Phase Water Filled Submersible Pump With CP, 407ft Head-1 Year Warranty (NEO 60-2016-CP)

Description :

• A pump that can be completely submerged in water is a submersible pump, often known as an electric submersible pump. The pump's body and motor are tightly connected and hermetically sealed. Water is forced to the surface by a submersible pump, which transforms rotational energy into kinetic energy and pressure energy.

Features :

• Wide Voltage Range Operability : The voltage range is 180 - 240 Volts. Protects the motor from burning due to lower/higher voltage
• High Efficiency and Energy-saving Design : Higher output, lesser power consumption
• Dynamically Balanced Rotating Parts : Resulting in lesser vibrations and longer trouble-free operation
• Longer and Trouble-Free Life : High-grade engineering materials like Graded Cast Iron Components, Stainless Steel Shaft, Noryl Impellers, Bronze Bushes, Heavy duty Carbon + SS Thrust Plate, and 99.9 % pure Copper Winding Wires for longer and trouble-free life.
• Advanced Water Cooled Motors Designs : The motor is filled with potable water, protects from overheating, and facilitates smoother and trouble-free operation for the years.
• Sand Fighter Designs : Innovative Sand Fighter Designs restricts the entry of sand in motors, protect the pump and motor bushes to perform well in sandy borewells, and increase the pump set life.
• CED - Cathodic Electro Deposition Coating : Better resistance against corrosion
• Nationwide Service Network : Easy availability of spares and prompt after-sales services through nationwide company Authorised Service Centers

Specifications :

• Model No. : NEO 60-2016-CP
• Product Type : Borewell Submersible Pump
• Brand : Kirloskar
• Voltage : 180 - 240 Volts, 50 Hz, AC Power Supply
• Electricity Connection : Single Phase
• Motor Power : 1.50 kW
• Rated Current : 15 Amp
• Cooling Type : Water Filled
• Insulation : Class B
• Protection : IP 68
• No. of Stages : 16
• Outlet Size : 32 mm
• Borewell Size : 100 mm (4 inch)
• Max. Head : 407 Feet (124 meters)

• Max. Discharge Rate : 105 LPM (6300 LPH)
• Winding Material : Copper

Material Of Construction :

• Pump Housing : Stainless Steel
• Pump Shaft : Stainless Steel
• Motor Housing : Stainless Steel
• Motor Shaft : Stainless Steel
• Thrust Bearing : Carbon + Stainless Steel
• Motor/Pump Bushes : Gun Metal
• Impeller : Noryl
• Diffuser : Noryl
• NRV : Cast Iron
• Suction : Cast Iron

Applications :

• Domestic and community water supply
• Rural water supply
• Gardening and small farm irrigation
• Construction site
• Water supplies for high rise building

Warranty :

• 1 Year on site Warranty

Specifications

 :

• Brand: Kirloskar
• Power : 2 hp
• Weight (Approx.) : 28 kg
• Flow Rate : 105 lpm
• Head : 124 meter
