Brand: Giga Watts
Solar T2 1 Pair MC4 Connector 2 to 1 Branch Connector 2 in 1 out Wire Connector
SKU: TB-SO-33433
₹435 (Including GST)
MRP : ₹650
Get extra ₹7 Discount (On Checkout)
Delivery By: May 29 - May 31
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
High Grade Quality
Solar Panel Connector
Solar Panel Connector
Country of origin: India
Description

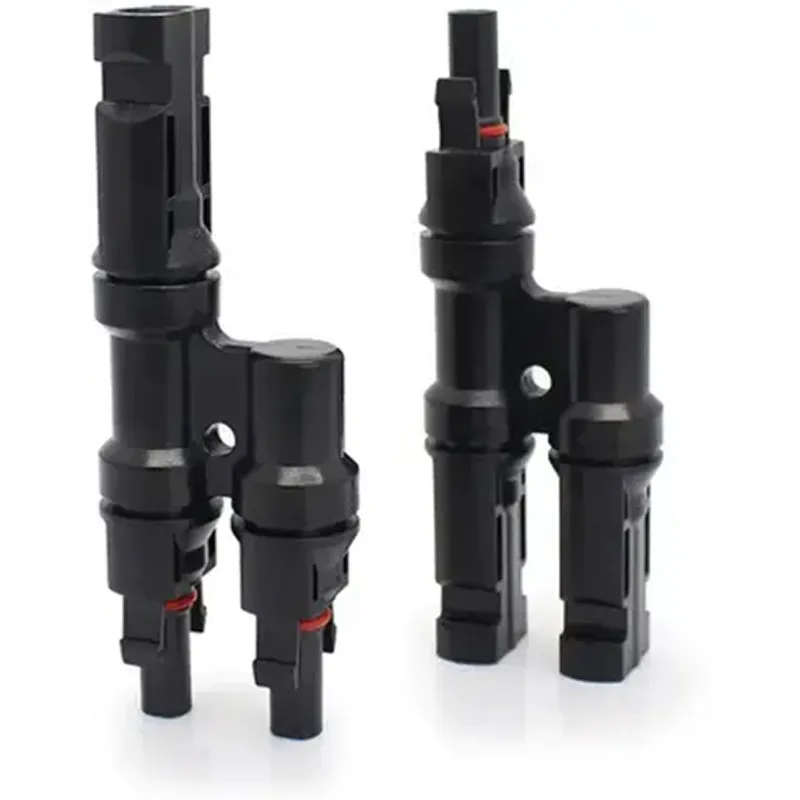

Pair of MC4 Branch Connectors: Provides a quick and easy parallel wiring solution for solar panels.
Load capability with big current and high voltage.
Resistance of extra high low temperature and fireproof
Waterproof and dustproof, rapid and reliable, easy to use.
Connection of cable adopts compaction and tightening ring manner. Fixation of male and female joint with stable self locking.
Load capability with big current and high voltage.
Resistance of extra high low temperature and fireproof
Waterproof and dustproof, rapid and reliable, easy to use.
Connection of cable adopts compaction and tightening ring manner. Fixation of male and female joint with stable self locking.
Features
:- The built-in lock makes the connector more stable and secure. The self-locking mechanism keeps the male and female connectors tightly connected to each other for proper operations.
- These IP67-rated connectors are waterproof and dust free. The waterproof ring on the connection is ideal for keeping water and dust out and preventing corrosion.
Specification
:- Brand: Giga Watts
- Weight (Approx.) : 504 gm
- Flame Class : UL94-V0
- Max. Rated Voltage : 1500V DC
- Rated Current : 30 Amps
- Contact Material : Copper with Tin Plated
- Insulation Material : PPO + PA
- Tested Voltage : 6KV (50Hz, 1Min)
- Contact Resistance : ≤3mΩ
- Protection Degree : IP67 (Waterproof)
- Suitable For : Parallel Connection of 2 Solar Panels
- Temperature Range : -40 ℃ ~ +85 ℃
