Brand: Generic (Imported)

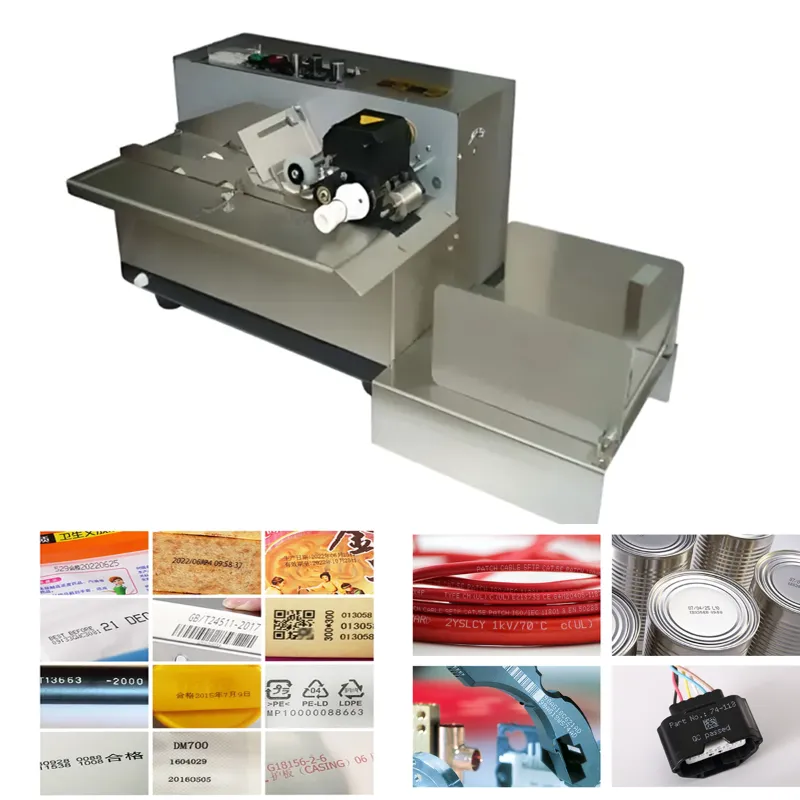

Automatic Stainless Steel Batch Coding Machine, 100 prints/min , 220 V
SKU: SI-SB-19864
₹45000 (Including GST)
Get extra ₹675 Discount (On Checkout)
Delivery By: May 28 - May 30
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Batch Coding Machine
Stainless Steel Material
100pcs/min Printing Speed
Country of origin: China
Description
This is a versatile printing device that allows for marking colors on various substrates such as glass, plastics, metal, boxes, and more. It offers high-resolution printing capabilities for alphanumeric text, barcodes, logos, date/time codes, batch codes, serial numbers, counters, variable data, and more.
Features
:- Requires minimum energy for the smooth and efficient operation.
- Optimum operational efficiency and longer operational life.
- Designed with high precision and are easy to handle.
- Rugged design with user-friendly operation.
- The easily removable ink system is totally enclosed to ensure minimum ink evaporation and dust contamination.
Specification
:- Brand: Generic (Imported)
- Weight (Approx.) : 23 kg
- Material : Stainless Steel 304
- Power Source : Electric
- Power Consumption : 180 Watt
- Power : 220 V
- Frequency : 50 Hz
- Printing Speed : 100 pcs/min.
- Dimensions (L x W x H) : 46 x 44 x 30 cm
Applications
:- Food & Beverage Industry : These machines are extensively used in the food industry to mark products such as food pouches, baked goods, cereals, beverages, candy, etc .
- Pharmaceutical Industry :These machines are critical in the pharmaceutical sector for printing batch numbers, expiration dates, and other regulatory information on drug packaging .
- Cosmetics and Personal Care : These machines are also used in the cosmetics and personal care industry to mark products with essential information like manufacturing dates, ingredients lists, and batch codes .
- Electronics Industry : In the electronics sector, these machines play a vital role in marking components such as wires, cables, pipes, electrical parts with serial numbers or other identification codes.
Usage
:1. Setup the Machine :
- Place the machine on a stable surface.
- Connect it to a power source (220V, 50Hz).
- Ensure that the dry ink roll is properly installed.
2. Adjust Print Settings :
- Set the desired printing speed (up to 100 pieces per minute).
- Adjust the print position using the machine’s controls.
3. Prepare Materials :
- Ensure that the materials you want to print on (e.g., plastic bags, paper) are within the size.
4. Load Objects :
- Feed the objects into the machine’s feeding area, ensuring they are aligned correctly for printing.
5. Start Printing :
- Activate the machine using its control panel.
- Monitor the printing process for any issues such as misalignment or ink flow problems.
6. Post-Printing Handling :
- Once printed, allow items to dry if necessary before handling.
- Collect printed items from the output area.
Maintenance :
Regularly check and replace dry ink rolls as needed.
Clean the printing head and other components according to manufacturer guidelines.
