Brand: Generic (Imported)

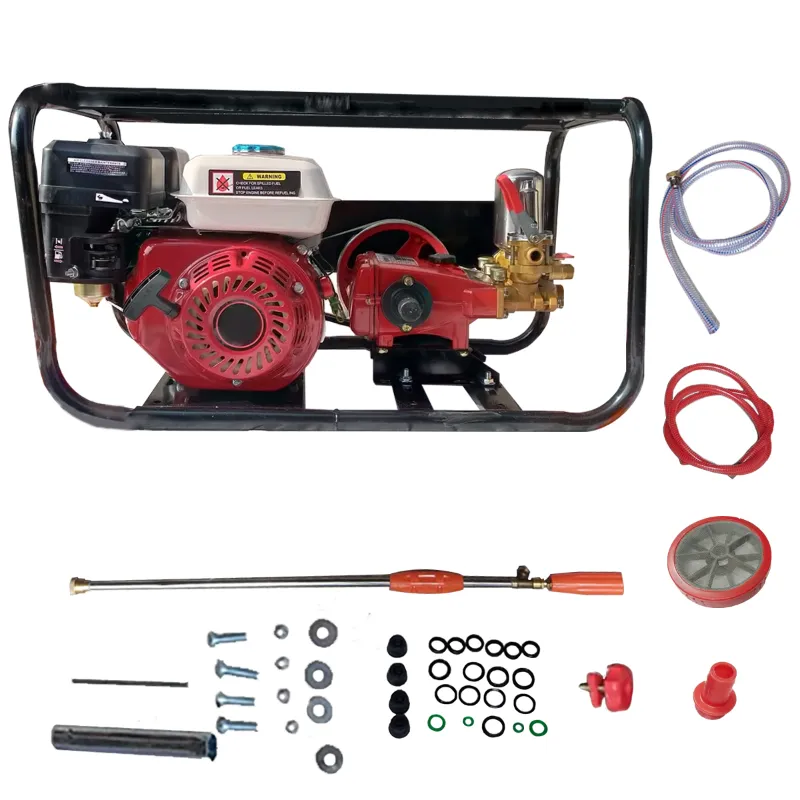

Heavy Duty Triple Piston HTP 30 Pump Set with 6.5HP Petrol Engine
SKU: DK-GF-2122
₹13200 (Including GST)
MRP : ₹17500
Get extra ₹198 Discount (On Checkout)
Delivery By: May 21 - May 23
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Triple Piston Pump Set HTP 30 with 6.5 HP Petrol Engine
Suction Volume 30-40 L/min
Fuel Consumption 700 ml/hour (Engine)Suitable for Truck, Cars, bikes etc. washing, Agriculture spray etc.
Country of origin: China
Description
Introducing the HTP Pump with Engine from Toolsvilla, a powerful and reliable solution for all your industrial pumping needs. Engineered with precision, this robust pump boasts a high-performance engine that delivers unparalleled efficiency and durability. Designed to handle a wide range of applications, from water transfer to agricultural irrigation, washing you car, washing your lawns, etc. this pump is the ultimate workhorse for your heavy-duty tasks. With its intuitive controls and easy maintenance, the HTP Pump with Engine ensures seamless operation and effortless integration into your workflow. Experience the pinnacle of performance and trust in your equipment with this top-of-the-line product from Toolsvilla.
Specification
:- Brand: Generic (Imported)
- Weight (Approx.) : 27 kg
Pump Specification :
- Speed : 800 - 1200 RPM
- Delivery Output : 25-30 LPM
- Normal Working Pressure (PSI) : 300-400
- Body Material : Aluminum Die Cast
- Pump Material : Brass Coated Cast Iron
- Pulley Size : 7 Inch (17.7 cm)
- No. of Cock (Outlet Connections) : 2
- Suitable Hose Pipe Diameter : 8.5 MM & 10 MM
- No. of Piston : 3
- Pump Oil Capacity : 750 ml (20W40)
- Max Hose Pipe Can Be Connect : 100 meter
Engine Specification :
- Rated Power : 6.5 HP
- Displacement : 196 cc
- Engine Type : 4 - Stroke, Air cooled
- Fuel Used : Petrol
- Fuel Tank : 3.6 Liter (Approx.)
- Engine Oil Capacity : 600 ML (20W40)
- Fuel Consumption : 700-900 ml/hour (Approx
Accessories
:- 1.5 Meter Suction Pipe
- 1.5 Meter Overflow Pipe
- Pully
- 2 Belt For Pully
- Tool Kit
- Filter
- Oil Seal Ring
- Spray Gun
Applications
:Recommended usage :
- Vehicles (Truck, Cars, bikes etc.) Washing.
- Agriculture spray in big farmland.
- Pressure cleaning.
Usage
:- Attach the inlet pipe, overflow pipe, and hose pipe.
- Pour fuel in the fuel tank accordingly, & Pour the engine oil in the engine oil chamber separately
- Be sure about safety precautions.
- Start the engine and do your work as per your needs.
Remember to always read the manufacturer's specific instructions and safety guidelines when working with HTP pumps. Proper care and maintenance are essential for ensuring the safe and efficient operation of these components.
