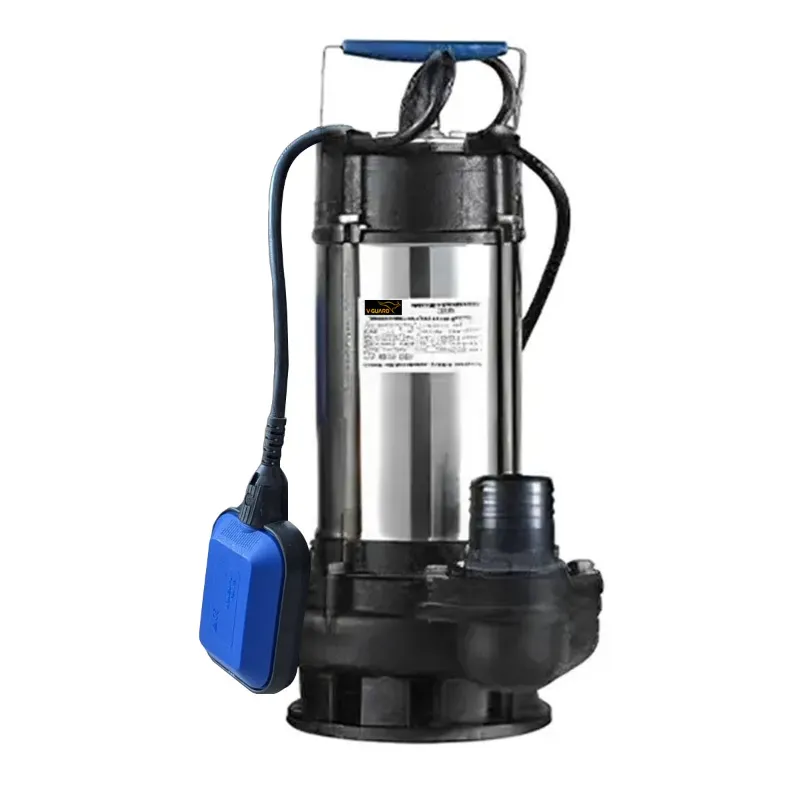

V-Guard 2 Hp Single Phase Dewatering Sewage Pump With Float Switch, 15m Max. Head, 30000LPH (VSWS-TW55US)- 1 Year Warranty

5.0 star

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

Short Description

V-Guard 2 Hp Single Dewatering Sewage Pump

15m Max. Head, 30000 LPH Max. Discharge

20mm Solid Handling Capacity

1 Year Warranty

Country of origin: India

Description

V-Guard 2 Hp Single Phase Dewatering Sewage Pump With Float Switch, 15m Max. Head, 30000LPH (VSWS-TW55US)- 1 Year Warranty

Description :

• The Sewage Submersible Pump is used for draining pits and deep roadway underpasses, as well as for dewatering basements and courtyards subject to a flooding risk or groundwater. This pump is known for its durability and high performance. The submersible pump is very compact, thus the installation process gets easy.

Features :

• Dry type submersible induction motor
• Shaft and fasteners are in stainless steel to enhance life
• Impeller and casing are coated with chemical resistance coating to improve life and performance
• Solid handling size upto 20 mm
• Cable connectors filled with resin to prevent water leakage into the motor through the cable wire
• Dual mechanical seal prevents water entry into the dry motor portion at two interfaces, one at pump portion to oil chamber and another at oil chamber to dry motor portion
• Compact in construction
• High Efficiency
• Long Durability

Specifications :

• Model No. : VSWS-TW55US
• Product Type : Dewatering Sewage Pump
• Motor Power : 1.5 kW
• Electricity Connection : Single Phase
• Body Material : SS 304
• Pipe Size : 50 mm
• Speed : 2800 RPM
• Solid Handling Size : 20 mm

• Impeller Material : CI

• Max. Head Range : 6 to 15 Meter (19 to 49 Feet)
• Discharge Range : 30000 to 12000  LPH (500 to 200 LPM)

• Insulation Class : B
• Type of Duty : S1 (Continuous)

Applications :

• Construction Sites.
• Swimming Pools.
• Food Processing Industries.
• Hotels and Restaurants.
• Paper Mills.
• Sewage Treatment Plants Sugar Factories.
• Easy Water Treatment Plant.

Warranty :

• 1 Year Warranty On Manufacturing defects.

Specifications

 :

• Brand: V-Guard
• Power : 2 hp
• Weight (Approx.) : 23.8 kg
• Flow Rate : 500 lpm
• Head : 15 meter
