Vukar 3 Hp 1Ph Fully Automatic Monoblock Pump Controller With Float Switch & Motor Safety (MOA-B) - 3 Months Warranty
SKU: TI-V3-22162
MRP : ₹12150
Offer Price : ₹5450 (Including GST)
Get extra ₹82 Discount (On Checkout)
Delivery By: Nov 17 - Nov 19
Qty:
BUY IN BULK
Easy Return & Refund
Quality Assurance
Trusted Delivery
After Sales Assistance
Buyer Protection
Short Description

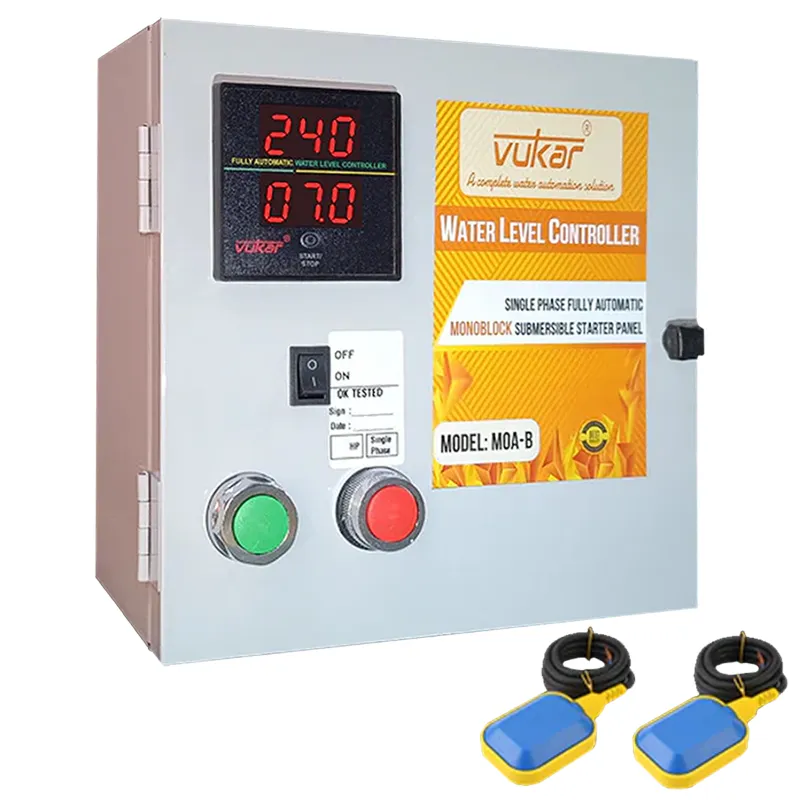

Vukar 3 Hp Single Phase Fully Automatic Monoblock/Tullu Pump Starter Panel
Including Float Switch
Dry Run & Over Load Protection
3 Months Warranty
Country of origin: India
Description
The 3 hp single phase Monoblock (Tullu) pump fully automatic starter panel is an essential component for operating monoblock pumps, commonly used in agricultural and domestic water supply systems. This starter panel is designed to control the pump efficiently while ensuring safety and reliability during operation.
Features
:
Fully Automatic Operation : Motor will turn ON and OFF as per the water level in the overhead tank. When the water gets empty in sump, the motor will automatically stop. When sump is not available, users can bypass the sump function.
Motor Overload Protection : It has inbuilt overload protection to protect the motor. Users can set the overload setting as per motor rating.
Motor Dry Run Protection : It has inbuilt motor protection device. It has dry run protection to protect the motor. Users can set the dry run setting as per motor rating.
Voltage Protection : It has an inbuilt voltage protection device. Motor will turn off when the supply voltage is not within the range of overvoltage and under voltage set by the user. It protects the motor from voltage fluctuation.
Digital Display : It has a dual display. It displays voltage, ampere, timer and fault of the motor.
Includes Cable Float Switch : It includes the cable float switch sensor as a water level sensor.
100% Safe & Shockproof : Water level sensor operates in +3V DC voltage. In case of sensor failure, there is no chance for the leakage of current. It is 100% safe to use in any water tank.
ISI Wiring : This starter panel uses the lug based ISI wiring. Ampere capacity of the wires used is 2x capacity of the rated ampere. ISI standard wires are recommended to use with the rated amperage as per HP rating of the motor. It is necessary to use the lug wiring with the power wiring for water pump application to ensure the long life of the motor.
Use of Transformer Coil : It has inbuilt heavy quality transformer coil. Transformer coil isolates the main input power to the control unit. This increases the reliability, safety and life cycle of the control unit.
Electric Contactor : Electric contactor is used to isolate the input power and motor connections. Ampere rating of the electrical point of the contactor is 2x capacity of the rated ampere.
Powder Coated Metal Enclosure : It has a shockproof heavy duty powder coated metal enclosure. Powder coated metal enclosures ensure the product should be delivered to the customer without any physical damage to the customer.
Spare Parts Availability : Each Spare part is easily available in local markets all over India. User is not dependent on a specific manufacturer in case of immediate repair of any spare parts.
100% Technical support : We offer excellent technical customer care support to our clients.
