Brand:  Kirloskar

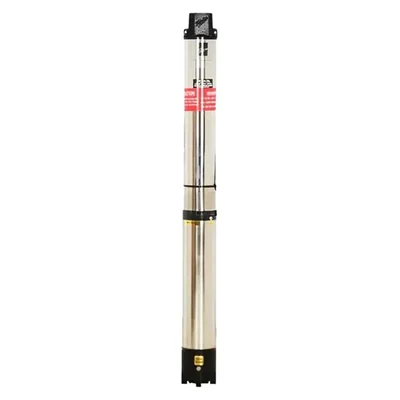

Kirloskar 1 HP 14 Stage 4 inch 3Phase Water Filled Submersible Pump, 322ft Head (KS4AN-1014) - 1 Year Warranty

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

Short Description

Kirloskar 1 HP Three Phase Borewell Submersible Pump

48 LPM Discharge Rate

98 Meters Head

4 Inch (100 mm) Boring Size

1 Year Warranty

Country of origin: India

Description

Kirloskar 1 HP 14 Stage 4 inch 3Phase Water Filled Submersible Pump, 322ft Head (KS4AN-1014) - 1 Year Warranty

Features :

• Wide Voltage Design : The motor is designed to withstand wide voltage fluctuations and reduces motor burning in low voltage.
• High efficiency and Energy Saving Design : Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings
• Dynamically Balanced Rotating Parts : Minimum vibrations protect components from damages during the operations, consistent performance as concentricity is maintained.
• Longer and Trouble Free Life : High grade engineering materials like Graded Cast Iron Components, Stainless Steel Shaft, Noryl Impellers, Bronze Bushes, Heavy duty Carbon + SS Thrust Plate, 99.9% pure Copper Rotor and Winding Wires for longer and trouble free life.
• Advanced Water Cooled Motors Designs : The motor is filled with potable water, protects from overheating and facilitates smoother and trouble free operation for the years.
• Wide Voltage Motor Designs with 100% Copper Rotor : Motors are designed with extra overload capacities, more water spaces and engineered with 100% pure Electro Grade Copper performs well in low voltage with minimum discharge drops and suitable for wide voltage applications.
• CED-Cathodic Electro Deposition : CED is the latest coating technology for corrosion resistance with uniform coating, provides 5 times more protection over conventional painting, resulting in longer life. All major Cl parts of Kirloskar pumps coming in contact with the water are CED coated.

Specifications :

• Model No. : KS4AN-1014
• Product Type : Borewell Submersible Pump
• Brand : Kirloskar
• Power Source : Corded Electric

• Wattage : 0.75 kW
• Power Supply : 415 V, 50 Hz, AC Power Supply
• Electricity Connection : Three Phase
• Motor Type : Water Filled

• Boring Size : 4 Inch (100 mm)
• Max. Head : 322 Feet (98 Meters)
• Outlet Pipe Size : 32 mm
• No. of Stages : 14
• Current Rating : 3 Amp
• Max. Discharge Rate : 48 LPM (2880 LPH)

• Winding Material : Copper

Materials of Construction :

• Pump Housing : Stainless Steel
• Pump Shaft : Stainless Steel
• Motor Housing : Stainless Steel
• Motor Shaft : Stainless Steel
• Thrust Bearing : Carbon + Stainless Steel
• Motor/Pump Bushes : Gun Metal
• Impeller : Noryl
• Diffuser : Noryl
• NRV : Cast Iron
• Suction : Cast Iron

Applications :

• Domestic and community water supply
• Rural water supply
• Gardening and small farm irrigation
• Construction site
• Water supplies for high rise building

Warranty :

• One Year Onsite Warranty.

Specifications

 :

• Brand: Kirloskar
• Power : 1 hp
• Weight (Approx.) : 24 kg
• Flow Rate : 48 lpm
• Head : 98 meter
