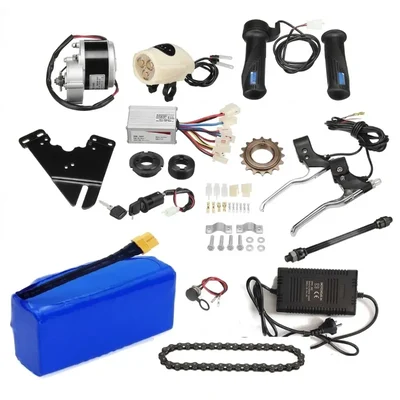

NAKS 24V 350W DIY Electric Bicycle Full Conversion Kit with 24V 12Ah Lithium Battery and Charger

• Motor Voltage & Output: 24 Volt DC / 350 Watt
• Motor Speed (After Reduction): 300 RPM
• Rated Motor Current: 15.2 Amps
• Gear Reduction Ratio: 1:9.78
• Torque Rating: 9 N.m Continuous (Stall Torque: 45 N.m)
• Sprocket Profile: 9-Tooth 1/8" Standard Bicycle Chain
• Controller Max Peak Current: 20 Amps (15 Amps Continuous)
• Under-Voltage Cutoff Protection: 20.5 Volts
• Battery Configuration: 24V 12Ah Lithium-Ion Loose Pouch Pack (12-Month Warranty)
• Charger Rating: 24V 1.6Amp Smart Charger with Warranty (12-Month Warranty)

Features

• The upgraded 350W High-Torque Gear Motor is ideal for cargo loads and steep inclines since it has an inbuilt 1:9.78 reduction gearbox that provides 9 N.m of continuous torque.
• Premium Loose Pouch Lithium Battery: Comes with a 12-month structural guarantee and a high-density, long-lasting 24V 12Ah loose pouch lithium battery pack.
• Smart Overload Protection Controller: This 350W motor controller safeguards the battery arrangement with a 20.5V under-voltage cutoff and controls up to 20A peak current.
• Safety Auto-Cut Braking Levers: To guarantee short, secure stopping distances, upgraded mechanical levers instantly separate electrical current to the motor when braking.
• Dual-Purpose Headlight & Horn: An audible traffic safety horn and a low-amp LED road lighting light are integrated into a single handlebar-mounted modular housing.

Applications

• Converting regular mechanical road bicycles, mountain bikes, or commuter cycles into high-power hybrid e-bikes is known as standard bicycle electrification.
• Commercial Local Logistics: Providing the energy for courier networks, food supply chains, and e-commerce distribution platforms' heavy local cargo delivery cycles.
• Personalized lightweight mobility gadgets, local children's scooters, electric drift trikes, and sophisticated student engineering models are examples of custom DIY EV prototype projects.
• Rugged Terrain Commuting: Helping riders navigate everyday long-distance interstate transits, steep hills, and rural farm routes.

Usage

• Securely align and bolt the heavy-duty mounting plate onto the bicycle frame stay alignment tabs using the provided hardware.
• Anchor the 24V 350W gear reduction motor firmly to the bracket plate and loop the provided high-tensile drive chain over the 9-tooth sprocket and the rear adapter-mounted freewheel.
• Replace your standard handlebar grips and brake levers with the high-response twist throttle set and the electrical power-cut safety brake handles.
• Feed the multi-pin terminal plug clusters from your 24V battery pouch, motor, throttle handle, key switch, and headlight directly into their marked controller slots.
• Slide the 24V 12Ah pouch lithium battery into a protective frame bag or enclosure, secure all wiring harnesses safely away from moving parts, initialize the key ignition lock, and turn the throttle to ride.
