Brand: Generic ( Made in India )

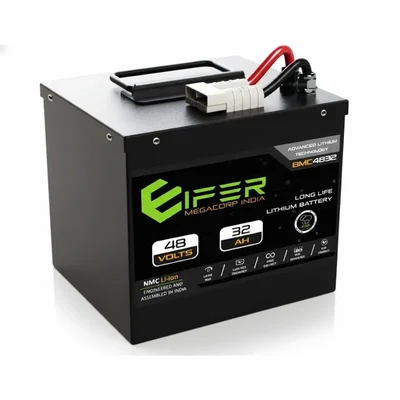

Eiferzen Energy 48V 32Ah 1.54kWh Li-Ion Battery EMC 4832
SKU: TI-EE-62526
Delivery By: Jan 26 - Jan 28
MRP : ₹26000 ₹21525
17% OFF!
Delivery By: Jan 26 - Jan 28 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹21525 (Including GST)
MRP : ₹26000
17% OFF!
Get Extra ₹323 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
High-performance 48V Li-Ion battery pack for EV mobility, featuring 32Ah capacity, 1.54kWh energy, IP65 rating, and comprehensive BMS protections for reliable operation.
Country of origin: India
Specifications
- Brand: Generic ( Made in India )
- Nominal Rated Voltage: 48V DC
- Brand/Trade Name: Eiferzen Energy
- Rated Capacity: 32Ah
- Energy Rated: 1.54 kWh
- Battery Operating Voltage Range: 53.95V ~ 37.7V ±0.5V
- Recommended Charging Voltage (CV): 54.6V ±0.5V
- Charging Mode: CC-CV
- Charge Current: 0.3C (9.6A)
- Continuous Discharge Current: 0.8C (25.6A)
- Peak Discharge Current: 2C (64A for 10 sec)
- Low Voltage Disconnection: 36.4V ±1.0V
- High Voltage Disconnection: 55.25V ±1.0V
- Over-Charge Protection: Yes
- Over-Discharge Protection: Yes
- Over-Temperature Protection: Yes
- Over-Current Protection: Yes
- Short-Circuit Protection: Yes
- Audio and Visual Alarm: Yes (Optional)
- High Temperature Disconnection: 60°C
- Balancing Mode: Active/Passive (Optional)
- Paralleling Module: Optional
- Module Dimensions (LxBxH): 198 x 175 x 180 mm ±2mm
- IP Rating: IP65 (IP67 Optional)
- Operating Temperature: Charging: 0°C ~ +55°C, Discharging:- -20°C ~ +60°C
- Storage Temperature: 0°C ~ +35°C
- Communication: Bluetooth, CAN, UART/RS485, IoT (all Optional)
Description
The Eiferzen Energy EMC 4832 is a robust Li-Ion battery designed specifically for EV mobility applications. It delivers 48V nominal voltage with 32Ah rated capacity and 1.54kWh energy, supported by advanced BMS protections including over-charge, over-discharge, over-temperature, over-current, and short-circuit safeguards. With an IP65/IP67 optional rating, wide operating temperature range, and optional communication interfaces like Bluetooth, CAN, UART/RS485, and IoT, this battery ensures safe, efficient power delivery. Mechanical design features compact dimensions of 198x175x180 mm, making it ideal for integration into electric vehicles and mobility solutions. Active/passive balancing and paralleling options enhance longevity and scalability.
Features
:- Complete BMS safeguards include short-circuit, high-temperature disconnection, over-charge, over-discharge, over-temperature, and over-current.
- For real-time warnings, audio and visual alarms are optional.
- For dust and water resistance in challenging conditions, IP65 is the usual certification (IP67 is optional).
- Extensive operating conditions: 0°C to +55°C for charging, -20°C to +60°C for discharging, and 0°C to +35°C for storage.
- Flexible communication options include IoT, Bluetooth, CAN, and UART/RS485 (all optional).
- For increased battery life and versatility, there is an active/passive balancing mode with optional paralleling.
- High discharge capacity: peak 2C (64A for 10 seconds), continuous 0.8C (25.6A).
- For best results, use the CC-CV charging mode with 54.6V CV and 0.3C current.
- To avoid damage, disconnect at low voltage (36.4V ±1.0V) and high voltage (55.25V ±1.0V).
Applications
:- EVs, or electric cars.
- Mobility options (carts, scooters, and e-bikes).
- EV equipment used in industry.
- Portable power systems that need to be safe and have a high discharge.
Usage
:- Install in the EV chassis while making sure it is securely mounted and has adequate airflow.
- For BMS monitoring, connect via CAN, UART, or RS485 (optional IoT/Bluetooth for app control).
- In an ambient between 0°C and +55°C, charge utilizing CC-CV mode at 0.3C current up to 54.6V.
- Discharge constantly at 0.8C or temporarily at a peak of 2C; keep an eye out for safeguards using the BMS.
- To preserve capacity, store between 0°C and +35°C; stay away from extremely high or low temperatures.
