Brand: Generic ( Made in India )

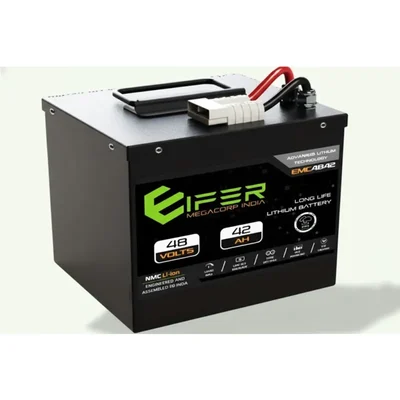

Eiferzen Energy 48V 42Ah 2.01kWh Li-Ion Battery EMC 4842
SKU: TI-EE-62529
Delivery By: Jan 26 - Jan 28
MRP : ₹33000 ₹26791
19% OFF!
Delivery By: Jan 26 - Jan 28 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹26791 (Including GST)
MRP : ₹33000
19% OFF!
Get Extra ₹402 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Powerful 48V Li-Ion battery for EV mobility with 42Ah capacity, 2.01kWh energy, IP65 rating, and full BMS protections for demanding applications.
Country of origin: India
Specifications
- Brand: Generic ( Made in India )
- Nominal Rated Voltage: 48V DC
- Brand/Trade Name: Eiferzen Energy
- Rated Capacity: 42Ah
- Energy Rated: 2.01 kWh
- Weight: 20Kg
- Battery Operating Voltage Range: 53.95V ~ 37.7V ±0.5V
- Recommended Charging Voltage (CV): 54.6V ±0.5V
- Charging Mode: CC-CV
- Charge Current: 0.3C (12.6A)
- Continuous Discharge Current: 0.8C (33.6A)
- Peak Discharge Current: 2C (84A for 10 sec)
- Low Voltage Disconnection: 36.4V ±1.0V
- High Voltage Disconnection: 55.25V ±1.0V
- Over-Charge Protection: Yes
- Over-Discharge Protection: Yes
- Over-Temperature Protection: Yes
- Over-Current Protection: Yes
- Short-Circuit Protection: Yes
- Audio and Visual Alarm: Yes (Optional)
- High Temperature Disconnection: 60°C
- Balancing Mode: Active/Passive (Optional)
- Paralleling Module: Optional
- Module Dimensions (LxBxH): 225 x 198 x 180 mm ±2mm
- IP Rating: IP65 (IP67 Optional)
- Operating Temperature: Charging: 0°C ~ +55°C, Discharging: -20°C ~ +60°C
- Storage Temperature: 0°C ~ +35°C
- Communication: Bluetooth, CAN, UART/RS485, IoT (all Optional)
Description
The Eiferzen Energy EMC 4842 delivers superior performance for EV mobility with a 48V nominal voltage, 42Ah rated capacity, and 2.01kWh energy storage.Strong BMS with optional audio/visual alarms, over-charge, over-discharge, over-temperature, over-current, and short-circuit safeguards. It provides active/passive balancing with paralleling, optional connectivity via Bluetooth, CAN, UART/RS485, or IoT, and IP65/IP67 certifications for environmental robustness. It is perfect for electric vehicles that need dependable, scalable power because it is small (225x198x180 mm) and can handle CC-CV charging at 0.3C up to 54.6V and high discharges (0.8C continuous, 2C peak).
Features
:- Over-charge, over-discharge, over-temperature, over-current, short circuit, and high-temperature (60°C) disconnection are all included in the whole BMS suite.
- For instantaneous safety alerts, audio and visual alarms are optional.
- IP65 rating standard to prevent water and dust intrusion (IP67 optional).
- Wide temperature range: 0°C to +55°C for charging, -20°C to +60°C for discharging, and 0°C to +35°C for storage.
- Bluetooth, CAN, UART/RS485, and IoT for monitoring and control are examples of optional communications.
- For maximum efficiency and growth, active/passive balancing and optional paralleling are used.
- Effective CC-CV charging at 54.6V CV and 0.3C (12.6A).
- Strong discharge: 2C peak (84A for 10s), 0.8C constant (33.6A).
- Accurate safeguards: disconnect low voltage at 36.4V ±1.0V and high voltage at 55.25V ±1.0V.
Applications
:- EVs, or electric cars.
- E-bikes and e-scooters.
- Forklifts and electric carts.
- Wheelchairs and mobility aids.
- Equipment for industrial logistics.
Usage
:- With sufficient cooling, mount firmly in the EV frame.
- For real-time BMS data, pair with optional Bluetooth, CAN, and IoT.
- Charge between 0°C and +55°C using CC-CV at 0.3C to 54.6V.
- Protections are automatically handled by the BMS; operate discharges up to 0.8C continuous or 2C peak.
- To maintain capacity, store between 0°C and +35°C.
