Brand: Generic ( Made in India )

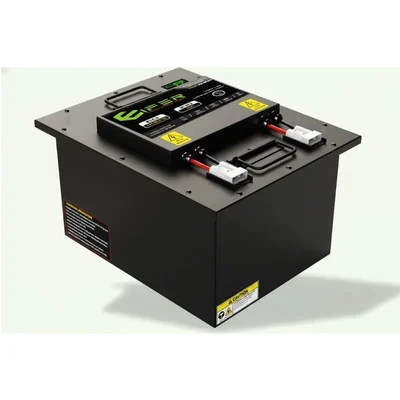

Eiferzen Energy 60.8V 100Ah 6.08kWh Li-Ion Battery for EV Mobility EMC 60100
SKU: TI-EE-62563
Delivery By: Jan 26 - Jan 28
MRP : ₹105000 ₹86786
17% OFF!
Delivery By: Jan 26 - Jan 28 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹86786 (Including GST)
MRP : ₹105000
17% OFF!
Get Extra ₹1,302 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
High-capacity 60.8V 100Ah Li-Ion battery pack delivering 6.08kWh energy with IP65/IP67 protection and advanced BMS safeguards. Features CC-CV charging, 0.8C continuous/2C peak discharge, and optional Bluetooth/CAN/IoT connectivity for heavy-duty EV applications.
Country of origin: India
Specifications
- Brand: Generic ( Made in India )
- Nominal Rated Voltage: 60.8V DC
- Rated Capacity: 100Ah
- Energy Rated: 6.08kWh
- Weight: 60Kg
- Battery Operating Voltage Range: 69.35V ~ 56V ± 0.5V
- Recommended Charging Voltage (CV): 65.55V ± 0.5V
- Charging Mode: CC-CV
- Charge Current: 0.3C
- Continuous Discharge Current: 0.8C
- Peak Discharge Current: 2C (for 10 sec)
- Low Voltage Disconnection: 50.35V ± 1.0V
- High Voltage Disconnection: 69.35V ± 1.0V
- Over-Charge Protection: Yes
- Over-Discharge Protection: Yes
- Over-Temperature Protection: Yes (high-temp disconnection at 60°C)
- Over-Current Protection: Yes
- Short-Circuit Protection: Yes
- Audio/Visual Alarm: Yes (optional)
- Balancing Mode: Active/Passive (optional)
- Paralleling Module: Optional
- IP Rating: IP65 (IP67 optional)
- Operating Temperature: Charging: 0°C ~ +55°C; Discharging: -20°C ~ +60°C
- Storage Temperature: 0°C ~ +35°C
- Module Dimensions (±2mm): 470 x 370 x 240 mm (L x B x H)
- Communication: Bluetooth, CAN, UART/RS485, IoT (all optional)
Description
A sturdy 470x370x240mm Li-Ion module designed for demanding EV mobility applications, the Eiferzen Energy EMC 60100 offers significant 6.08kWh energy storage. Complete BMS protections include precise low/high voltage cutoffs, automatic disconnection at 60°C, over-charge, over-discharge, over-current, short circuit, and over-temperature scenarios. Wide operating temperatures (-20°C to +60°C discharge) and various communications (Bluetooth, CAN, UART/RS485, IoT) allow for real-time monitoring, while IP65/IP67 (optional) rating guarantees durability in challenging settings. supports paralleling and active/passive balancing for scalable high-power EV solutions, such as commercial cars and e-rickshaws.
Features
:- Full-spectrum BMS: over-charge, over-discharge, over-current, short-circuit, over-temperature protection (60°C cutoff), low/high voltage disconnection, optional audio/visual alarms.
- IP65 standard protection against water and dust intrusion (IP67 optional).
- Broad temperature performance: charging 0°C to +55°C, discharging -20°C to +60°C.
- Communication flexibility: optional Bluetooth, CAN, UART/RS485, IoT for diagnostics and integration.
- Active/passive balancing (optional) with paralleling capability for system expansion.
- CC-CV charging protocol at 0.3C rate, 0.8C continuous discharge, 2C peak for 10 seconds.
- Stable voltage profile: nominal 60.8V, operating range 56-69.35V.
- Storage optimized at 0°C to +35°C for extended cycle life.
Applications
:- Three-wheelers and commercial e-rickshaws.
- cargo bikes and heavy electric scooters.
- vehicles used for industrial material handling.
- EV delivery trucks and logistics carts.
- bespoke EV conversions with high power.
Usage
:- For BMS connection with the car ECU, connect via CAN/RS485.
- Charge at 0.3C to 65.55V (0-55°C ambient) using the CC-CV technique.
- BMS initiates 50.35V low-voltage protection while operating between 56 and 69.35V.
- For 10-second bursts, use the 2C peak discharge capacity.
- Store between 0 and 35°C; turn on Bluetooth and IoT to receive status updates.
